789012 - Gravely 72" Deck Roller Kit for Pro-Master 400 Mower ROLLER KIT Parts Diagram

72" Deck Roller Kit for Pro-Master 400 Mower

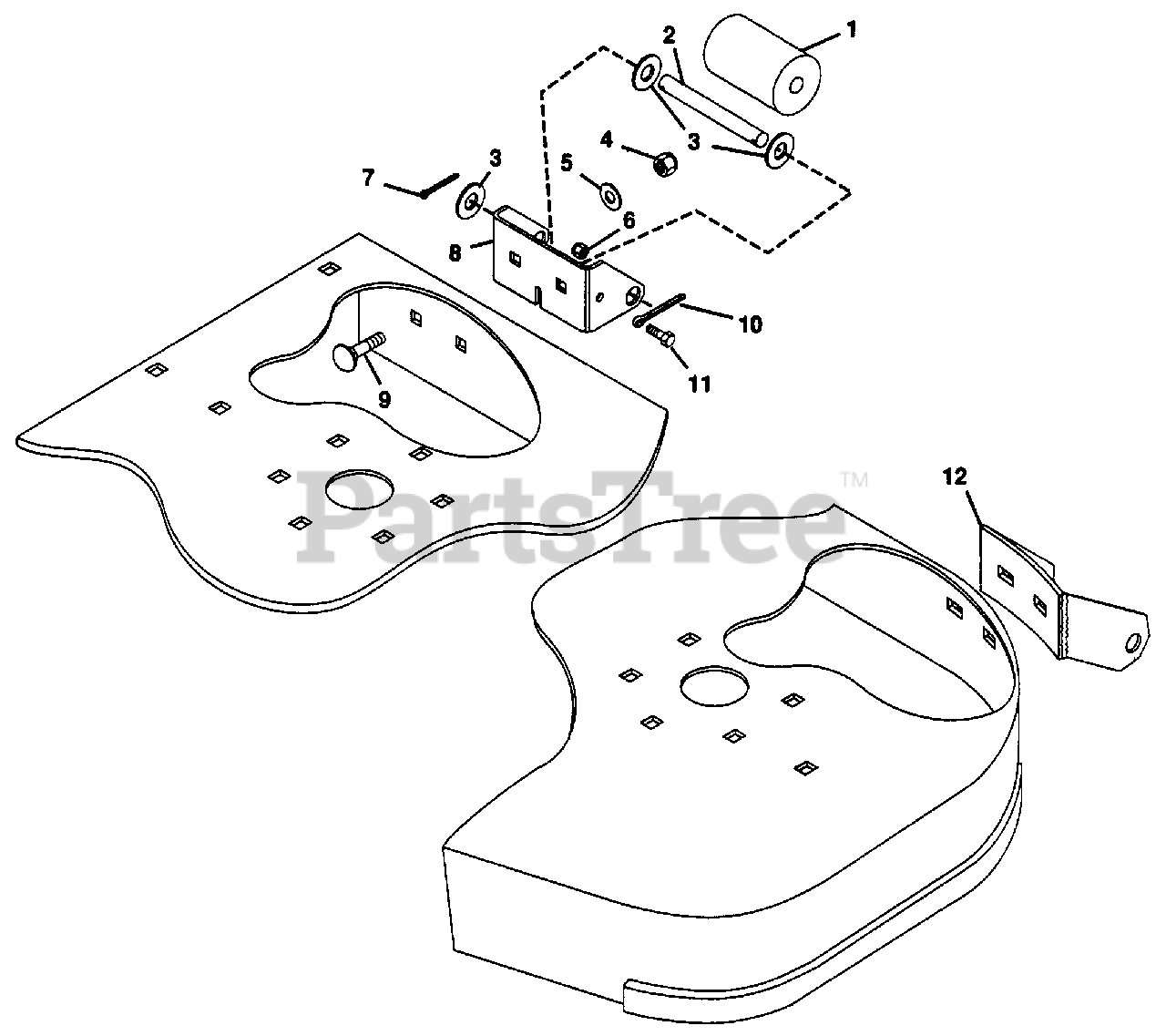

ROLLER KIT Parts Diagram

  • Title
1

Gravely 015351

Roller, Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

7

Gravely 179128

Pin, Cotter .25x1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

8

Gravely 045210

Bracket, Roller
(Superseded to 08966853)

$

$

Not available

9

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

10

Gravely 103422

Pin, Cotter .25x2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 050536

Weldment, Roller Bracket
(Superseded to 08998000)

$113.99

$

Usually ships in 4-12 days

0
