789001 - Gravely Front-Mount for 2-Wheel Tractor FRONT MOUNT KIT Parts Diagram

Front-Mount for 2-Wheel Tractor

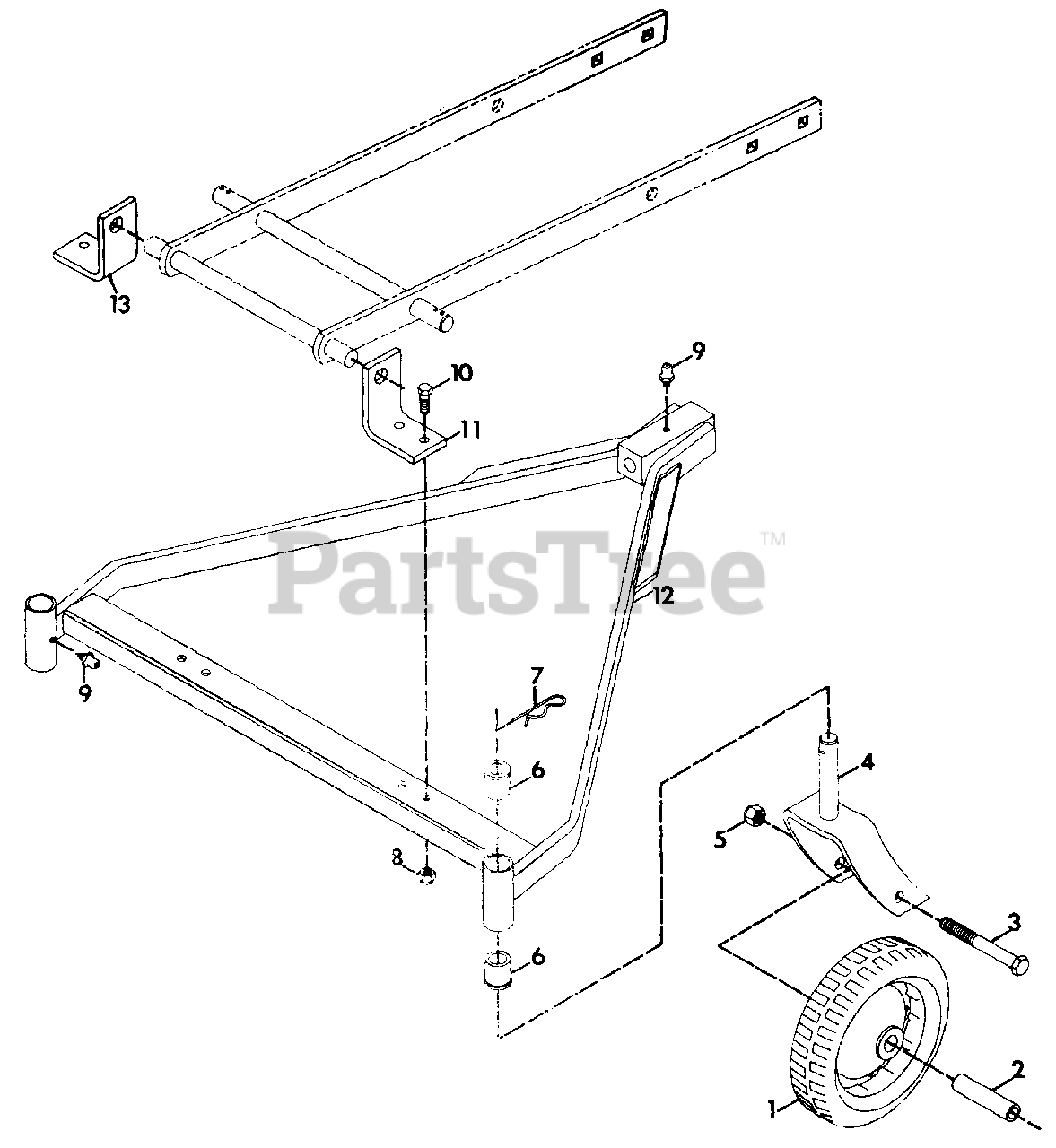

FRONT MOUNT KIT Parts Diagram

  • Title

1

Gravely 015788

WHEEL, GAUGE

$

$

Not available

2

Gravely 011950

BUSHING, WHEEL; .520
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 433163

BOLT, HEX 1/2-13X5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 011948

WELDMENT, CASTER FORK
(Superseded to 08586600)

$

$

Not available

5

Gravely 435507

NUT, LOCK 1/2-13 WASHER
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 011947

BUSHING .725X1.065
(Superseded to 20085700)

$

$

Not available

7

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

8

Gravely 456004

NUT, LOCK 3/8-16 WASHER INSERT
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

10

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 040839

SUPPORT, PIVOT ARM L.H.
(Superseded to 08544800)

$

$

Not available

12

Gravely 011939

ASSEMBLY, FRAME WELDMENT
(Superseded to 08586000)

$

$

Not available

13

Gravely 040838

SUPPORT, PIVOT ARM R.H.
(Superseded to 08544700)

$

$

Not available
