788045 - Gravely 32" Pro Series Deck Striper Kit Lawn Striper Kit Parts Diagram

32" Pro Series Deck Striper Kit

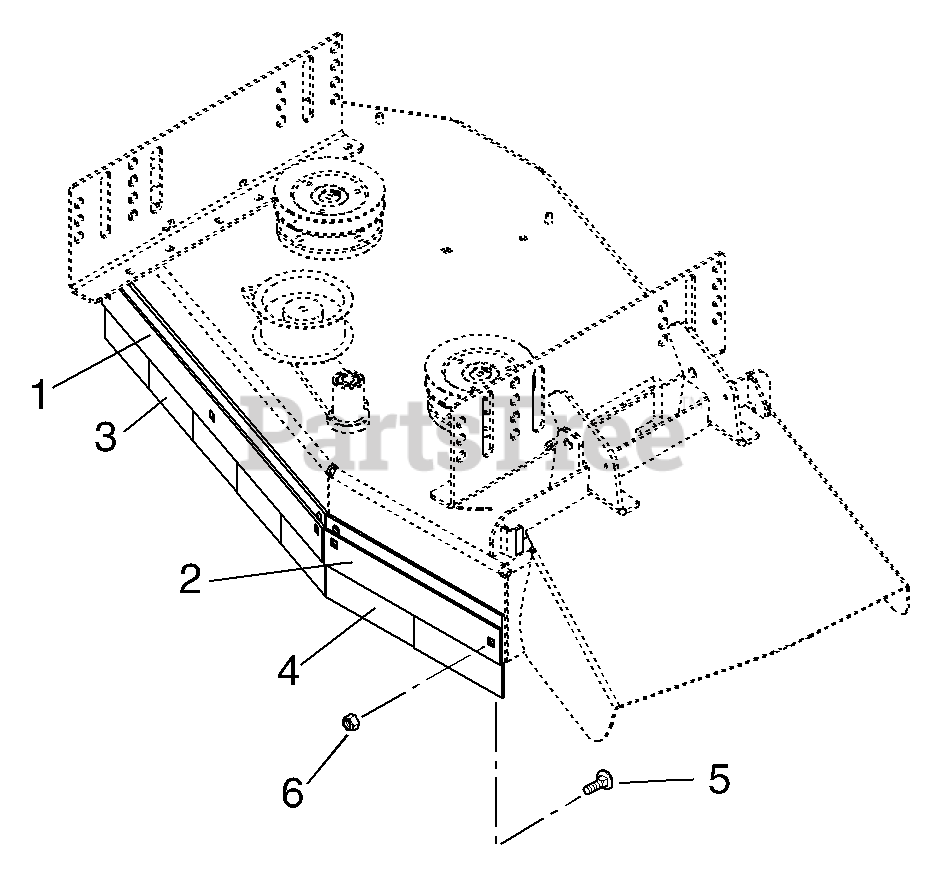

Lawn Striper Kit Parts Diagram

  • Title

1

Gravely 04917151

Left Striper Mount Strip - 36"

Note: Kit No. 788036

$13.99

$

Usually ships in 4-12 days

0

1

Gravely 04929851

Left Striper Mount Strip - 32"

Note: Kit No. 788045

$

$

Not available

2

Gravely 04917251

Right Striper Mount Strip - 36"

Note: Kit No. 788036

$

$

Not available

2

Gravely 04929951

Right Striper Mount Strip - 32"

Note: Kit No. 788045

$

$

Not available

3

Gravely 04917300

Left Rubber Skirt - 36"

Note: Kit No. 788036

$

$

Not available

3

Gravely 04930000

Left Rubber Skirt - 32"

Note: Kit No. 788045

$

$

Not available

4

Gravely 04917400

Right Rubber Skirt - 36"

Note: Kit No. 788036

$

$

Not available

4

Gravely 04930100

Right Rubber Skirt - 32"

Note: Kit No. 788045

$

$

Not available

5

Gravely 06223600

3/8" x 1" Round Head, Square Neck Bolt
(Superseded to 06200313)

Note: Kit No. All

$2.49

$

In Stock, Qty 10

0

6

Gravely 06535800

3/8" Nylon Locknut
(Superseded to 06500831)

Note: Kit No. All

$2.49

$

Usually ships in 4-12 days

0

Gravely 78803600

Lawn Striper Kit

Note: For 988100, 988101, 105 (36-Inch Mower deck)

$

$

Not available

Gravely 78804500

Lawn Striper Kit

Note: For 988101 (32-Inch Mower Deck)

$

$

Not available
