788032 - Gravely 50" Pro Series Deck Mulching Kit Mulching Kit Parts Diagram

50" Pro Series Deck Mulching Kit

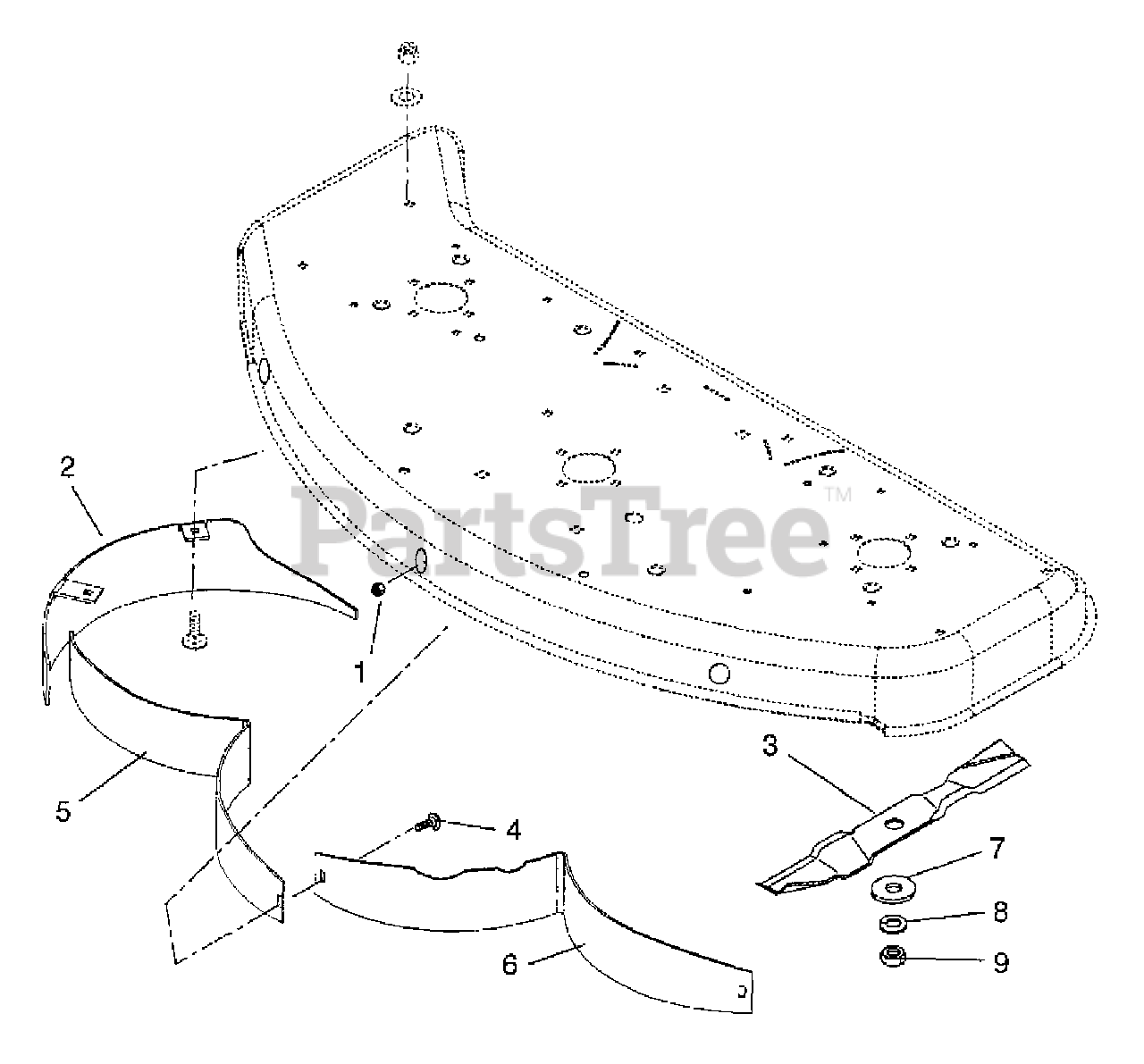

Mulching Kit Parts Diagram

  • Title
1

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 09256551

Weldment-Chute Baffle

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 08866800

Blade-Mulching 50" Mower

$33.99

$

In Stock, Qty 20+

0

4

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 09256351

Baffle, Mulching-RH

$

$

Not available

6

Gravely 09256451

Baffle, Mulching-LH

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 06435200

Washer-Flat-Steel .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06309500

Washer-Locking .62 x .156

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

Gravely 78803200

Mulching Kit

Note: For 50" Mowers

$

$

Not available
