788015 - Gravely Pro Series Handle Bar PRO HANDLE KIT Parts Diagram

Pro Series Handle Bar

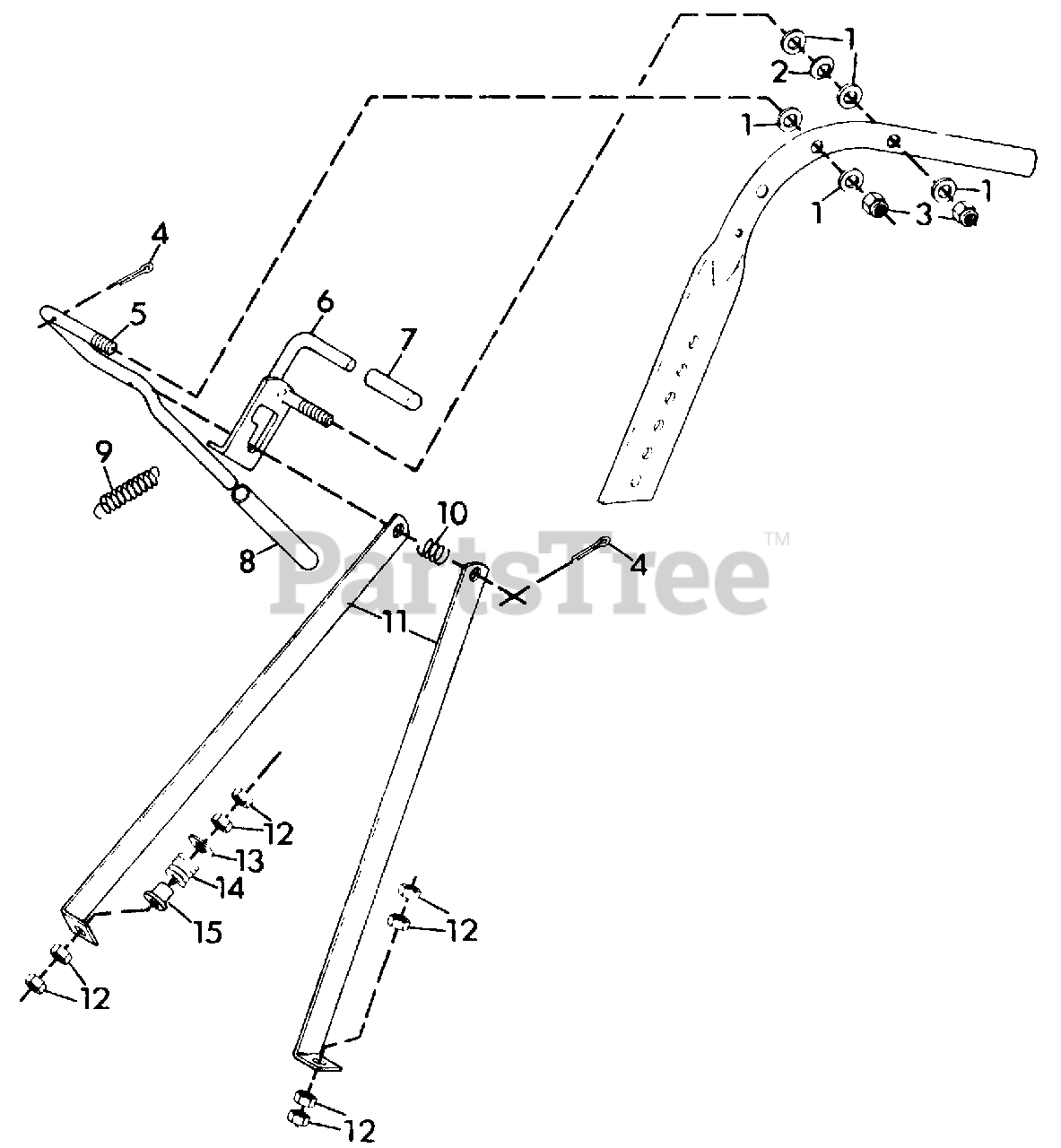

PRO HANDLE KIT Parts Diagram

  • Title

1

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

2

Gravely 041623

WASHER, SPRING .375 I.D.
(Superseded to 06433000)

$

$

Not available

3

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

5

Gravely 042984

LEVER, STEERING
(Superseded to 08820351)

$

$

Not available

6

Gravely 042990

LATCH, STEERING LEVER
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

7

Gravely 043192

TIP, BRAKE LOCK LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 043197

GRIP, HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 043446

SPRING, EXTENSION
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

10

Gravely 043193

SPRING, COMPRESSION
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

11

Gravely 042992

STRAP, CLUTCH-BRAKE
(Superseded to 08820800)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

13

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

15

Gravely 041988

BUSHING, INTERLOCK LEVER
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0
