788006 - Gravely 40" Deck 2-Blade Mulching Kit MULCHING KIT Parts Diagram

40" Deck 2-Blade Mulching Kit

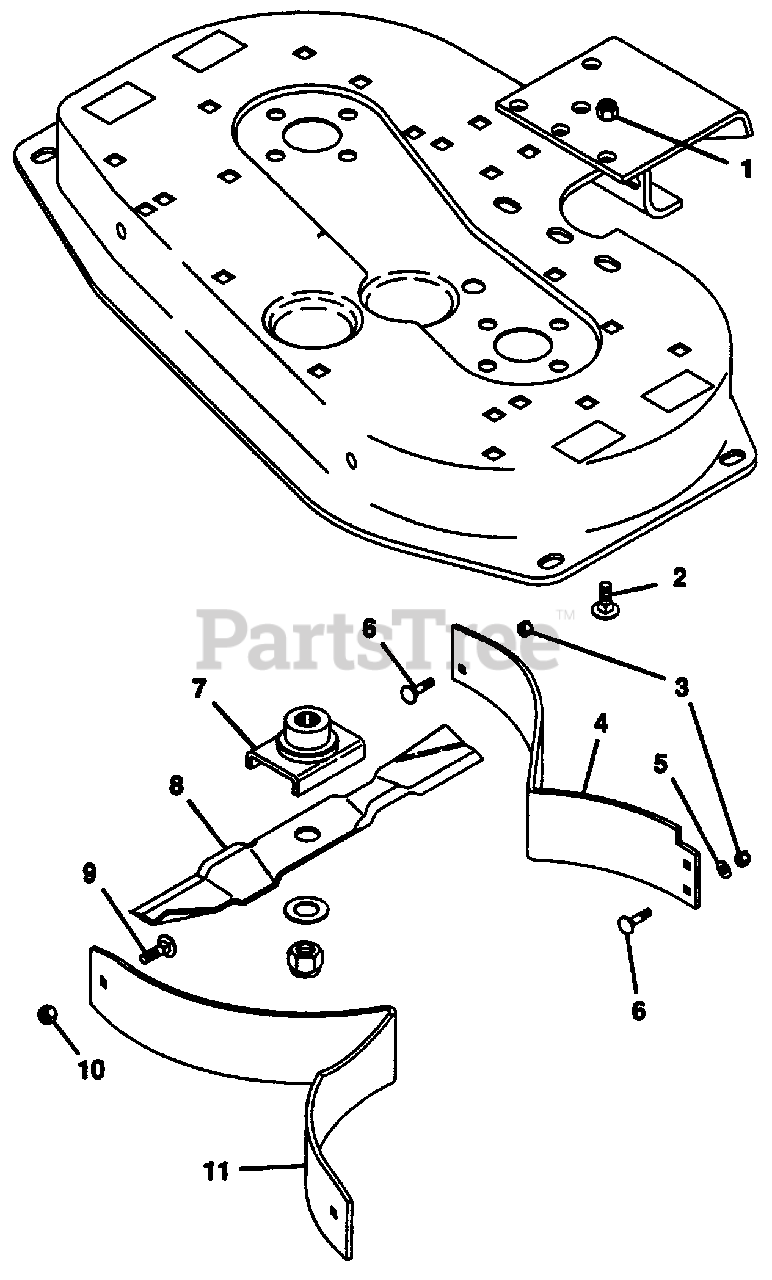

MULCHING KIT Parts Diagram

  • Title

1

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 126227

Bolt, Carriage 3/8-16x.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 052981

Baffle, Mulching
(Superseded to 08853600)

$

$

Not available

5

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 126203

Bolt, 1/4-20x.625 Rd Hd Sq Nk
(Superseded to 06213800)

$

$

Not available

7

Gravely 047684

Weldment, Blade Cradle
(Superseded to 08798700)

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 052929

Blade, Mulching 40" Mower
(Superseded to 08866900)

$37.99

$

In Stock, Qty 20+

0

9

Gravely 126211

Bolt, 5/16-18x.625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 052982

Baffle, Front Mulching
(Superseded to 08853700)

$

$

Not available
