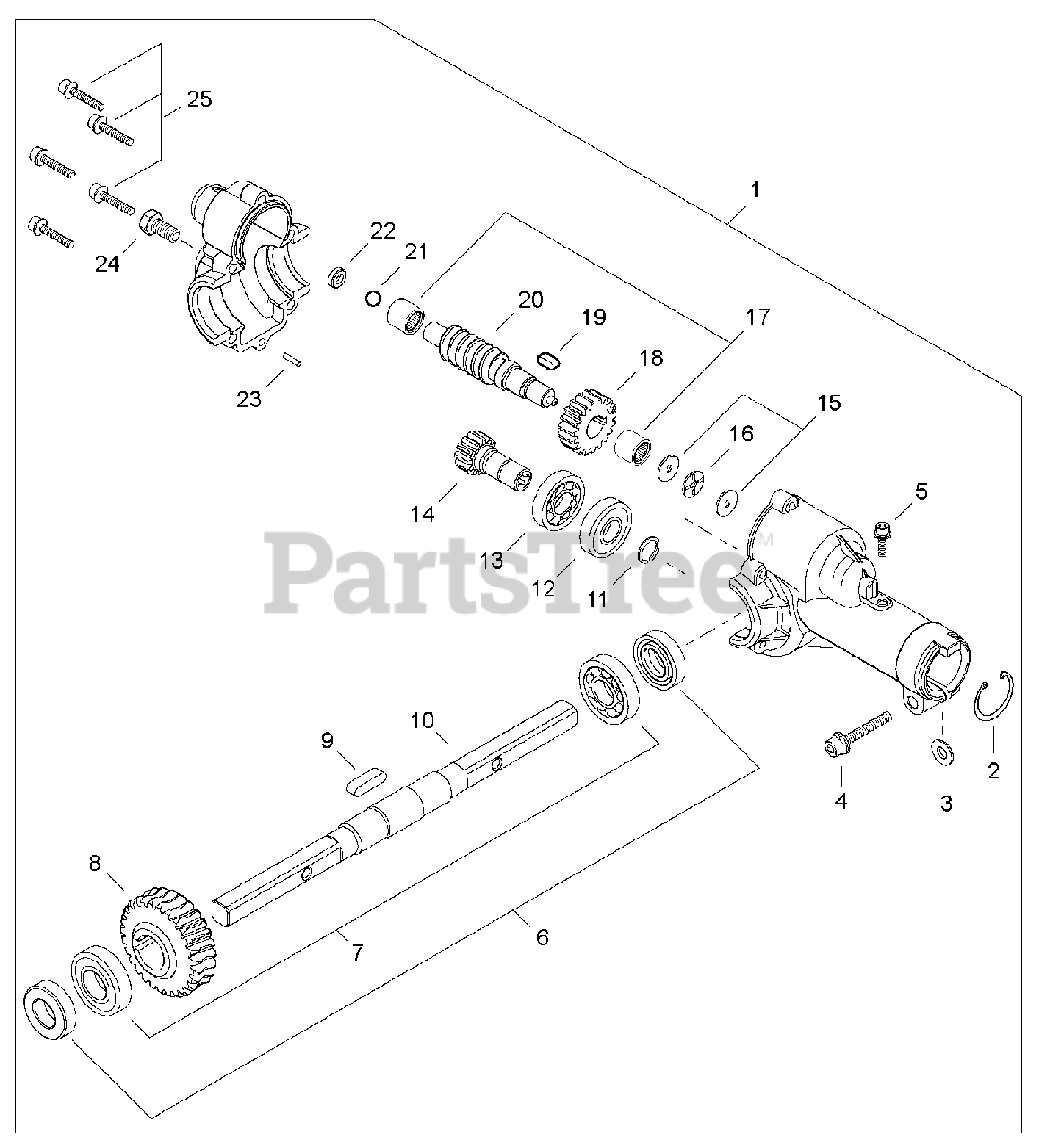

78704 - Shindaiwa Multipurpose Lawn Edger Tool Attachment Gear Case Parts Diagram

Multipurpose Lawn Edger Tool Attachment

Gear Case Parts Diagram

  • Title
1

Echo C051000291

GEAR CASE ASSY

$258.99

$

Usually ships in 2-4 days

0

2

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

$3.99

$

Usually ships in 2-4 days

0

4

Echo 90016206030

SCREW - 6X30

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

6

Echo 60541611050

SEAL, OIL - 17

$6.49

$

In Stock, only 4 left!

0

7

Echo 9400306003

BEARING, BALL - 6003

$22.99

$

Usually ships in 2-4 days

0

8

Echo V653000000

WHEEL, WORM

$156.99

$

Usually ships in 2-4 days

0

$7.49

$

Usually ships in 2-4 days

0

10

Echo C534000480

GEAR - SHAFT

$36.99

$

Usually ships in 2-4 days

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

12

Echo 90085706901

BEARING, BALL - 6901

$33.99

$

In Stock, only 1 left!

0

13

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

14

Echo V650000370

GEAR - SPUR

$18.99

$

Usually ships in 2-4 days

0

15

$0.99

$

Usually ships in 2-4 days

0

16

Echo V590000010

BEARING, THRUST

$1.99

$

Usually ships in 2-4 days

0

17

Echo V555000060

BEARING, NEEDLE

$3.99

$

Usually ships in 2-4 days

0

18

Echo V650000380

GEAR - SPUR

$18.99

$

Usually ships in 2-4 days

0

$6.49

$

Usually ships in 2-4 days

0

20

Echo V652000060

GEAR - WORM

$39.99

$

Usually ships in 2-4 days

0

21

$0.99

$

Usually ships in 2-4 days

0

22

$1.49

$

Usually ships in 2-4 days

0

23

Echo V622000030

PIN - LOCATING

$1.49

$

Usually ships in 2-4 days

0

24

Echo 90010008010

BOLT - 8X10
(Superseded to Discontinued)

$

$

Not available

25

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0
