787037 - Gravely Wheel Brake Kit for 800 & 8000 4-Wheel Tractor WHEEL BRAKE KIT Parts Diagram

Wheel Brake Kit for 800 & 8000 4-Wheel Tractor

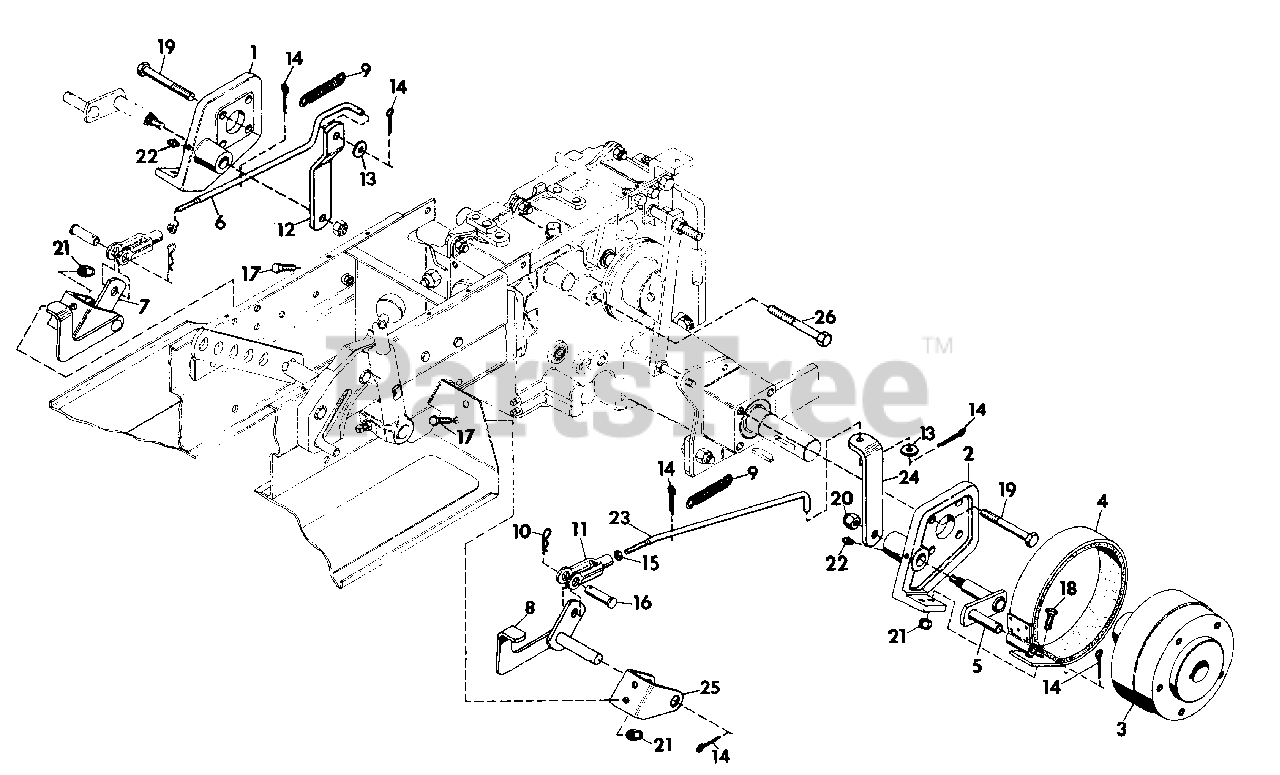

WHEEL BRAKE KIT Parts Diagram

  • Title
1

Gravely 020182

CASTING, BRAKE R.H.
(Superseded to 08717500)

$

$

Not available

2

Gravely 020183

CASTING, BRAKE L.H.
(Superseded to 08717600)

$

$

Not available

3

Gravely 020184

DRUM, BRAKE
(Superseded to 08717700)

$

$

Not available

4

Gravely 020185

ASSEMBLY, BRAKE BAND
(Superseded to 08717800)

$

$

Not available

5

Gravely 020188

WELDMENT, PIN-SHAFT
(Superseded to 08718100)

$

$

Not available

6

Gravely 020193

ROD, BRAKE
(Superseded to 08598200)

$

$

Not available

7

Gravely 020207

WELDMENT, BRAKE PEDAL R.H.
(Superseded to 08718600)

$

$

Not available

8

Gravely 035019

WELDMENT, BRAKE PEDAL L.H.
(Superseded to 08736800)

$

$

Not available

9

Gravely 034241

SPRING
(Superseded to 08331800)

$

$

Not available

10

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 020192

LINK
(Superseded to 08718500)

$

$

Not available

13

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 121222

PIN, COTTER .09X.62
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

15

Gravely 124925

NUT, JAM 3/8-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 138078

PIN, CLEVIS .395X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

17

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

19

Gravely 180194

BOLT, HEX 1/2-13X4.00
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 192481

NUT, LOCK 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

21

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

23

Gravely 035018

ROD, BRAKE R.H.
(Superseded to 08654600)

$

$

Not available

24

Gravely 035023

LINK
(Superseded to 08737100)

$

$

Not available

25

Gravely 020209

BRACKET, BRAKE PEDAL
(Superseded to 08718700)

$

$

Not available

26

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0
