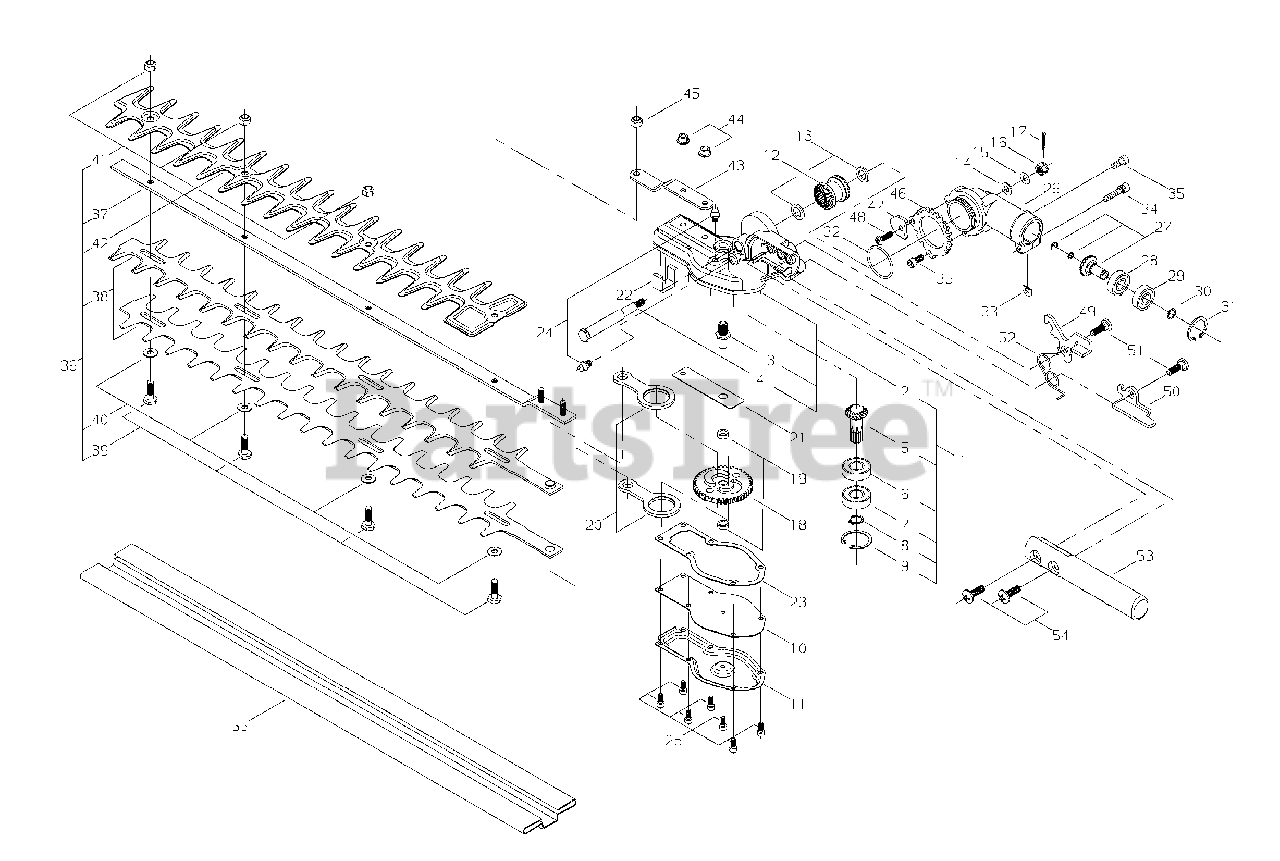

78703 (99922201087) - Shindaiwa Short Shaft Articulating Hedge Trimmer Attachment Gear Case / Cutters Parts Diagram

Short Shaft Articulating Hedge Trimmer Attachment

Gear Case / Cutters Parts Diagram

  • Title

1

Echo 63840-61011

GEAR CASE ASSY
(Superseded to P021028790)

$96.99

$

In Stock, only 1 left!

0

2

Echo 63840-61111

CASE, GEAR - LOWER
(Superseded to P021028810)

$75.99

$

In Stock, only 1 left!

0

3

Echo 68120-61320

PIPE, MAIN
(Superseded to C534000660)

$8.49

$

In Stock, only 1 left!

0

4

Echo 63840-61320

SHAFT
(Superseded to C534000670)

$17.99

$

Usually ships in 2-4 days

0

5

Echo 63840-61330

GEAR - SHAFT
(Superseded to V655000060)

$66.99

$

In Stock, only 1 left!

0

6

Echo 37074-63310

BEARING, BALL - 6001
(Superseded to 90080006001)

$9.49

$

In Stock, Qty 6

0

7

Echo 02002-06001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

$11.99

$

In Stock, Qty 5

0

8

Echo 02430-12100

RING, RETAINING - 12
(Superseded to 9242312000)

$0.99

$

In Stock, only 2 left!

0

9

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 15

0

10

Echo 68120-61120

PLATE, GEAR CASE
(Superseded to C542000040)

$7.49

$

Usually ships in 2-4 days

0

11

Echo 63840-61340

CASE, GEAR - LOWER
(Superseded to C539000080)

$8.99

$

Usually ships in 2-4 days

0

12

Echo 63840-61350

GEAR SET - BEVEL
(Superseded to P021034470)

$66.99

$

In Stock, only 1 left!

0

13

Echo 15401-11010

COLLAR
(Superseded to V307000250)

$1.49

$

In Stock, only 1 left!

0

14

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

15

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 7

0

16

Echo 63840-61370

NUT - CASTLE
(Superseded to V264000170)

$1.99

$

In Stock, only 3 left!

0

17

Echo 02421-16150

PIN, SPLIT
(Superseded to 9300216150)

$0.99

$

In Stock, Qty 7

0

18

Echo 68120-61130

CAM GEAR
(Superseded to V650000530)

$29.99

$

Usually ships in 2-4 days

0

19

Echo 15401-10025

SPACER
(Superseded to V355000440)

$2.49

$

In Stock, Qty 5

0

20

Echo 68120-61170

ROD, CONNECTING
(Superseded to C532000220)

$10.99

$

In Stock, Qty 15

0

21

Echo 68120-61331

PLATE, GUIDE
(Superseded to V150002460)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 68120-61340

SEAL, FELT
(Superseded to V541000220)

$1.99

$

In Stock, only 2 left!

0

23

Echo 68120-61351

GASKET
(Superseded to V110000140)

$1.99

$

In Stock, Qty 20+

0

24

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, Qty 11

0

25

Echo 01020-04100

SCREW - 4X10
(Superseded to 90010504010)

$1.49

$

In Stock, Qty 20+

0

26

Echo 63840-63310

CASE, GEAR - UPPER
(Superseded to C531000700)

$46.99

$

Usually ships in 2-4 days

0

27

Echo 63840-63320

GEAR - BEVEL
(Superseded to V000000090)

$66.99

$

In Stock, only 1 left!

0

28

Echo 02000-00609

BEARING, BALL - 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

29

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$15.99

$

In Stock, Qty 5

0

30

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

31

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

32

Echo 02304-03150

O-RING
(Superseded to 9250703150)

$1.99

$

In Stock, only 3 left!

0

33

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

34

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

35

Echo 01020-05120

SCREW - 5X12
(Superseded to 90010505012)

$1.49

$

In Stock, Qty 20+

0

36

Echo 68142-62010

BLADE KIT - 22" (55cm)
(Superseded to X041000310)

$236.99

$

In Stock, Qty 8

0

37

Echo 18501-50000

GUIDE BAR - 22" (55cm)
(Superseded to X425000780)

$32.99

$

In Stock, only 1 left!

0

38

Echo 18500-50102

BLADE KIT - 22" (55cm) CHROME
(Superseded to X411001150)

$62.99

$

In Stock, Qty 18

0

39

Echo 20870-62110

BOLT - 6X20
(Superseded to V204000570)

$1.99

$

In Stock, Qty 8

0

40

Echo 20870-62131

WASHER - 6
(Superseded to V304000240)

$0.99

$

In Stock, Qty 20+

0

41

Echo 22011-97840

LOCKNUT - 6
(Superseded to V264000150)

$1.49

$

In Stock, Qty 20+

0

42

Echo 68122-62320

GUARD, CUTTER BLADE
(Superseded to X431000080)

$17.99

$

In Stock, Qty 5

0

43

Echo 68120-62331

BRACKET, CUTTER
(Superseded to V152002390)

$6.99

$

In Stock, only 2 left!

0

44

Echo 11526-05212

NUT - 5 -- FLANGE
(Superseded to V263000330)

$0.99

$

In Stock, Qty 17

0

45

Echo 22011-97840

LOCKNUT - 6
(Superseded to V264000150)

$1.49

$

In Stock, Qty 20+

0

46

Echo 63840-66310

PLATE, ADJUST
(Superseded to C465000020)

$30.99

$

Usually ships in 2-4 days

0

47

Echo 68142-66310

STOPPER PLATE
(Superseded to C629000040)

$1.99

$

Usually ships in 2-4 days

0

48

Echo 68142-66321

SCREW - 5X16
(Superseded to V254000100)

$1.99

$

Usually ships in 2-4 days

0

49

Echo 63840-66320

LEVER, LOCK
(Superseded to C661000070)

$8.99

$

In Stock, Qty 7

0

50

Echo 63840-66330

LEVER, LOCK
(Superseded to C661000080)

$6.49

$

Usually ships in 2-4 days

0

51

Echo 22106-71441

SCREW
(Superseded to V204000580)

$1.99

$

In Stock, Qty 11

0

52

Echo 17520-18601

SPRING
(Superseded to V452000710)

$2.49

$

Usually ships in 2-4 days

0

53

Echo 63840-66350

LEVER, ADJUSTMENT
(Superseded to C403000480)

$5.49

$

In Stock, only 4 left!

0

54

Echo 01215-06208

SCREW - 6X20
(Superseded to 9146306020)

$0.99

$

Usually ships in 2-4 days

0

55

Echo 19601-01506

COVER, BLADE
(Superseded to X495000410)

$10.99

$

In Stock, only 1 left!

0
