787025 - Gravely 60" Deck for Gear Drive Pro-Master Mower MOWER DECK Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

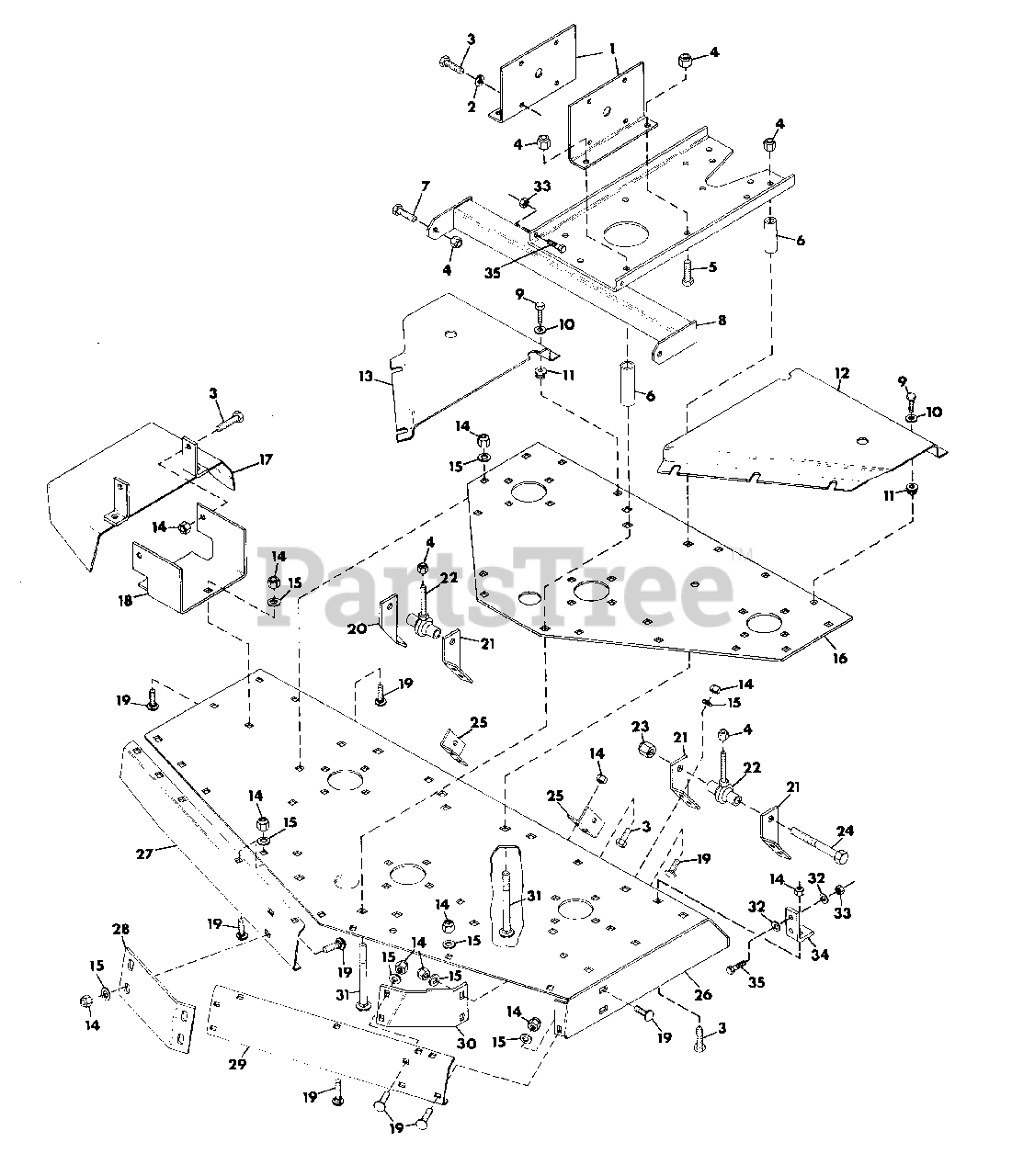

MOWER DECK Parts Diagram

  • Title
1

Gravely 035493

PLATE, GEARBOX SUPPORT
(Superseded to 08918300)

$

$

Not available

2

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$

$

Not available

7

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

8

Gravely 038593

WELDMENT, SUPPORT PLATE
(Superseded to 21246300)

$

$

Not available

9

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

10

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 031385

COVER, BELT L.H.
(Superseded to 08749200)

$

$

Not available

13

Gravely 031384

COVER, BELT R.H.
(Superseded to 08749100)

$96.99

$

Usually ships in 4-12 days

0

14

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 031342

PLATE, DECK SUPPORT
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

17

Gravely 035668

WELDMENT, DISCHARGE CHUTE
(Superseded to 09090300)

$

$

Not available

18

Gravely 035667

BRACKET, DISCHARGE
(Superseded to 08738100)

$

$

Not available

19

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

20

Gravely 035542

PLATE, REAR ADJUSTMENT
(Superseded to 08920800)

$

$

Not available

21

Gravely 035541

PLATE, REAR ADJUSTMENT
(Superseded to 08920700)

$

$

Not available

22

Gravely 035543

ROD, END
(Superseded to 08920953)

$62.99

$

Usually ships in 4-12 days

0

23

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

24

Gravely 271777

BOLT, HEX 3/4-10X3.50
(Superseded to 05971500)

$

$

Not available

25

Gravely 037039

BRACKET, LIFT
(Superseded to 08924800)

$

$

Not available

26

Gravely 035551

WELDMENT, 60" OFC
(Superseded to 21254700)

$

$

Not available

27

Gravely 035666

PLATE, FRONT COVER
(Superseded to 21242100)

$199.99

$

In Stock, only 1 left!

0

28

Gravely 035648

BRACKET, FRONT DECK
(Superseded to 20626400)

$

$

Not available

29

Gravely 031344

PLATE, FRONT COVER L.H.
(Superseded to 21210800)

$199.99

$

In Stock, only 1 left!

0

30

Gravely 031354

BAFFLE, FRONT
(Superseded to 08905253)

$

$

Not available

31

Gravely 126808

BOLT, 1/2-13X3.75 RD HD SQ NK
(Superseded to 06218600)

$7.99

$

Usually ships in 4-12 days

0

32

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 124824

NUT, JAM 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 035685

BRACKET, LIFT PIVOT
(Superseded to 08923800)

$

$

Not available

35

Gravely 180081

BOLT, 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 038056

DECAL, AMERICA
(Superseded to 20644900)

$

$

Not available

NS

Gravely 038424

DECALS, PRO MASTER-60 MOWER
(Superseded to 20648500)

$

$

Not available

NS

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0
