787023 - Gravely Weight Rack for 4-Wheel Tractor WEIGHT RACK KIT Parts Diagram

Weight Rack for 4-Wheel Tractor

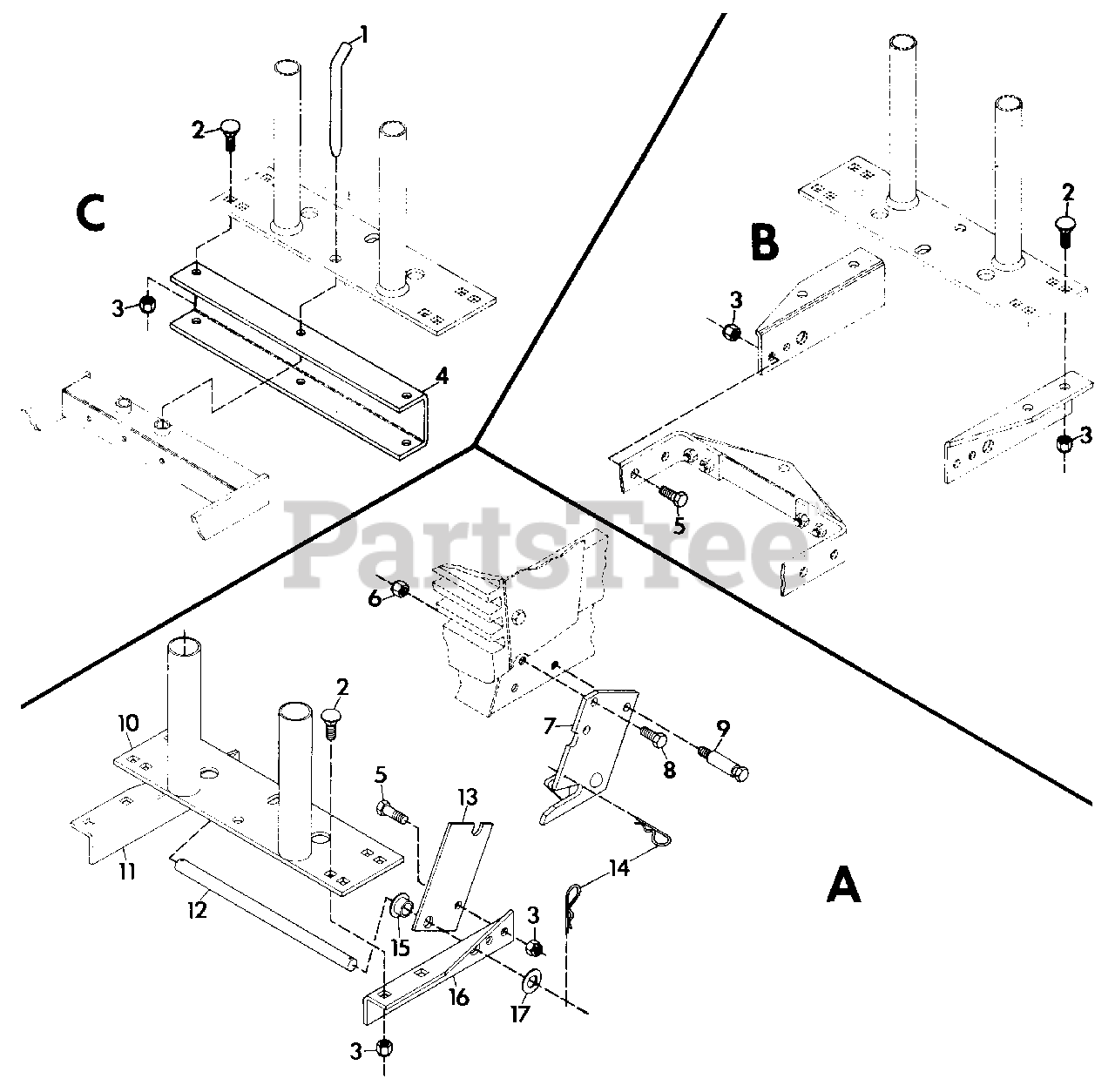

WEIGHT RACK KIT Parts Diagram

  • Title

1

Gravely 018864

PIN, HITCH
(Superseded to 08653700)

$

$

Not available

2

Gravely 120917

BOLT, 1/2-13X1.50 RD HD SQ NK
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 020439

BRACKET
(Superseded to 08719353)

$

$

Not available

5

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 040324

ASM, ATTACHMENT BRACKET L.H.
(Superseded to 08747500)

$142.99

$

Usually ships in 4-12 days

0

7

Gravely 040325

ASM, ATTACHMENT BRACKET R.H.
(Superseded to 08747600)

$112.99

$

Usually ships in 4-12 days

0

8

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

9

Gravely 031688

LATCH, PIN
(Superseded to 08729600)

$

$

Not available

10

Gravely 040643

WELDMENT, WEIGHT SUPPORT
(Superseded to 08750300)

$

$

Not available

11

Gravely 040640

SUPPORT, ANGLE R.H.
(Superseded to 08750000)

$

$

Not available

12

Gravely 040639

SHAFT
(Superseded to 08749900)

$

$

Not available

13

Gravely 040642

SUPPORT
(Superseded to 08750200)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

15

Gravely 010174

BUSHING, NYLON .76X1X.6 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 040644

SUPPORT, ANGLE L.H.
(Superseded to 08750400)

$

$

Not available

17

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0
