787021 - Gravely Lift Assist for 4-Wheel Tractor LIFT ASSIST KIT Parts Diagram

Lift Assist for 4-Wheel Tractor

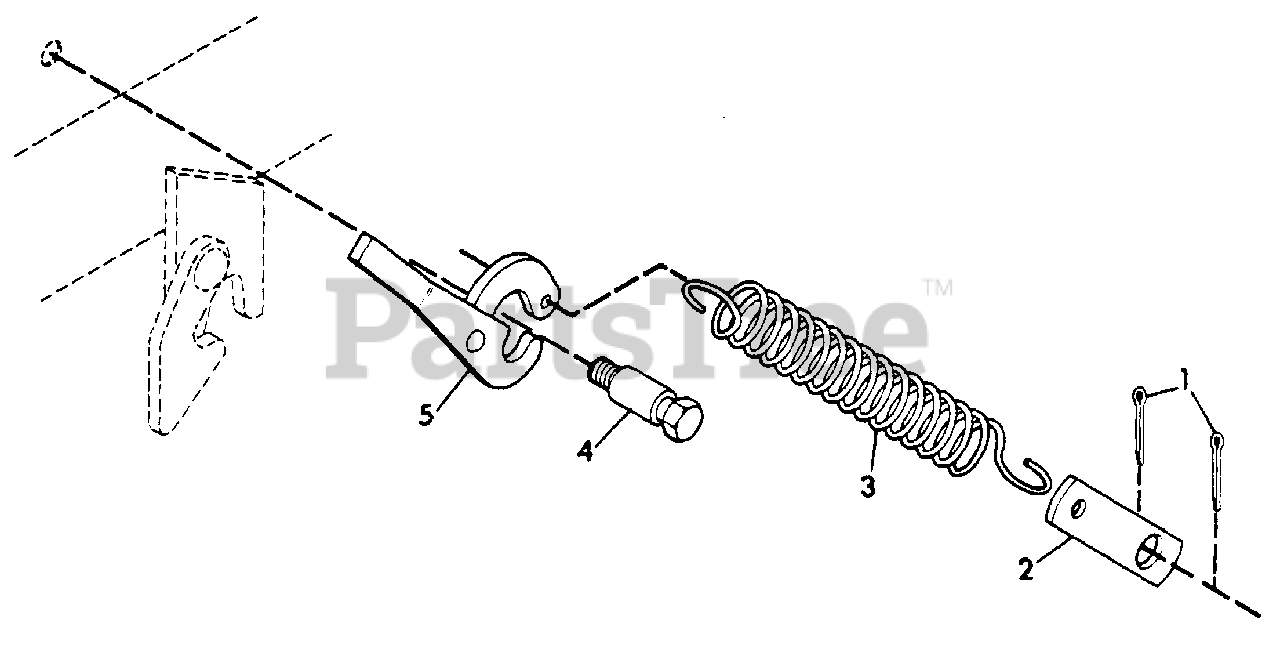

LIFT ASSIST KIT Parts Diagram

  • Title
1

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 011273

STRAP
(Superseded to 08861800)

$

$

Not available

3

Gravely 011272

SPRING, EXTENSION 7.625X1.5X70R
(Superseded to 08334300)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 031688

PIN, LATCH
(Superseded to 08729600)

$

$

Not available

5

Gravely 040311

ASSEMBLY, SPRING LATCH L.H.
(Superseded to 08747400)

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 040309

ASSEMBLY, SPRING LATCH R.H.
(Superseded to 08747300)

$39.99

$

Usually ships in 4-12 days

0
