787014 - Gravely Power Brush Comp. Kit for 4-Wheel Tractor, Rev 2006 Two-Wheel & Four-Wheel Tractor Completing Kits Parts Diagram

Power Brush Comp. Kit for 4-Wheel Tractor, Rev 2006

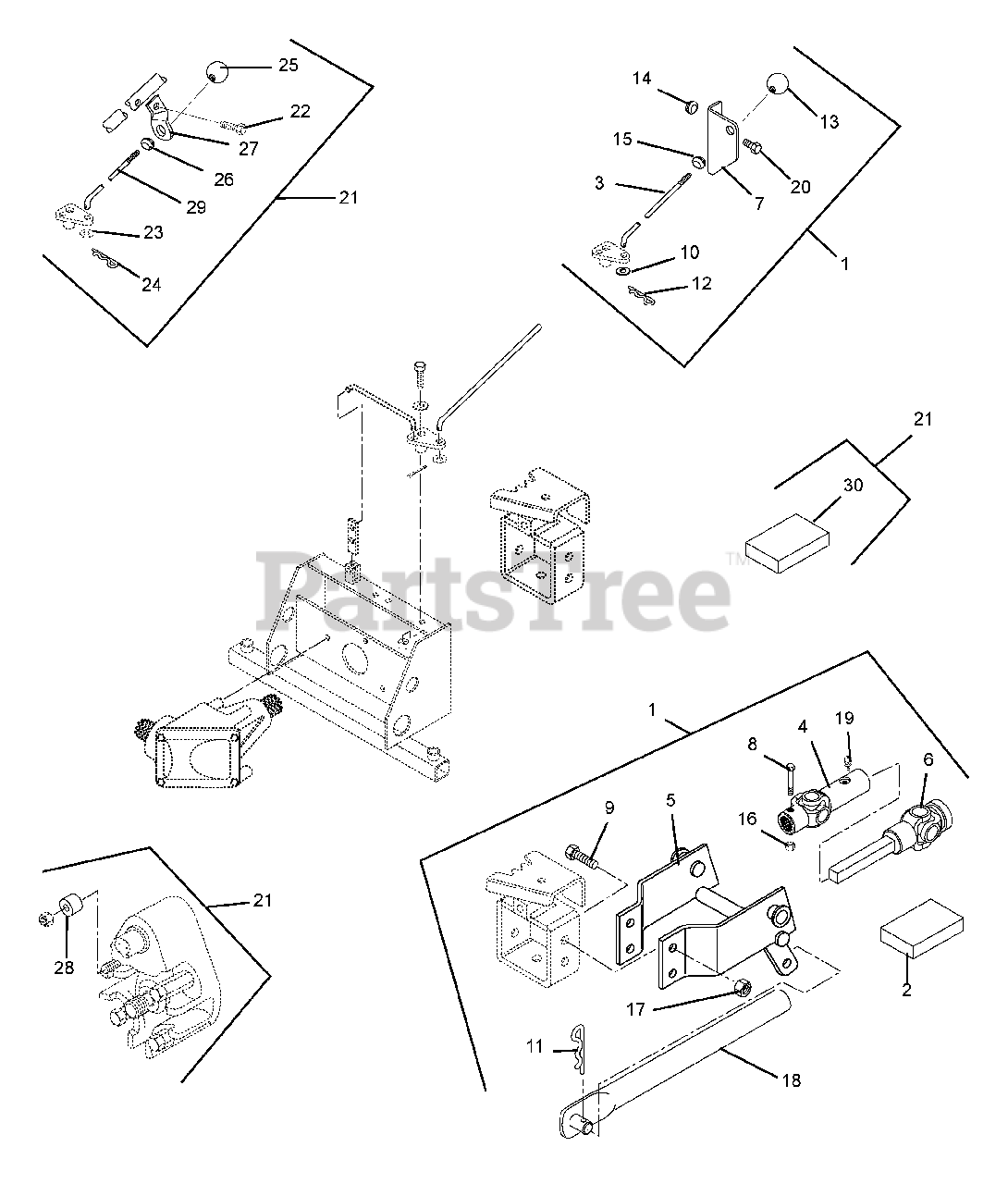

Two-Wheel & Four-Wheel Tractor Completing Kits Parts Diagram

  • Title

1

Gravely 78701400

Kit, Power Brush for 4-Wheel Tractor

Note: (Includes Items 2-20)

$

$

Not available

2

Gravely 012134

Kit, Universal Joint Repair
(Superseded to 03155800)

$

$

Not available

3

Gravely 040561

Rod, Control
(Superseded to 08655100)

$

$

Not available

4

Gravely 013518

Universal Joint-Female End
(Superseded to 08700200)

$

$

Not available

5

Gravely 019866

Weldment, Adapter
(Superseded to 08716300)

$

$

Not available

6

Gravely 019871

Universal Joint-Male
(Superseded to 08716700)

$

$

Not available

7

Gravely 040562

Bracket
(Superseded to 08749400)

$

$

Not available

8

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06437300

Washer-Flat-Steel .281 x .62 x 065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06714000

Pin-Hair-External .15 x .937

$2.99

$

In Stock, Qty 6

0

12

Gravely 06713500

Hair Pin Cotter .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 019295

Knob
(Superseded to 07520500)

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 012325

Grommet, Shifter
(Superseded to 07538200)

$

$

Not available

16

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 011607

Rod, Push Weldment
(Superseded to 08862400)

$

$

Not available

19

Gravely 411027

Fitting-Lube .25-28
(Superseded to 07012600)

$

$

Not available

20

Gravely 07414200

Screw-Self Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

21

Gravely 78502300

Kit, Power Brush for 2-Wheel Tractor

Note: (Includes Items 22-31)

$

$

Not available

22

Gravely 05965500

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06713500

Hair Pin Cotter .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 019295

Knob
(Superseded to 07520500)

$21.99

$

Usually ships in 4-12 days

0

26

Gravely 012325

Grommet, Shifter
(Superseded to 07538200)

$

$

Not available

27

Gravely 019296

Guide, Control Rod
(Superseded to 08510300)

$

$

Not available

28

Gravely 019297

Bushing Sleeve .531 x .991 x .600
(Superseded to 08561200)

$

$

Not available

29

Gravely 040561

Arm, Control
(Superseded to 08655100)

$

$

Not available

30

Gravely 039739

Journal Cross and Bearing Assembly
(Superseded to 03155800)

$

$

Not available
