787011 - Gravely Rear PTO for 4-Wheel Tractor REAR PTO Parts Diagram

Rear PTO for 4-Wheel Tractor

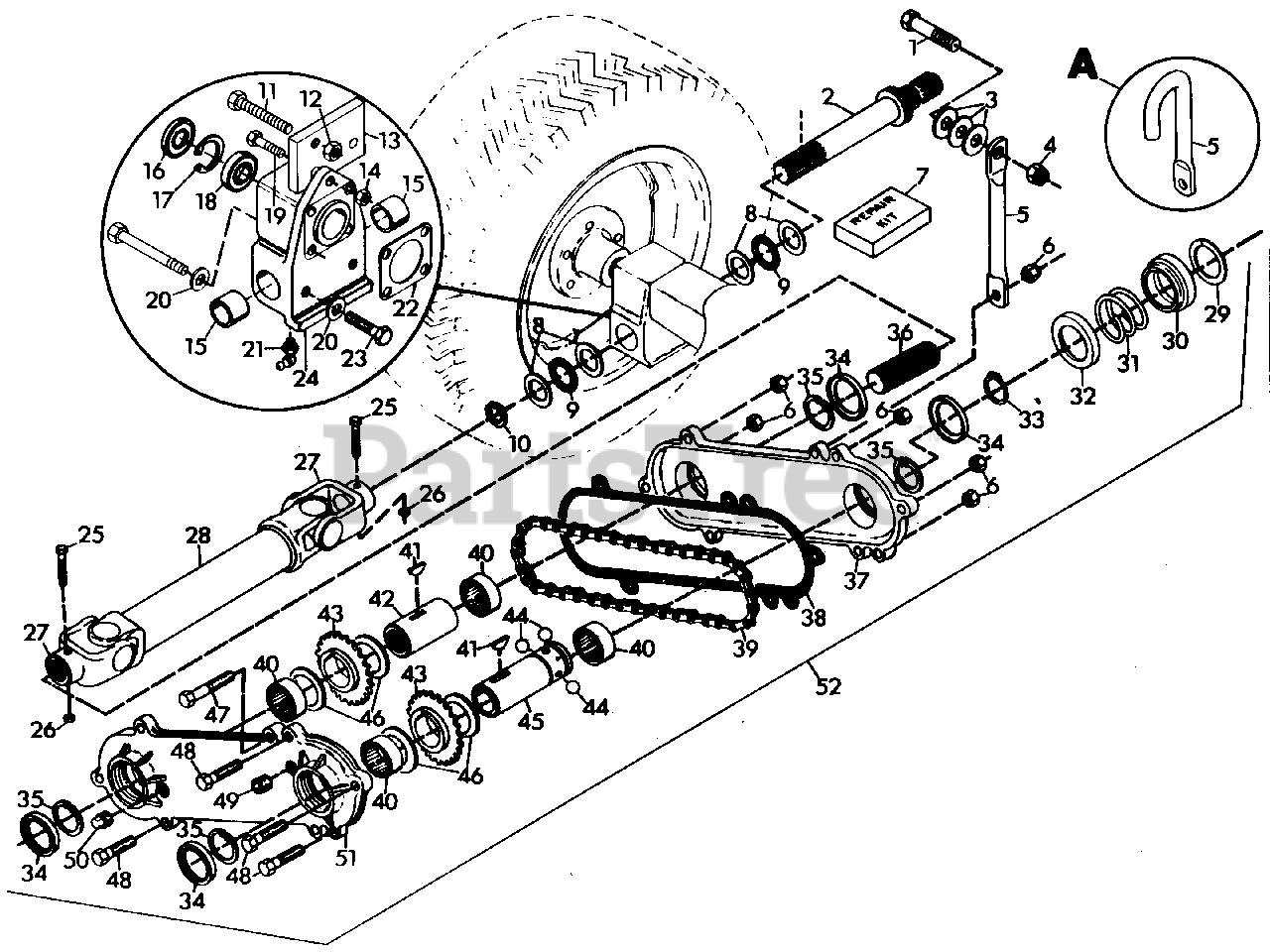

REAR PTO Parts Diagram

  • Title
1

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$

$

Not available

2

Gravely 040708

Shaft
(Superseded to 08751500)

$

$

Not available

3

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

4

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 040707

Bracket, Rear PTO
(Superseded to 08655400)

$

$

Not available

5

Gravely 020821

Bracket, Rear PTO
(Superseded to 08721453)

$

$

Not available

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 024560

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

8

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

9

Gravely 011225

Bearing, Needle Thrust
(Superseded to 05427900)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 014987

Ring, Retaining 1.00 Shaft
(Superseded to 05711800)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 044609

Bolt, Hex 3/8-16x2.50
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

12

Gravely 124829

Nut, Jam 3/8-16 Hex
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 046066

Plate, Fwd Clutch Anchor
(Superseded to 08775500)

$

$

Not available

14

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 018977

Bearing, Bronze 1.002x1.378x1.00
(Superseded to 05421400)

$

$

Not available

16

Gravely 018031

Seal, Oil Axle
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

17

Gravely 018812

Ring, Retaining
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 018029

Bearing, Ball 1.250x2.250x.500
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

19

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

20

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

21

Gravely 411032

Fitting, Lube 90 Degree
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

22

Gravely 018030

Gasket
(Superseded to 08701800)

$6.99

$

In Stock, Qty 10

0

23

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

24

Gravely 034831

Assembly, Axle Retainer
(Superseded to 08736600)

$

$

Not available

25

Gravely 180044

Bolt, Hex 1/4-20x2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

27

$

$

Not available

28

Gravely 018971

Shaft, Drive(Rear)
(Superseded to 08713500)

Note: (Rear)

$

$

Not available

29

Gravely 036801

Ring, Snap
(Superseded to 08739100)

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 036800

Collar
(Superseded to 08739000)

$25.99

$

Usually ships in 4-12 days

0

31

Gravely 036799

Spring
(Superseded to 08738900)

$9.49

$

In Stock, only 1 left!

0

32

Gravely 041996

Retainer, Inner
(Superseded to 08758200)

$

$

Not available

33

Gravely 018962

Ring, Retaining
(Superseded to 05713200)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 018961

Seal, Oil 1.500x2.125x.312
(Superseded to 05615400)

$

$

Not available

35

Gravely 018960

Ring, Retaining
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 018972

Shaft
(Superseded to 08713600)

$

$

Not available

37

Gravely 018948

Housing, Rear
(Superseded to 08712700)

$

$

Not available

38

Gravely 018958

Gasket
(Superseded to 08736300)

$

$

Not available

39

Gravely 018957

Chain, Roller
(Superseded to 08652100)

$

$

Not available

40

Gravely 018950

Bearing, Needle 1.500x1.875x.50
(Superseded to 05421300)

$

$

Not available

41

Gravely 431787

Key, Woodruff .187x.625 Hard #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

42

Gravely 018956

Shaft
(Superseded to 08713100)

$

$

Not available

43

Gravely 018953

Sprocket, 5/8 Pitch 14 Teeth
(Superseded to 08713000)

$

$

Not available

44

Gravely 145643

Ball, 3/8
(Superseded to 05429800)

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 041995

Shaft
(Superseded to 08758100)

$

$

Not available

46

Gravely 018954

Bearing, Thrust Race
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

47

Gravely 180134

Bolt, Hex 3/8-16x2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

48

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

49

Gravely 018968

Plug, Vented
(Superseded to 07017700)

$

$

Not available

50

Gravely 103880

Plug, Pipe .50 Sq Hd Steel
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

51

Gravely 018949

Housing, Front
(Superseded to 08712800)

$

$

Not available

52

Gravely 042160

Assembly, Drive Chain
(Superseded to 08758500)

$

$

Not available
