787003 - Gravely Front Adapter for 4-Wheel Tractor FRONT ADAPTER KIT Parts Diagram

Front Adapter for 4-Wheel Tractor

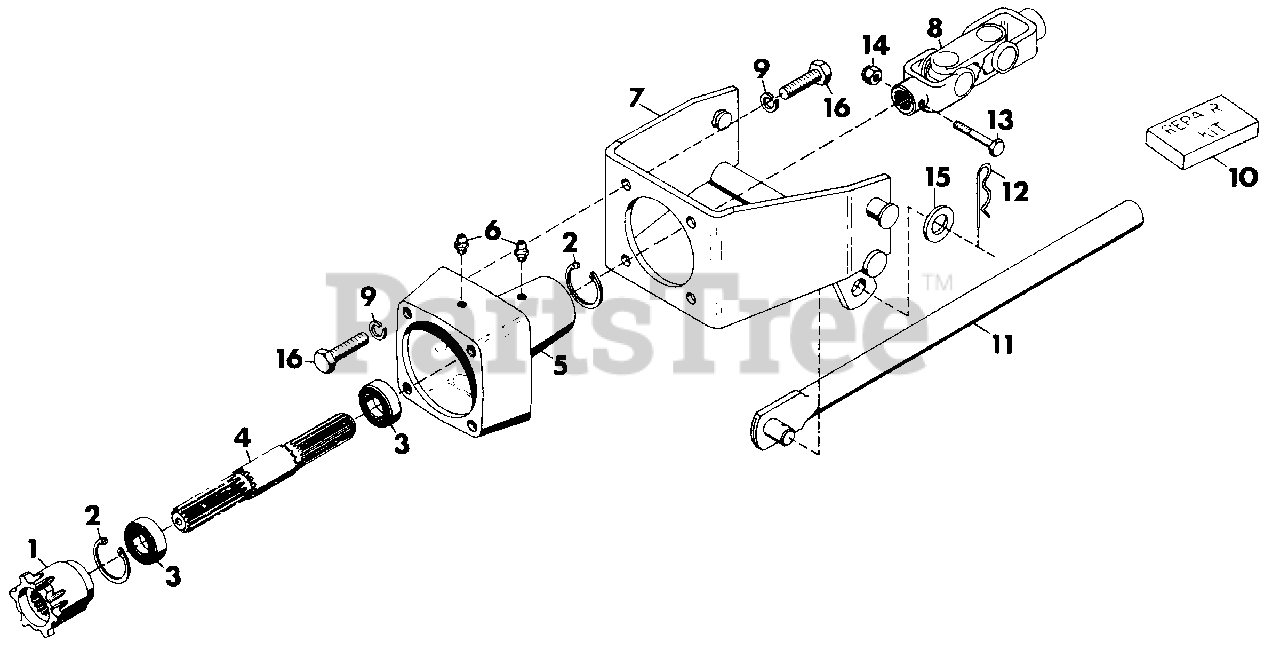

FRONT ADAPTER KIT Parts Diagram

  • Title

1

Gravely 021343

DOG, ATTACHMENT
(Superseded to 08516400)

$249.99

$

Usually ships in 4-12 days

0

2

Gravely 019073

RING, RETAINING 2.062 BORE
(Superseded to 05713300)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 019072

BEARING, BALL .984X2.047X.590
(Superseded to 05421500)

$13.99

$

In Stock, only 4 left!

0

4

Gravely 021342

SHAFT, FRONT ADAPTOR
(Superseded to 08723300)

$91.99

$

Usually ships in 4-12 days

0

5

Gravely 021341

HOUSING, ADAPTOR
(Superseded to 08723200)

$

$

Not available

6

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

7

Gravely 011609

WELDMENT, ADAPTOR
(Superseded to 08862600)

$

$

Not available

8

Gravely 011967

ASSEMBLY, DOUBLE JOINT
(Superseded to 08587200)

$517.99

$

Usually ships in 4-12 days

0

9

Gravely 120384

WASHER, LOCK 1/2 REGULAR
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 012134

KIT, REPAIR U-JOINT ROCKWELL STD.
(Superseded to 03155800)

$

$

Not available

10

Gravely 024560

KIT, REPAIR U-JOINT NEAPCO 1605X
(Superseded to 03155800)

$

$

Not available

11

Gravely 011607

WELDMENT, PUSH ROD
(Superseded to 08862400)

$

$

Not available

12

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

13

Gravely 180044

BOLT, HEX 1/4-20X2
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

NS

Gravely 038056

DECAL, AMERICA
(Superseded to 20644900)

$

$

Not available
