787001 - Gravely Wing Deck Adapter for 4-Wheel Tractor WING MOWER ADAPTER KIT FOR 4-WHEEL TRACTORS Parts Diagram

Wing Deck Adapter for 4-Wheel Tractor

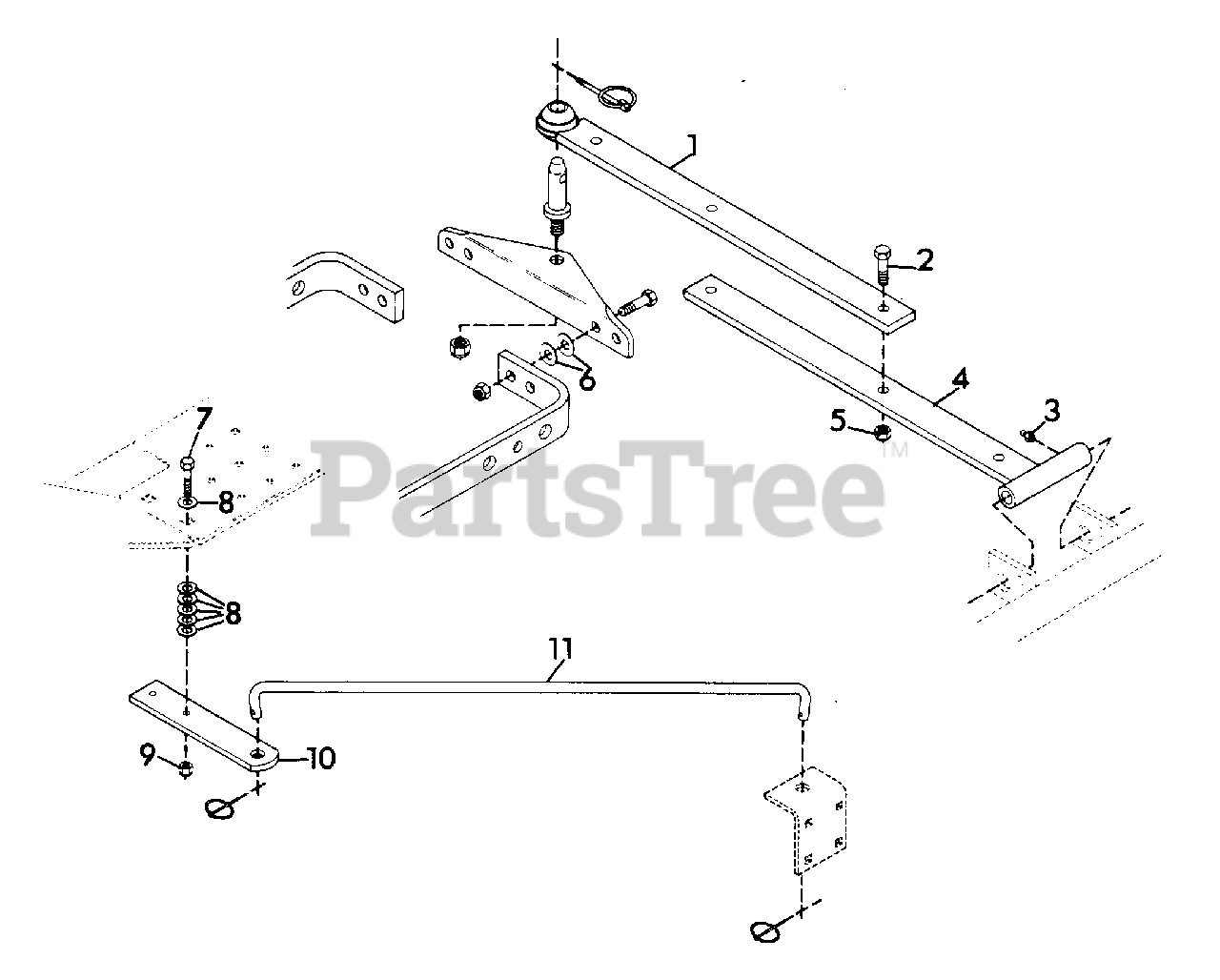

WING MOWER ADAPTER KIT FOR 4-WHEEL TRACTORS Parts Diagram

  • Title

1

Gravely 031872

WELDMENT, REAR BALL JOINT
(Superseded to 08730700)

$

$

Not available

2

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

4

Gravely 031874

WELDMENT, REAR JOINT
(Superseded to 08730900)

$

$

Not available

5

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 031926

PLATE, SUPPORT

$

$

Not available

11

Gravely 031927

ROD, STABILIZER
(Superseded to 08733953)

$

$

Not available

11

Gravely 031928

ROD, STABILIZER 60"
(Superseded to 08734053)

$

$

Not available
