78597 - Toro Mulch Force for GrandStand Multi Force (SN: 400000000 - 999999999) Mulch Dump Assembly Parts Diagram

Mulch Force for GrandStand Multi Force

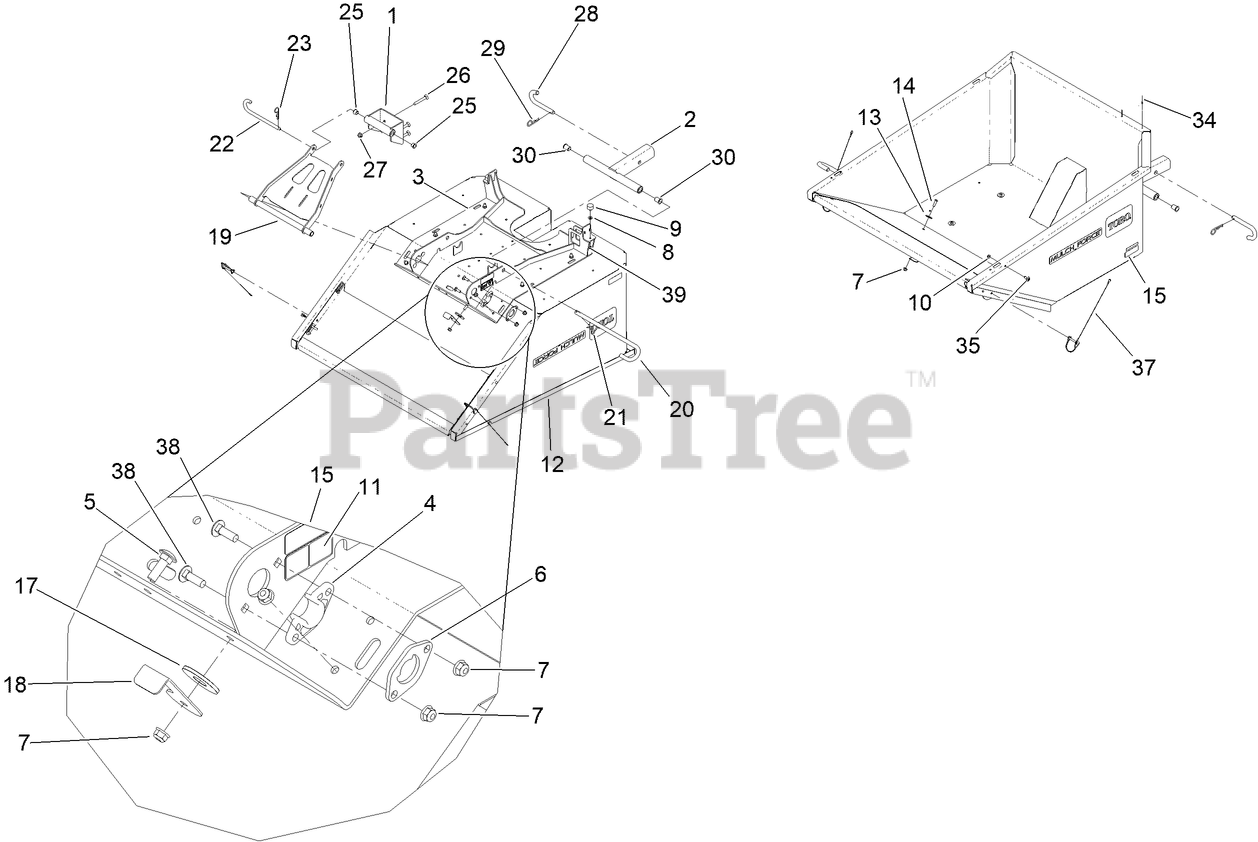

Mulch Dump Assembly Parts Diagram

  • Title

1

Toro 140-1934-03

GS DUMP PIN MNT WLDMNT

$112.99

$

Usually ships in 3-6 days

0

2

Toro 140-1936-03

GS DUMP RECEIVER WLDMNT

$155.99

$

Usually ships in 3-6 days

0

3

Toro 140-1923-03

LIFT PLATE WLDMNT

$394.99

$

Usually ships in 3-6 days

0

4

Toro 139-5872

BEARING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

5

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

6

Toro 140-7789

GUSSET-COVER

$7.49

$

Usually ships in 0 days

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 240-14

BUMPER-RUBBER

$14.99

$

Usually ships in 3-6 days

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-6674

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

12

MULCH BUCKET

Note: Not serviced separately

$

$

Not available

13

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

15

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

17

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 7

0

18

Toro 140-5426

BRACKET-LOCK, KICKSTAND

$15.99

$

Usually ships in 3-6 days

0

19

Toro 140-4330-03

GS MULCH DUMP STRUT WLDMNT

$131.99

$

Usually ships in 3-6 days

0

20

Toro 116-6302

PIN, PIVOT

$51.99

$

In Stock, only 2 left!

0

21

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Toro 133-2021

PIN-HITCH

$51.99

$

Usually ships in 3-6 days

0

23

Toro 92-2762

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

25

Toro 116-4279

BEARING-FLANGE

$5.49

$

In Stock, only 3 left!

0

26

Toro 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 133-2085

PIN-ATTACH

$54.99

$

Usually ships in 3-6 days

0

29

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

30

Toro 115-7211

BUSHING-FLANGED

$5.49

$

Usually ships in 3-6 days

0

34

Toro 3269-32

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

35

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

37

Toro 144-6948

PIN-SNAP (1/4), LANYARD

$39.99

$

Usually ships in 3-6 days

0

38

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
