78596 - Toro Broom for GrandStand Multi Force Mower (SN: 400000000 - 999999999) BRISTLE ASSEMBLY Parts Diagram

Broom for GrandStand Multi Force Mower

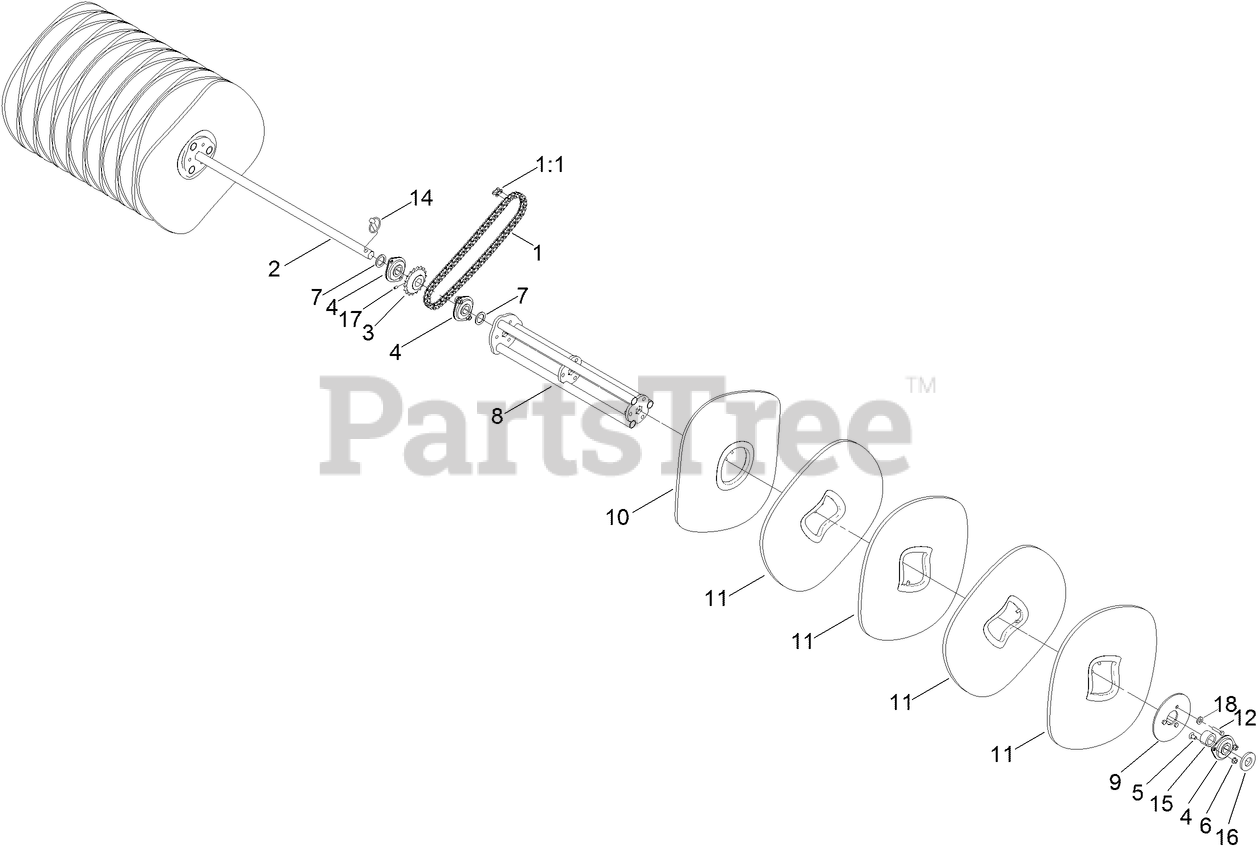

BRISTLE ASSEMBLY Parts Diagram

  • Title

1

Toro 133-8736

CHAIN-ROLLER

$60.99

$

Usually ships in 3-6 days

0

1:1

Toro ST34104

LINK-CONNECTING, NO. 50

$8.49

$

Usually ships in 3-6 days

0

2

Toro 137-0748

HEX SHAFT

$224.99

$

Usually ships in 3-6 days

0

3

Toro 136-1216

SPROCKET-CHAIN

$156.99

$

Usually ships in 3-6 days

0

4

Toro 137-0741

BEARING-HEX

$82.99

$

Usually ships in 3-6 days

0

5

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 137-0787

WASHER-THRUST

$17.99

$

Usually ships in 3-6 days

0

8

Toro 137-0753

BRISTLE-CARRIER

$358.99

$

Usually ships in 3-6 days

0

9

Toro 132-9460-03

PLATE-BRISTLE, CARRIER

$20.99

$

Usually ships in 3-6 days

0

10

Toro 136-8359

BRISTLE-CONE, HYBRID

$50.99

$

In Stock, only 1 left!

0

11

Toro 132-9440

WAFER-BROOM

$33.99

$

Usually ships in 3-6 days

0

12

Toro 137-3993

Screw-HH

$3.99

$

Usually ships in 3-6 days

0

14

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

15

Toro 93-1167

SPACER-CASTOR

$38.99

$

Usually ships in 3-6 days

0

16

Toro 137-0788

WASHER

$25.99

$

Usually ships in 3-6 days

0

17

Toro 121-5989

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
