78593 - Toro Blower Kit for GrandStand Multi Force Mower (SN: 402860000 - 403399999) Nozzle Assembly Parts Diagram

Blower Kit for GrandStand Multi Force Mower

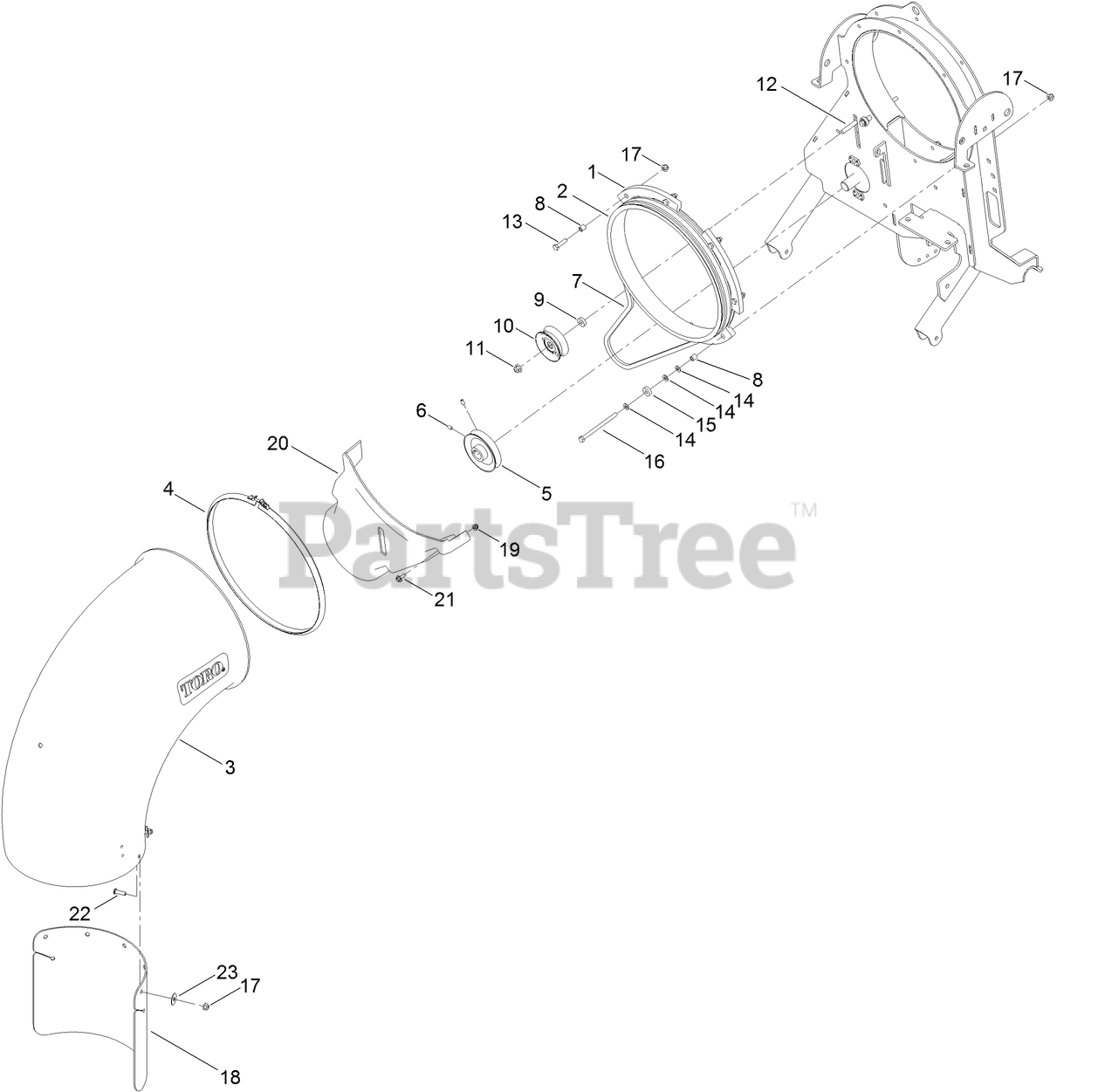

Nozzle Assembly Parts Diagram

  • Title

1

Toro 114-9868

GUIDE-NOZZLE

$56.99

$

Usually ships in 3-6 days

0

2

Toro 112-1874

PULLEY-NOZZLE

$663.99

$

Usually ships in 3-6 days

0

3

Toro 137-6374

NOZZLE

$248.99

$

Usually ships in 3-6 days

0

4

Toro 112-6899

CLAMP-NOZZLE

$97.99

$

Usually ships in 3-6 days

0

5

Toro 138-5801

PULLEY

$63.99

$

Usually ships in 3-6 days

0

6

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

7

Toro 137-6384

BELT-V

$52.99

$

Usually ships in 3-6 days

0

8

Toro 93-6859

SPACER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

10

Toro 130-8362

PULLEY-IDLER, FLAT

$38.99

$

In Stock, Qty 8

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3256-74

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

16

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 137-6379

EXTENSION-NOZZLE

$37.99

$

Usually ships in 3-6 days

0

19

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 9

0

20

Toro 137-6389

COVER-BELT

$165.99

$

Usually ships in 3-6 days

0

21

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

22

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

23

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0
