78593 - Toro Blower Kit for GrandStand Multi Force Mower (SN: 402860000 - 403399999) Blower Frame Assembly Parts Diagram

Blower Kit for GrandStand Multi Force Mower

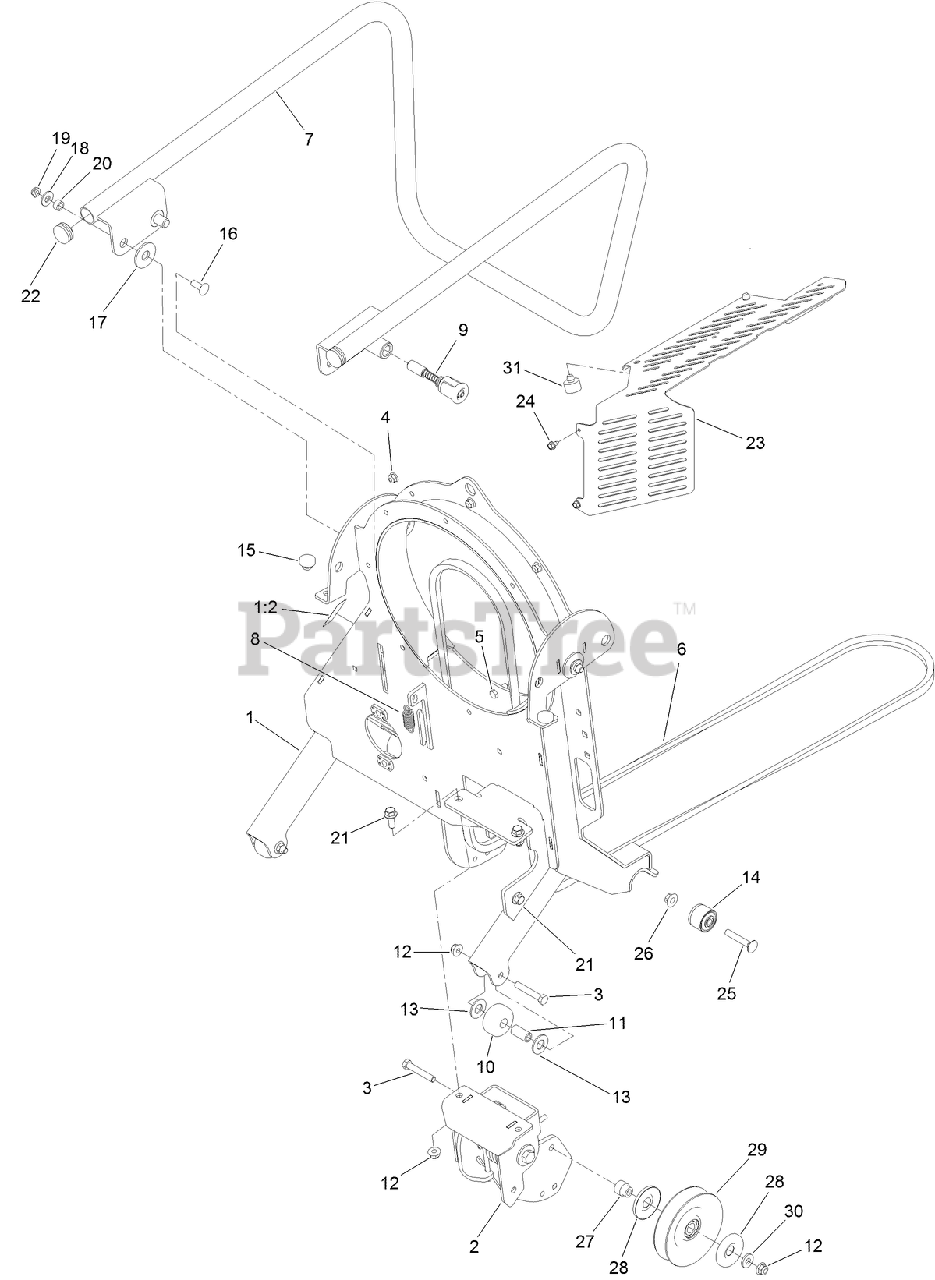

Blower Frame Assembly Parts Diagram

  • Title
1

Toro 138-1110

BLOWER FRAME SERVICE ASM

$1170.99

$

Usually ships in 3-6 days

0

1:2

Toro 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

2

Toro 137-6449

IDLER TORSION ASM

$266.99

$

Usually ships in 3-6 days

0

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 137-6376

BELT-V

$124.99

$

In Stock, only 1 left!

0

7

Toro 137-6375-03

BLOWER KICKSTAND ASM

$307.99

$

Usually ships in 3-6 days

0

8

Toro 613386

SPRING-BRAKE

$9.49

$

Usually ships in 3-6 days

0

9

Toro 116-0104

PIN-SPRING

$47.99

$

In Stock, only 1 left!

0

10

Toro 108-4293

ROLLER

$22.99

$

Usually ships in 3-6 days

0

11

Toro 108-6544

SPACER

$13.99

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

14

Toro 138-1082

PIVOT-MOUNT ASM

$11.99

$

In Stock, only 2 left!

0

15

Toro 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

16

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Toro 112-3788

SPACER

$

$

Not available

18

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

20

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

21

Toro 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 138-0996

CAP-TUBE

$3.49

$

Usually ships in 3-6 days

0

23

Toro 138-8846-03

LEAF GUARD

$103.99

$

Usually ships in 3-6 days

0

24

Toro 32104-116

SCREW-HWHTF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 323-17

SCREW-HH

$5.99

$

In Stock, Qty 8

0

26

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

28

Toro 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0

29

Toro 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 11

0

30

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

31

Toro 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0
