78583 - Toro Blower and Drive Kit for Z Master 72" Mower (SN: 400000000 - 999999999) BLOWER AND DRIVE ASSEMBLY Parts Diagram

Blower and Drive Kit for Z Master 72" Mower

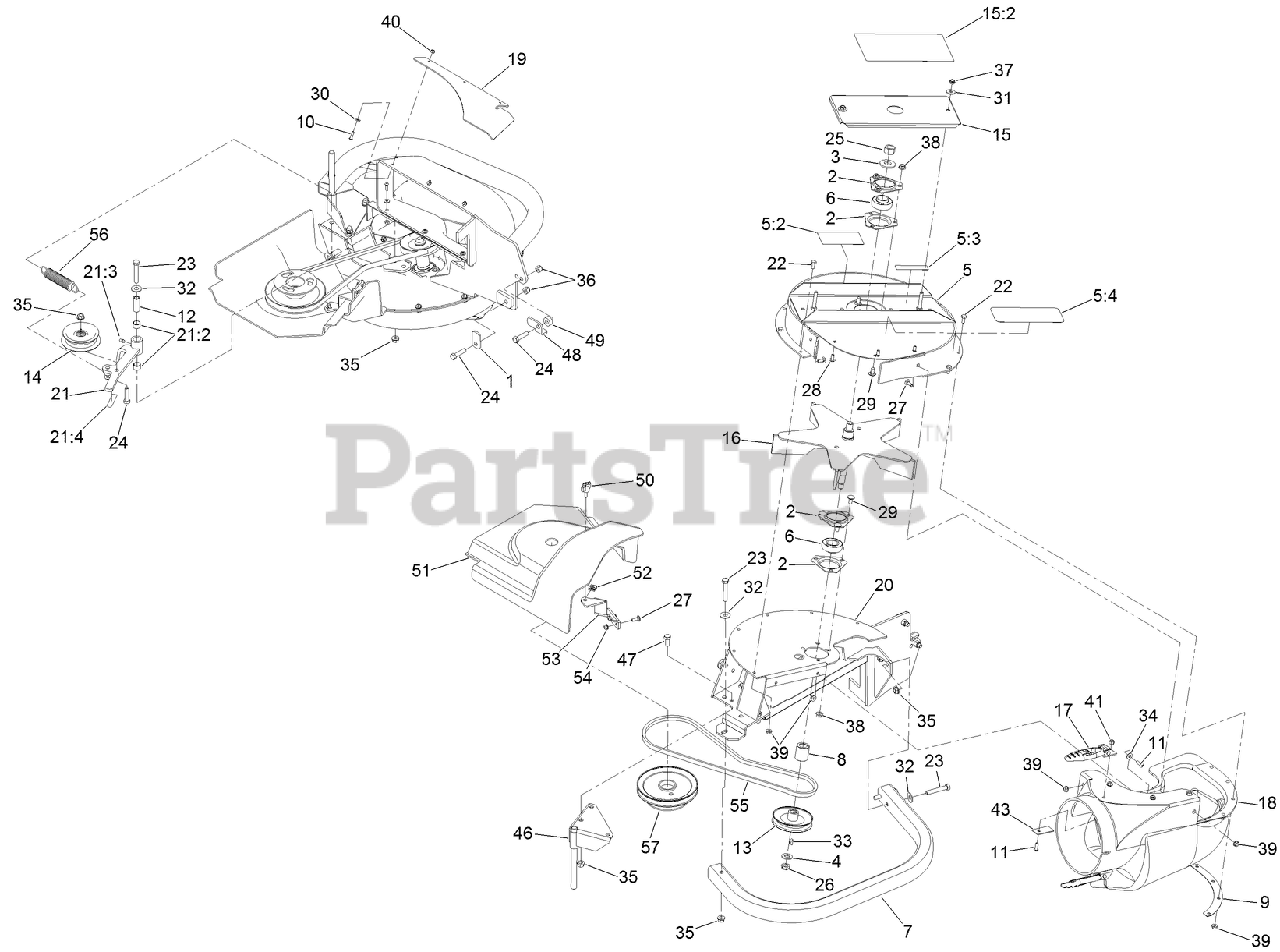

BLOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

2

Toro 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

3

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 112-1773

UPPER HOUSING ASM

$752.99

$

Usually ships in 3-6 days

0

5:2

Toro 106-3339

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

5:3

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

5:4

Toro 112-1770

DECAL

$25.99

$

Usually ships in 3-6 days

0

6

Toro 1-653346

BEARING

$71.99

$

In Stock, Qty 9

0

7

Toro 103-0458-01

BUMPER

$123.99

$

Usually ships in 3-6 days

0

8

Toro 103-0460

SPACER

$20.99

$

In Stock, only 1 left!

0

9

Toro 103-0461-03

PLATE-BACKING, BLOWER

$15.99

$

In Stock, only 1 left!

0

10

Toro 104-2408

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

12

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 5

0

13

Toro 103-0456

SHEAVE

$53.99

$

In Stock, only 3 left!

0

14

Toro 103-1103

IDLER-FLAT

$68.99

$

In Stock, only 1 left!

0

15

Toro 112-1774

COVER-BEARING

$128.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-5890

Decal, Warning

$77.99

$

Usually ships in 3-6 days

0

16

Toro 103-0455

IMPELLER

$441.99

$

Usually ships in 3-6 days

0

17

Toro 103-2898

LATCH-RUBBER

$34.99

$

In Stock, only 3 left!

0

18

Toro 109-1134

CHUTE-BLOWER

$360.99

$

Usually ships in 3-6 days

0

19

Toro 110-0328-03

PLATE-BOTTOM

$77.99

$

Usually ships in 3-6 days

0

20

Toro 110-0329-03

MOUNT-BLOWER

$578.99

$

Usually ships in 3-6 days

0

21

Toro 110-0339

IDLER ARM ASM

$194.99

$

Usually ships in 3-6 days

0

21:2

Toro 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

21:3

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

21:4

Toro 1-653558

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

26

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

27

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

28

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

30

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

34

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

37

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

38

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

43

Toro 103-3093

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

46

Toro 103-0445-03

PIN-MOUNT

$72.99

$

In Stock, only 2 left!

0

47

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

48

Toro 112-1787

LATCH-STOP

$27.99

$

Usually ships in 3-6 days

0

49

Toro 104-8426

SPACER

$10.99

$

In Stock, only 3 left!

0

50

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 16

0

51

Toro 135-1756

SHIELD-BELT, 72IN

$109.99

$

Usually ships in 3-6 days

0

52

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

53

Toro 135-1754-01

BRACKET-COVER, BELT (60/72)

$39.99

$

Usually ships in 3-6 days

0

54

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

55

Toro 112-2384

BELT-V

$78.99

$

Usually ships in 3-6 days

0

56

Toro 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

0

57

Toro 112-7202-03

PULLEY-BLOWER

$168.99

$

Usually ships in 3-6 days

0
