78575 - Toro 52" E-Z Vac Blower and Drive Kit (SN: 400000000 - 999999999) BLOWER AND DRIVE ASSEMBLY Parts Diagram

52" E-Z Vac Blower and Drive Kit

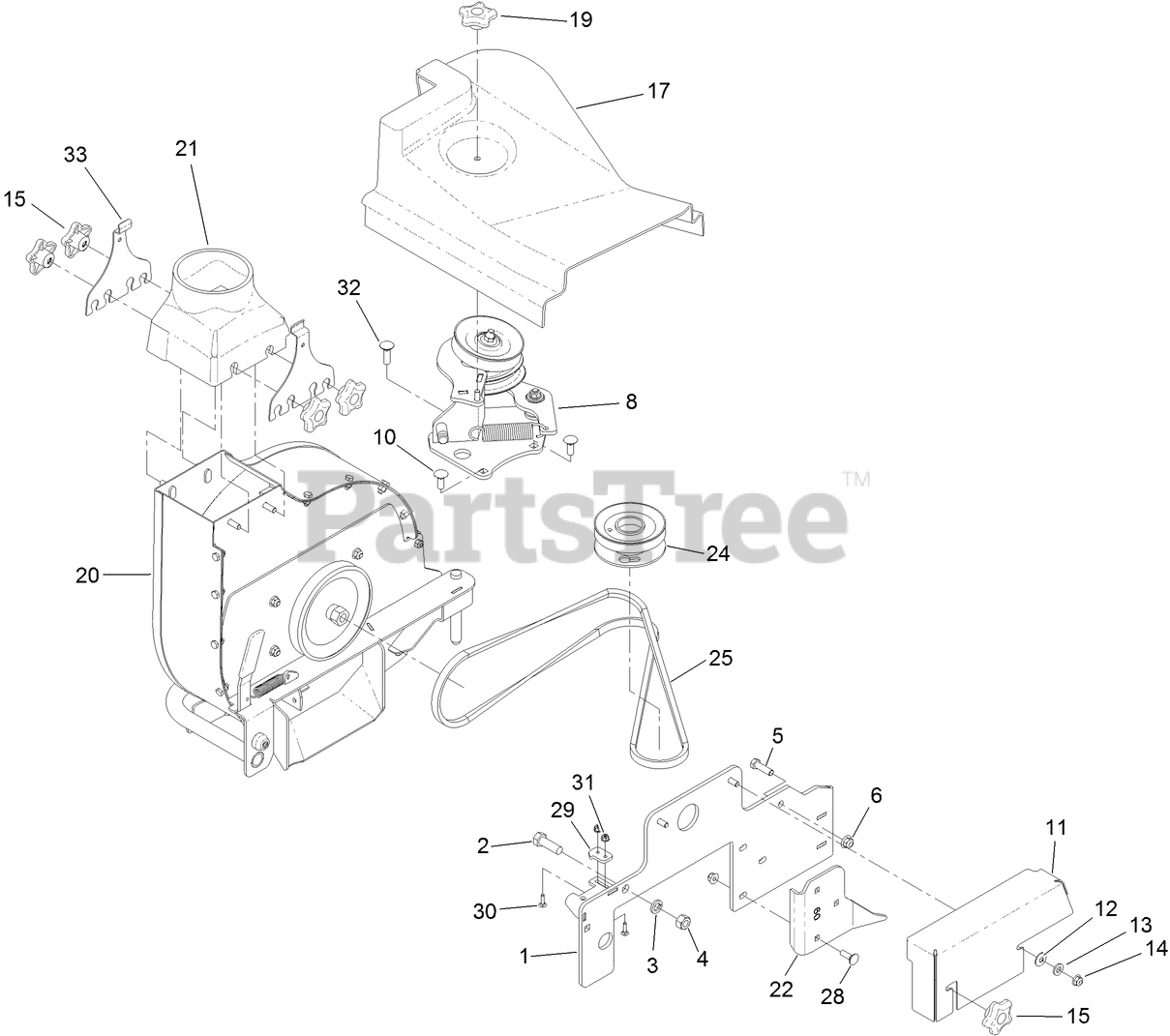

BLOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 136-0569-03

MOUNT-DECK, BLOWER

$437.99

$

Usually ships in 3-6 days

0

2

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

3

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 136-0575

IDLER ASM

$716.99

$

Usually ships in 3-6 days

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 133-8735-03

GUARD-BELT, BLOWER

$37.99

$

Usually ships in 3-6 days

0

12

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

13

Toro 62-1230

WASHER-RUBBER

$6.99

$

In Stock, Qty 7

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

17

Toro 133-8729

COVER-BELT

$205.99

$

Usually ships in 3-6 days

0

19

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

20

Toro 136-0570

BLOWER ASM

$2512.99

$

Usually ships in 3-6 days

0

21

Toro 133-8682

TRANSITION-BLOWER

$218.99

$

Usually ships in 3-6 days

0

22

Toro 136-4081-03

BAFFLE

$65.99

$

Usually ships in 3-6 days

0

24

Toro 112-8668-03

PULLEY-BLOWER

$181.99

$

Usually ships in 3-6 days

0

25

Toro 136-4108

BELT-V

$83.99

$

Usually ships in 3-6 days

0

28

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

29

Toro 136-4118

PLATE-LATCH

$21.99

$

Usually ships in 3-6 days

0

30

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

31

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

33

Toro 136-5688-03

CLAMP-HOSE

$19.99

$

Usually ships in 3-6 days

0
