78568 - Toro 72" E-Z Vac DFS Collection System (SN: 400000000 - 999999999) BAGGER ASSEMBLY Parts Diagram

72" E-Z Vac DFS Collection System

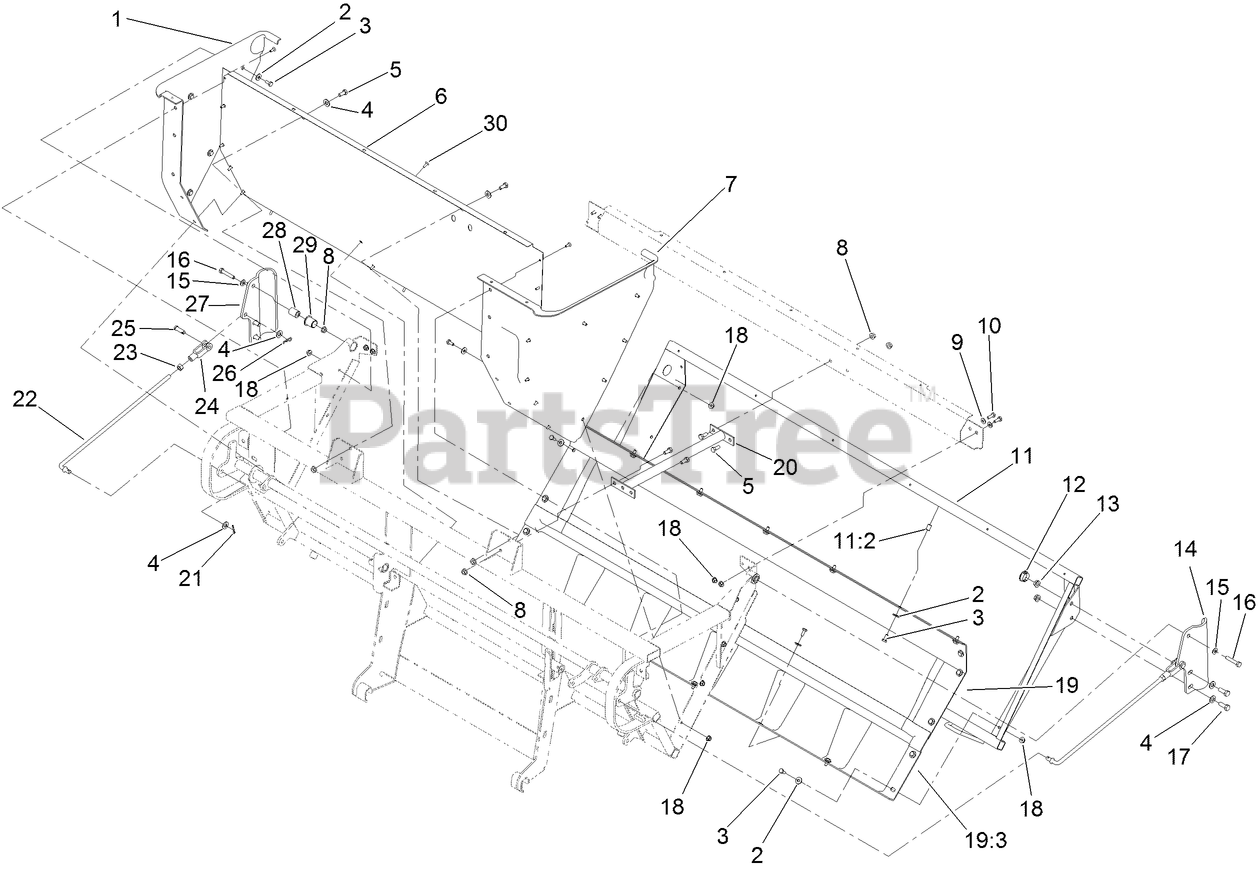

BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 103-7827

PANEL-BAGGER, RH

$181.99

$

Usually ships in 3-6 days

0

2

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 14

0

6

Toro 103-2404-03

SHEET-WALL

$178.99

$

Usually ships in 3-6 days

0

7

Toro 103-7826

PANEL-BAGGER, LH

$181.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 103-2737

DOOR ASM

$722.99

$

Usually ships in 3-6 days

0

11:2

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

12

Toro 103-8018

PLUG-DOME

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 103-3332-03

ARM-HINGE, LH

$60.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Toro 103-2383

BAG AND BOTTOM PANEL ASM

$359.99

$

Usually ships in 3-6 days

0

19:3

Toro 103-2486

PAN-BAG, BOTTOM
(Superseded to 103-2383)

$359.99

$

Usually ships in 3-6 days

0

20

Toro 103-2414-03

SUPPORT

$56.99

$

Usually ships in 3-6 days

0

21

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

22

Toro 103-2365

LINK-HINGE

$15.99

$

In Stock, only 2 left!

0

23

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

24

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

25

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

26

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

27

Toro 103-3331-03

ARM-HINGE, RH

$60.99

$

Usually ships in 3-6 days

0

28

Toro 103-2361

PIN-PIVOT, HINGE

$19.99

$

Usually ships in 3-6 days

0

29

Toro 103-2377

BUSHING

$8.99

$

In Stock, only 1 left!

0

30

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0
