78568 - Toro 72" E-Z Vac DFS Collection System (SN: 314000001 - 314999999) (2014) BAGGER HOOD ASSEMBLY Parts Diagram

72" E-Z Vac DFS Collection System

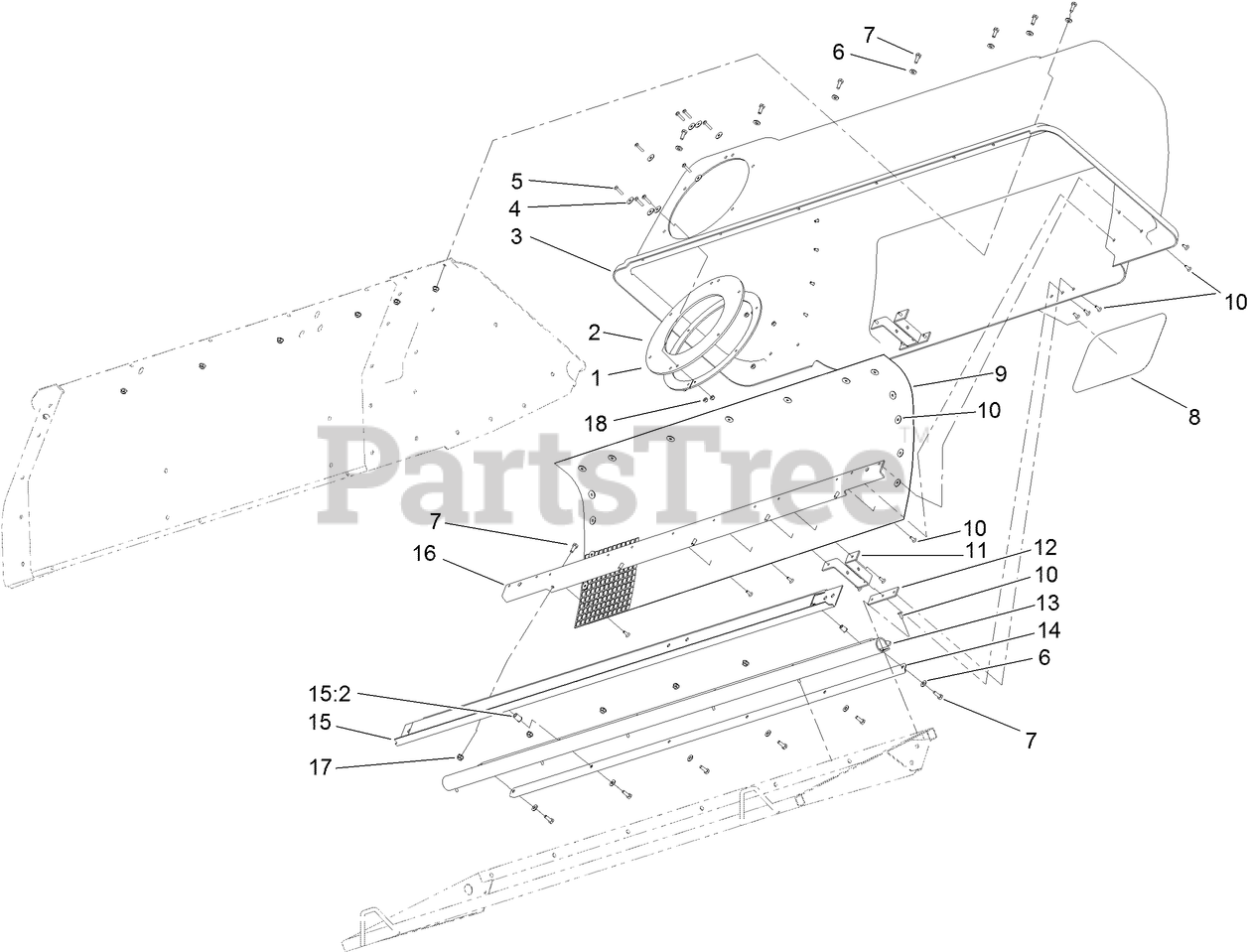

BAGGER HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0

2

Toro 103-0439

SEAL-TUBE

$45.99

$

In Stock, only 3 left!

0

3

Toro 114-8246

HOOD ASM

$1430.99

$

Usually ships in 3-6 days

0

4

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

5

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

9

Toro 103-0440

Screen-Bagger

$30.99

$

Usually ships in 3-6 days

0

10

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

11

Toro 103-0379

Bracket-Mount

$42.99

$

Usually ships in 3-6 days

0

12

Toro 103-0376

Plate-Latch, Reinforcement

$9.49

$

Usually ships in 3-6 days

0

13

Toro 103-2360

SEAL-DOOR HINGE

$132.99

$

Usually ships in 3-6 days

0

14

Toro 103-3010-03

STRAP-HOLD DOWN

$67.99

$

Usually ships in 3-6 days

0

15

Toro 103-2710

REAR CROSSMEMBER ASM

$181.99

$

Usually ships in 3-6 days

0

15:2

Toro 32148-6

INSERT-NUT

$2.49

$

Usually ships in 3-6 days

0

16

Toro 103-2662-03

SUPPORT-SCREEN

$70.99

$

Usually ships in 3-6 days

0

17

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
