78567 - Toro 60" E-Z Vac DFS Collection System (SN: 411400000 - 999999999) Tube and Weight Assembly Parts Diagram

60" E-Z Vac DFS Collection System

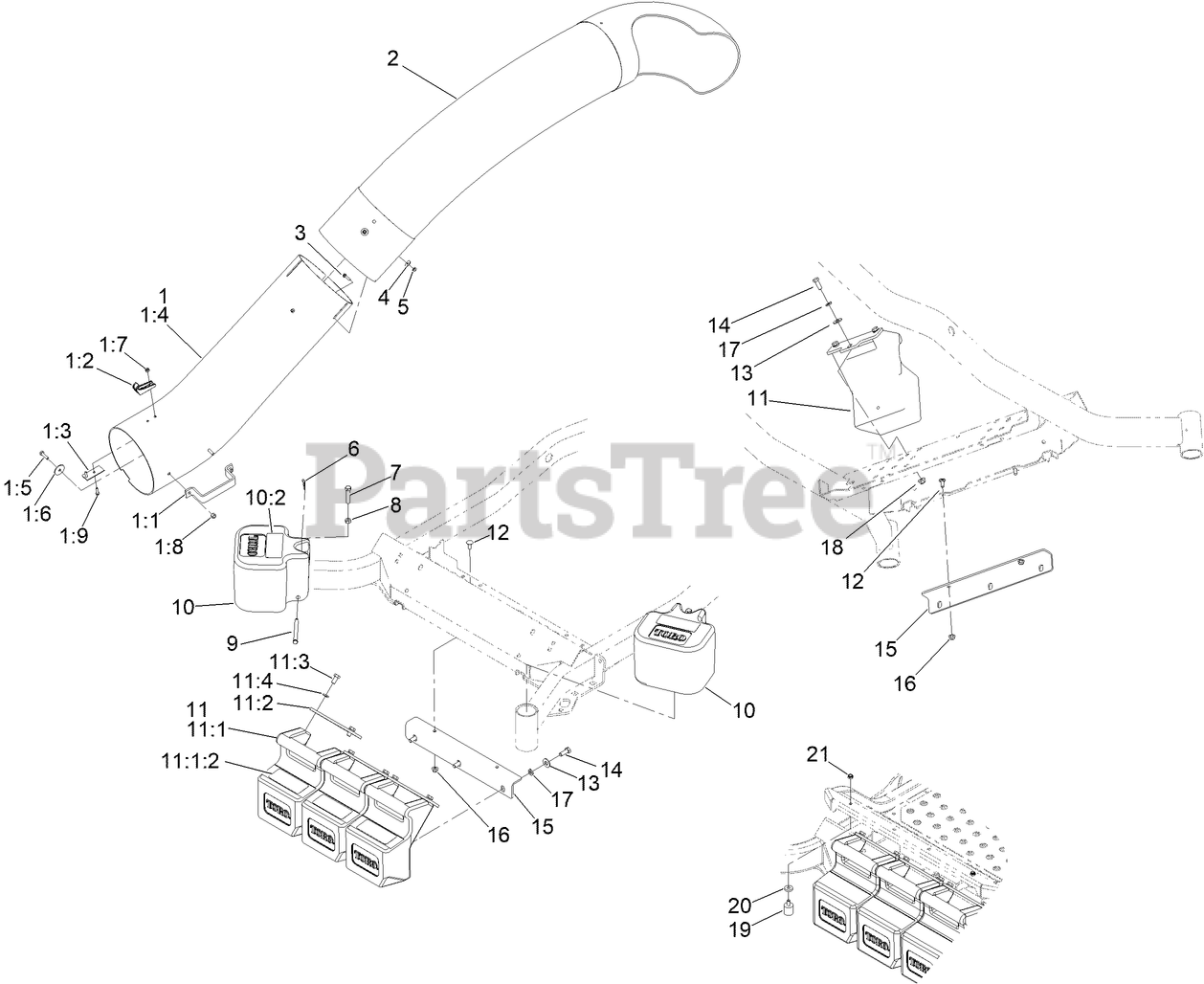

Tube and Weight Assembly Parts Diagram

  • Title

1

Toro 109-1973

LOWER TUBE ASM

$313.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-353005-03

HANDLE

$15.99

$

In Stock, only 1 left!

0

1:2

Toro 103-2897

LATCH-CATCH

Note: Kit No. 103-4143 - Contains catch, rubber latch, and mounting hardware

$8.49

$

In Stock, only 3 left!

0

1:3

Toro 103-3079

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

1:4

Toro 109-1974

TUBE-LOWER

$216.99

$

Usually ships in 3-6 days

0

1:5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

1:6

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

1:7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

1:9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

2

Toro 109-3525

TUBE-UPPER

$461.99

$

Usually ships in 3-6 days

0

3

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

4

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

7

Toro 323-53

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

9

Toro 100-1413

PIN-CLEVIS

$8.99

$

Usually ships in 3-6 days

0

10

Toro 147-2355

WEIGHT 62 LBS ASM W/DECAL

$826.99

$

Usually ships in 3-6 days

0

10:2

Toro 136-4053

DECAL-WARNING, COUNTERWEIGHT

$16.99

$

Usually ships in 3-6 days

0

11

Toro 147-2356

WEIGHT ASM

$

$

Currently unavailable

11:1

Toro 147-2357

WEIGHT W/DECAL ASM

$550.99

$

Usually ships in 0 days

0

11:1:2

Toro 136-4053

DECAL-WARNING, COUNTERWEIGHT

$16.99

$

Usually ships in 3-6 days

0

11:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

Usually ships in 3-6 days

0

11:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

11:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$46.99

$

Usually ships in 3-6 days

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 104-2442

BUMPER-RUBBER

$42.99

$

Usually ships in 3-6 days

0

20

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0
