78567 - Toro 60" E-Z Vac DFS Collection System (SN: 314000001 - 314999999) (2014) BAGGER MOUNT ASSEMBLY Parts Diagram

60" E-Z Vac DFS Collection System

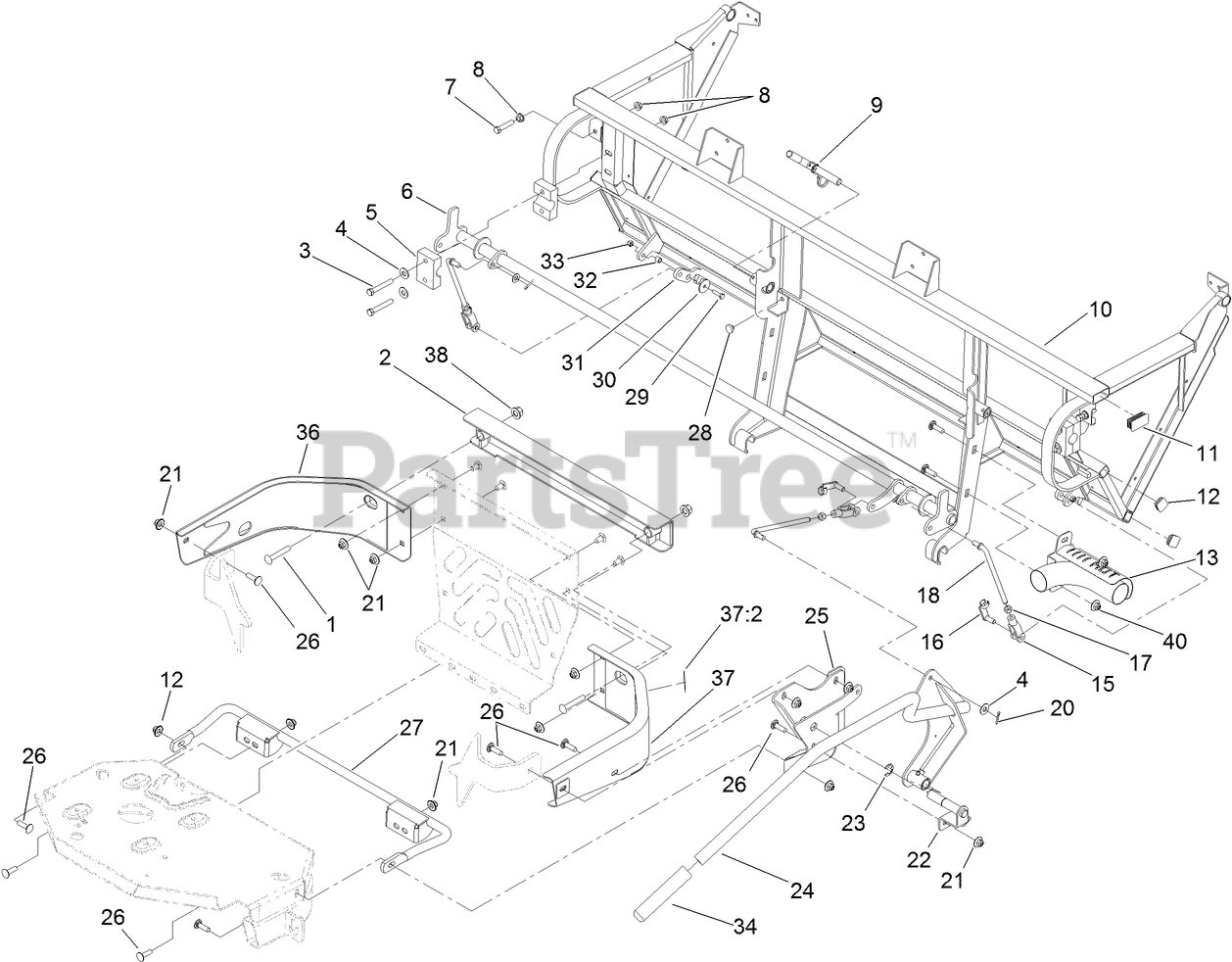

BAGGER MOUNT ASSEMBLY Parts Diagram

  • Title
1

Toro 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

2

Toro 116-0473-03

MOUNT-BAGGER, UPPER

$245.99

$

Usually ships in 3-6 days

0

3

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 103-2409

HALF-BLOCK, BEARING
(Superseded to 103-8057)

$63.99

$

Usually ships in 3-6 days

0

6

Toro 103-2412-03

LINK-INTERMEDIATE

$283.99

$

Usually ships in 3-6 days

0

7

Toro 323-53

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 116-0458

PIN-MOUNT, BAGGER

$16.99

$

In Stock, only 2 left!

0

10

$2452.99

$

Usually ships in 3-6 days

0

11

$3.49

$

Usually ships in 3-6 days

0

12

$1.49

$

In Stock, only 1 left!

0

13

Toro 109-9338

DIVERTER-EXHAUST
(Superseded to 116-2804)

$186.99

$

Usually ships in 3-6 days

0

15

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

16

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 6

0

17

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

18

Toro 103-2413

LINK-HANDLE

$13.99

$

In Stock, only 3 left!

0

20

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-6869

PIN-HANDLE

$77.99

$

Usually ships in 3-6 days

0

23

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

24

Toro 115-3604-03

BAGGER HANDLE ASM

$446.99

$

Usually ships in 3-6 days

0

25

Toro 109-8712-03

MOUNT-PIVOT

$255.99

$

Usually ships in 3-6 days

0

26

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

27

Toro 109-9248

MOUNT-BAGGER, LOWER

$210.99

$

Usually ships in 3-6 days

0

28

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

29

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

31

$22.99

$

Usually ships in 3-6 days

0

32

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

34

Toro 103-7115

HANDLE-GRIP

$7.99

$

Usually ships in 3-6 days

0

36

Toro 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

37

Toro 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

37:2

Toro 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

38

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

40

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
