78564 - Toro 72" E-Z Vac Triple Bagging System (SN: 315000001 - 315999999) (2015) WEIGHT ASSEMBLY Parts Diagram

72" E-Z Vac Triple Bagging System

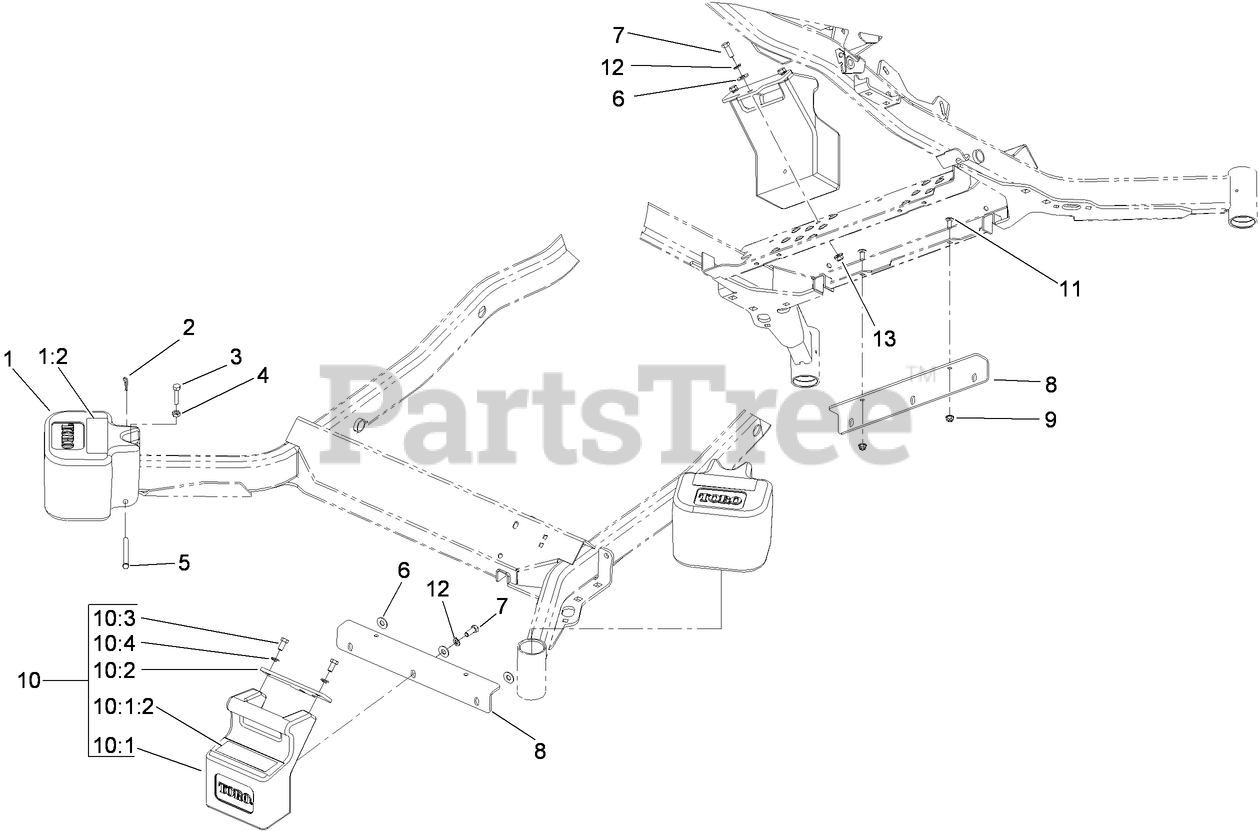

WEIGHT ASSEMBLY Parts Diagram

  • Title

1

Toro 115-3636

63 LBS WEIGHT ASM

$826.99

$

Usually ships in 3-6 days

0

1:2

Toro 106-3339

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

2

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 19

0

4

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

5

Toro 100-1413

PIN-CLEVIS

$8.99

$

Usually ships in 3-6 days

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$46.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 115-3617

WEIGHT ASM
(Superseded to 120-7883)

$819.99

$

Usually ships in 3-6 days

0

10:1

Toro 115-3618

OBS WEIGHT
(Superseded to 120-7882)

$802.99

$

Usually ships in 3-6 days

0

10:1:2

Toro 106-0871

Decal-Warning, Counterweight

$13.99

$

Usually ships in 3-6 days

0

10:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

Usually ships in 3-6 days

0

10:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

10:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
