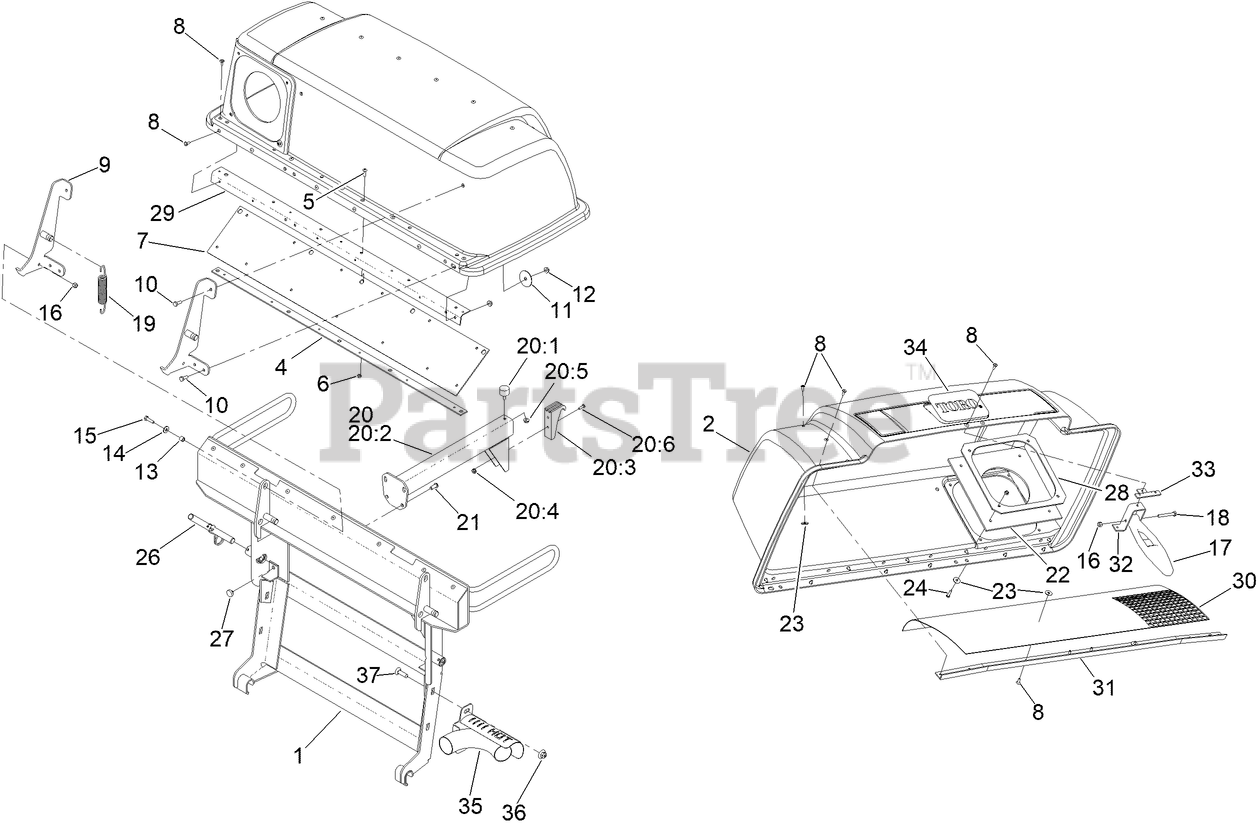

78562 - Toro 48" & 52" E-Z Vac Twin Bagging System (SN: 412200000 - 999999999) Twin Hood and Frame Assembly Parts Diagram

48" & 52" E-Z Vac Twin Bagging System

Twin Hood and Frame Assembly Parts Diagram

  • Title

1

Toro 109-8705-03

FRAME-BAG, TWIN

$816.99

$

Usually ships in 3-6 days

0

2

Toro 112-2316

HOOD ASM

$737.99

$

Usually ships in 3-6 days

0

4

Toro 1-653528-03

PLATE-BACKING

$68.99

$

Usually ships in 3-6 days

0

5

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-653425

SEAL

$78.99

$

Usually ships in 3-6 days

0

8

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-652395-03

HINGE ASM

$95.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 16

0

17

Toro 1-653403

LATCH

$80.99

$

In Stock, Qty 6

0

18

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-653544

SPRING-EXTENSION

$8.49

$

In Stock, only 2 left!

0

20

Toro 103-5166

BAG SUPPORT ASM

$164.99

$

Usually ships in 3-6 days

0

20:1

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

20:2

Toro 103-5124-03

SUPPORT-BAG

$165.99

$

Usually ships in 3-6 days

0

20:3

Toro 1-653404

CATCH

$37.99

$

In Stock, Qty 7

0

20:4

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

20:5

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20:6

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

22

Toro 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

0

23

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

24

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

26

Toro 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0

27

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

28

Toro 1-653598-03

CLAMP-SEAL

$80.99

$

Usually ships in 3-6 days

0

29

Toro 1-653397-03

STIFFENER-BAGGER, TOP

$83.99

$

Usually ships in 3-6 days

0

30

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

31

Toro 1-653400-03

SUPPORT-SCREEN

$87.99

$

Usually ships in 3-6 days

0

32

Toro 1-653519

ANCHOR-LATCH

$88.99

$

Usually ships in 3-6 days

0

33

Toro 1-653535

REINFORCEMENT-LATCH

$49.99

$

Usually ships in 3-6 days

0

34

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

35

Toro 116-2804

EXHAUST DIVERTER ASM

$186.99

$

Usually ships in 3-6 days

0

36

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0
