78560 - Toro Triple Bagger for Z Master Pro 7500-D Series Mower (SN: 400000000 - 999999999) Bagger Hood Assembly No. 126-8693 Parts Diagram

Triple Bagger for Z Master Pro 7500-D Series Mower

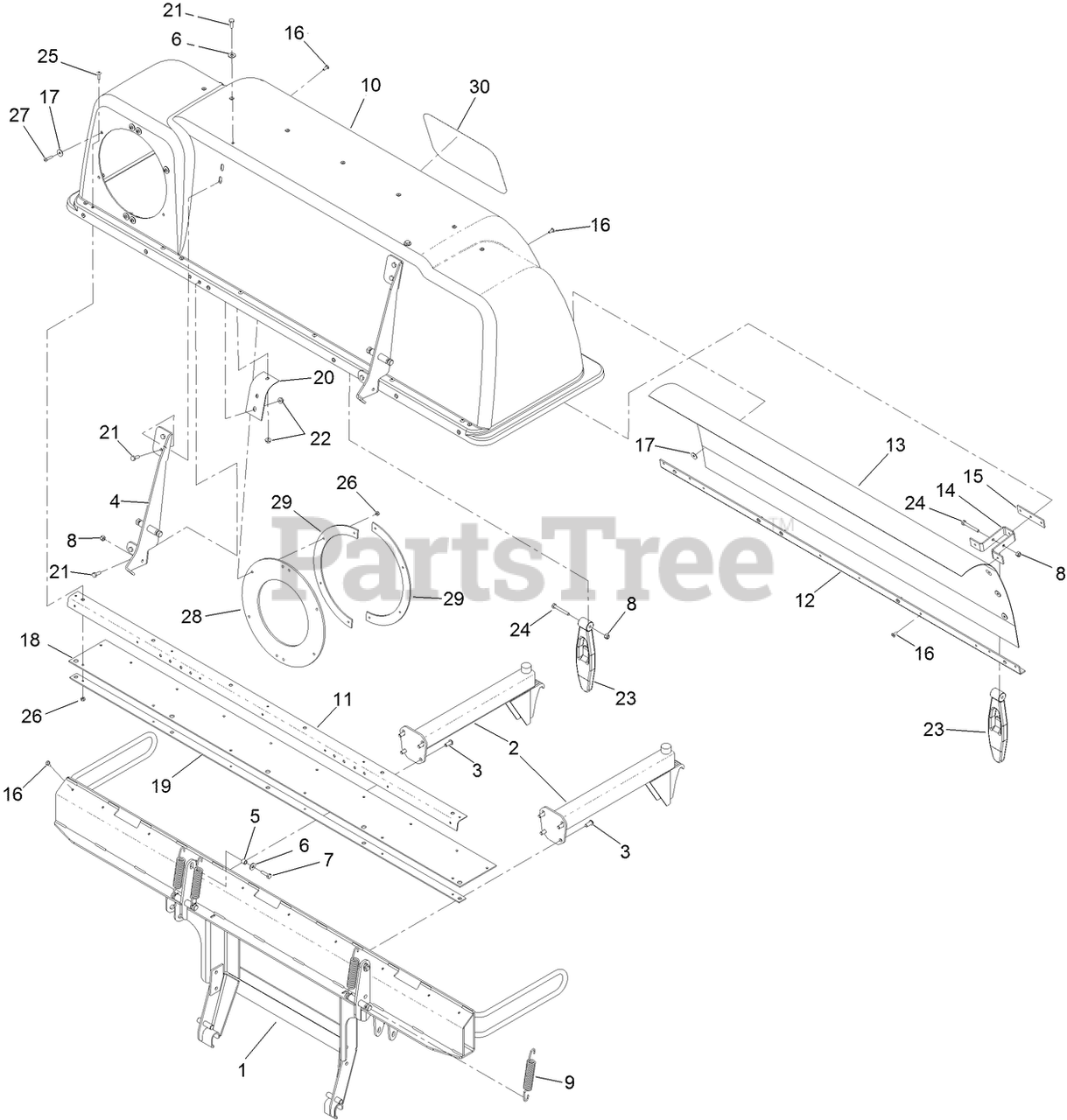

Bagger Hood Assembly No. 126-8693 Parts Diagram

  • Title

1

Toro 126-8224-03

FRAME-3-BAG

$1065.99

$

Usually ships in 3-6 days

0

2

Toro 103-5166

BAG SUPPORT ASM

$164.99

$

Usually ships in 3-6 days

0

3

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

4

Toro 109-8351-03

HINGE

$101.99

$

Usually ships in 3-6 days

0

5

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-653544

SPRING-EXTENSION

$8.49

$

In Stock, only 2 left!

0

10

Toro 110-3927

HOOD-BAGGER, TRIPLE

$667.99

$

Usually ships in 3-6 days

0

11

Toro 103-0382-03

STIFFENER-BAGGER, TOP

$66.99

$

Usually ships in 3-6 days

0

12

Toro 103-0380-03

SUPPORT-SCREEN

$58.99

$

Usually ships in 3-6 days

0

13

Toro 103-0440

SCREEN-BAGGER

$30.99

$

Usually ships in 3-6 days

0

14

Toro 103-0379

BRACKET-MOUNT

$42.99

$

Usually ships in 3-6 days

0

15

Toro 103-0376

PLATE-LATCH, REINFORCEMENT

$9.49

$

Usually ships in 3-6 days

0

16

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

18

Toro 103-0451

SEAL-HINGE

$281.99

$

Usually ships in 3-6 days

0

19

Toro 103-0452-03

PLATE-BACKING

$41.99

$

Usually ships in 3-6 days

0

20

Toro 103-0391

REINFORCEMENT-HOOD, BAGGER

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

23

Toro 1-653403

LATCH

$80.99

$

In Stock, Qty 6

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

28

Toro 103-0439

SEAL-TUBE

$45.99

$

In Stock, only 2 left!

0

29

Toro 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0

30

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0
