78559 - Toro ROPS Kit for Z Master 8000 Series Mower Roll-Over Protection System Kit No. 130-8459 Parts Diagram

ROPS Kit for Z Master 8000 Series Mower

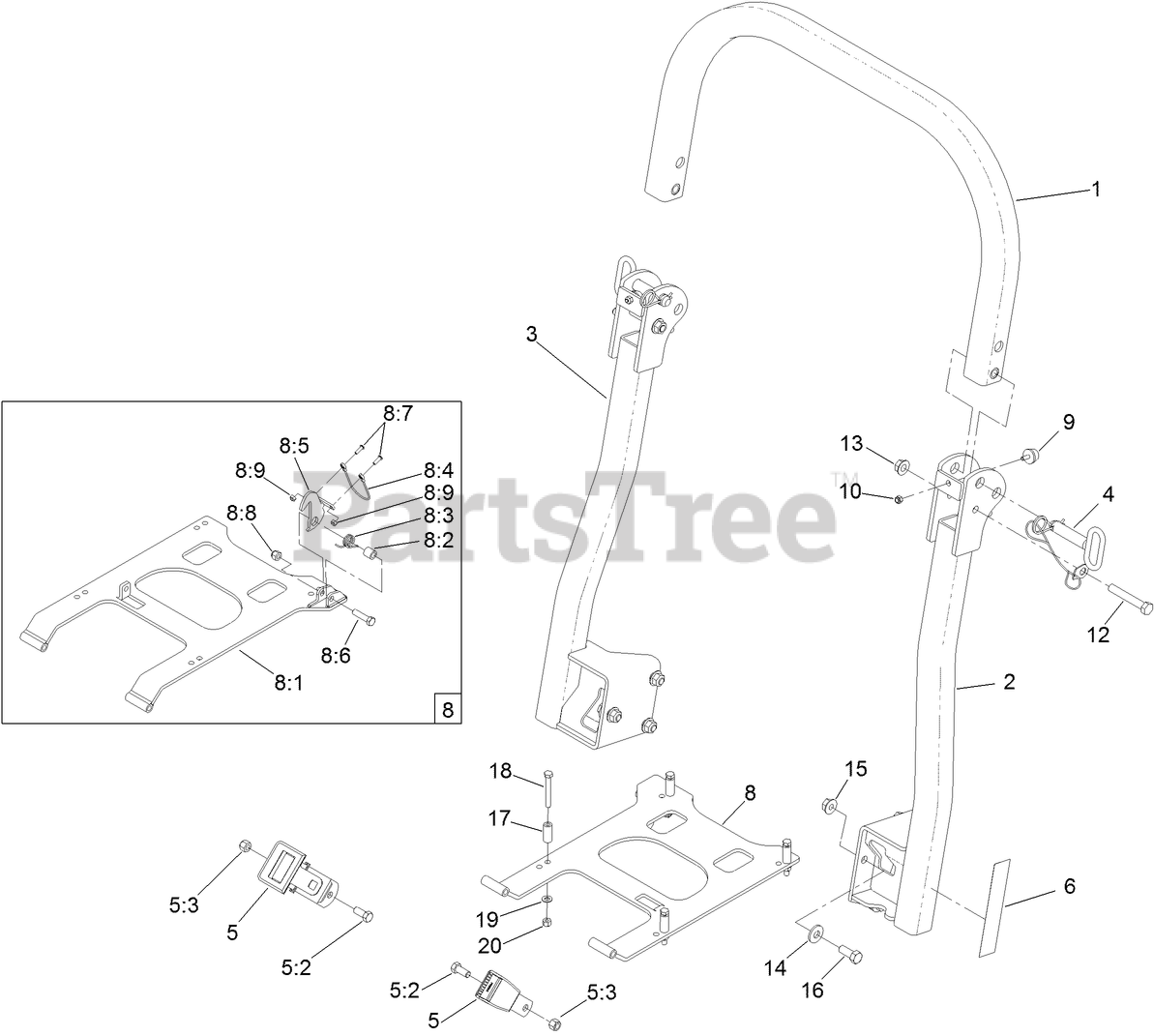

Roll-Over Protection System Kit No. 130-8459 Parts Diagram

  • Title

1

TUBE-UPPER ROPS

Note: Not serviced separately

$

$

Not available

2

TUBE-SUPPORT

Note: Not serviced separately

$

$

Not available

3

TUBE-SUPPORT

Note: Not serviced separately

$

$

Not available

4

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

5

Toro 103-4469

SEATBELT KIT

$167.99

$

Usually ships in 3-6 days

0

5:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

6

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0

8

Toro 126-0070

SEAT FRAME ASM

$377.99

$

Usually ships in 0 days

0

8:1

Toro 126-0018-03

MOUNT-SEAT, ROPS

$307.99

$

Usually ships in 3-6 days

0

8:2

Toro 75-5270

SPACER-KNOB, SEAT

$4.99

$

In Stock, only 3 left!

0

8:3

Toro 110-5831

SPRING-TORSION

$10.99

$

Usually ships in 3-6 days

0

8:4

Toro 126-0522

CABLE GRIP ASM

$14.99

$

Usually ships in 3-6 days

0

8:5

Toro 126-0358

HOOK

$46.99

$

Usually ships in 3-6 days

0

8:6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8:7

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 3 left!

0

8:8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8:9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

10

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

12

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

13

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

14

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

15

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

16

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

17

Toro 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

18

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
