78553 - Toro Blower and Drive Kit (SN: 412200000 - 999999999) Blower Drive Assembly Parts Diagram

Blower and Drive Kit

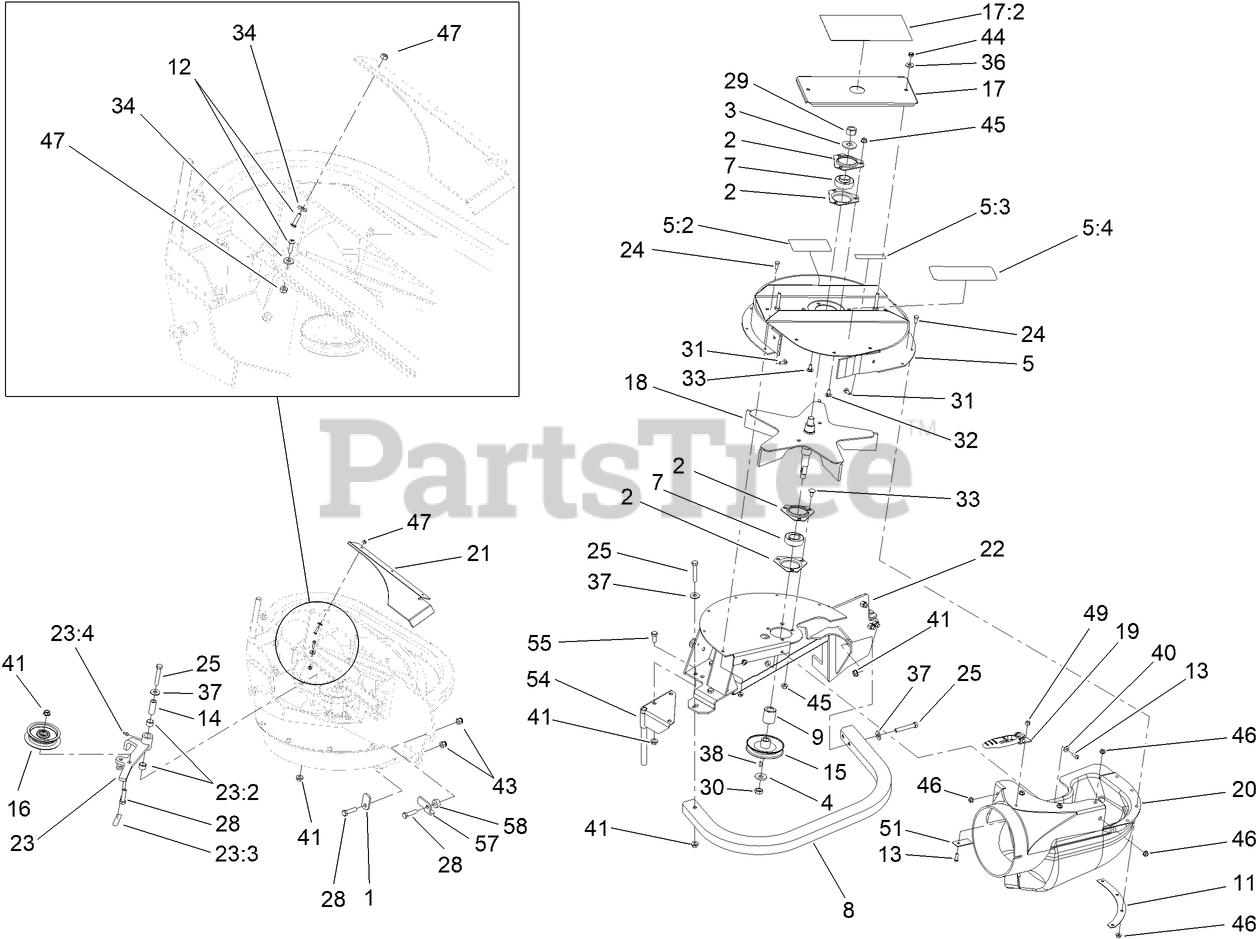

Blower Drive Assembly Parts Diagram

  • Title

1

Toro 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

2

Toro 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 145-8454

HOUSING W/DECAL-UPPER

$483.99

$

Usually ships in 3-6 days

0

5:2

Toro 127-2857

DECAL - VIB, PINCH WARNING

$

$

Currently unavailable

5:3

Toro 112-1770

DECAL

$25.99

$

Usually ships in 3-6 days

0

5:4

Toro 126-9451

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

7

Toro 1-653346

BEARING

$71.99

$

In Stock, Qty 20+

0

8

Toro 103-0458-01

BUMPER

$123.99

$

Usually ships in 3-6 days

0

9

Toro 103-0460

SPACER

$20.99

$

In Stock, only 1 left!

0

11

Toro 103-0461-03

PLATE-BACKING, BLOWER

$15.99

$

In Stock, only 1 left!

0

12

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 2 left!

0

13

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

14

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

15

Toro 103-0456

SHEAVE

$53.99

$

In Stock, only 3 left!

0

16

Toro 103-1103

IDLER-FLAT

$68.99

$

Usually ships in 3-6 days

0

17

Toro 145-8453

COVER-BEARING W/DECAL

$45.99

$

Usually ships in 3-6 days

0

17:2

Toro 126-9595

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

18

Toro 103-0455

IMPELLER

$441.99

$

Usually ships in 3-6 days

0

19

Toro 103-2898

LATCH-RUBBER

$34.99

$

In Stock, Qty 6

0

20

Toro 109-1134

CHUTE-BLOWER

$360.99

$

Usually ships in 3-6 days

0

21

Toro 110-0328-03

PLATE-BOTTOM

$77.99

$

Usually ships in 3-6 days

0

22

Toro 110-0329-03

MOUNT-BLOWER

$578.99

$

Usually ships in 3-6 days

0

23

Toro 145-8455

IDLER ARM W/BUSHINGS

$152.99

$

Usually ships in 3-6 days

0

23:2

Toro 1-653600

BUSHING

$20.99

$

In Stock, only 3 left!

0

23:3

Toro 126-4659

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

23:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

31

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

32

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

34

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

36

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

45

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

47

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

51

Toro 103-3093

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

54

Toro 103-0445-03

PIN-MOUNT

$72.99

$

In Stock, only 2 left!

0

55

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

57

Toro 112-1788

LATCH-STOP

$27.99

$

Usually ships in 3-6 days

0

58

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0
