78552 - Toro Blower and Drive Kit (SN: 412090000 - 999999999) Blower Assembly Parts Diagram

Blower and Drive Kit

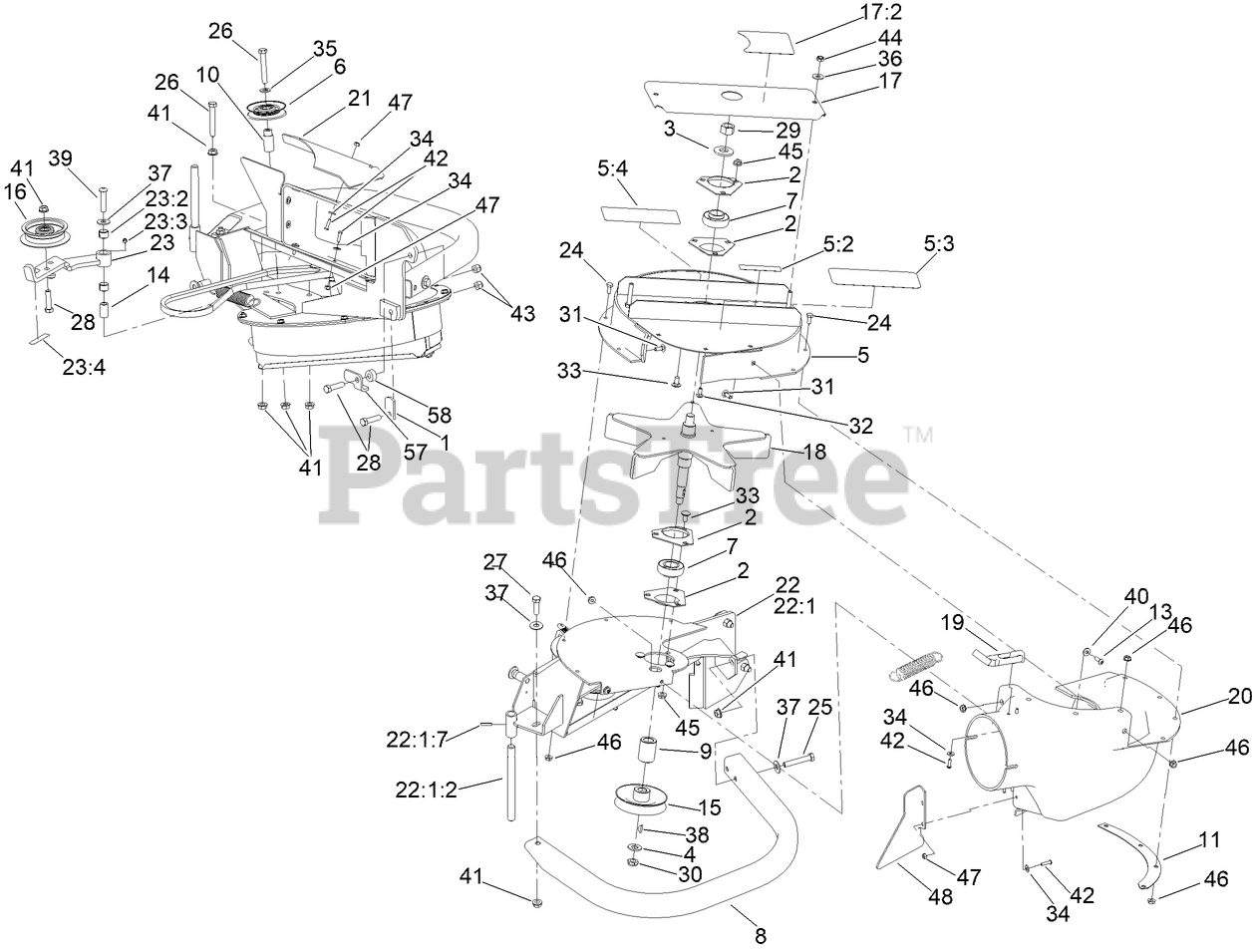

Blower Assembly Parts Diagram

  • Title

1

Toro 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

2

Toro 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 147-2359

HOUSING W/DECAL-UPPER

$465.99

$

Usually ships in 0 days

0

5:2

Toro 127-2857

DECAL - VIB, PINCH WARNING

$

$

Currently unavailable

5:3

Toro 112-1770

DECAL

$25.99

$

Usually ships in 3-6 days

0

5:4

Toro 126-9451

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

6

Toro 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

0

7

Toro 1-653346

BEARING

$71.99

$

In Stock, Qty 20+

0

8

Toro 109-1122-01

BUMPER

$119.99

$

In Stock, only 1 left!

0

9

Toro 1-653365

SPACER

$27.99

$

In Stock, only 1 left!

0

10

Toro 1-653366

HUB

$25.99

$

In Stock, only 1 left!

0

11

Toro 1-653596-03

PLATE-BACKING, BLOWER

$50.99

$

In Stock, only 1 left!

0

13

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

14

Toro 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

0

15

Toro 112-2345

PULLEY

$126.99

$

Usually ships in 3-6 days

0

16

Toro 103-1103

IDLER-FLAT

$68.99

$

Usually ships in 3-6 days

0

17

Toro 145-1953

COVER-BEARING, W/DECAL

$38.99

$

Usually ships in 0 days

0

17:2

Toro 126-9595

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

18

Toro 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

0

19

Toro 103-4080

LATCH-RUBBER

$33.99

$

In Stock, Qty 5

0

20

Toro 103-4171

CHUTE-BLOWER, SMALL

$347.99

$

Usually ships in 3-6 days

0

21

Toro 112-1761-03

PLATE-BOTTOM

$77.99

$

Usually ships in 3-6 days

0

22

Toro 110-0334-03

BLOWER MOUNT ASM

$663.99

$

Usually ships in 3-6 days

0

22:1

BLOWER-MOUNT

Note: Not serviced separately

$

$

Not available

22:1:2

Toro 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

22:1:7

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

23

Toro 117-0345

IDLER ARM ASM W/BUSHINGS

$180.99

$

Usually ships in 3-6 days

0

23:2

Toro 1-653600

BUSHING

$20.99

$

In Stock, only 3 left!

0

23:3

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

23:4

Toro 126-4659

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

31

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

32

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

34

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

39

Toro 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

0

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 2 left!

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

45

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

47

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

48

Toro 112-1762-03

PLATE-FILLER, REAR

$43.99

$

In Stock, only 1 left!

0

57

Toro 112-1787

LATCH-STOP

$27.99

$

Usually ships in 3-6 days

0

58

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0
