Toro 78552 - Toro Blower and Drive Kit (SN: 313000001 - 313999999) (2013) BLOWER ASSEMBLY Parts Lookup with Diagrams

1

Toro 1-353054

LATCH-CATCHER, GRASS

$8.49

$

In Stock, only 2 left!

2

Toro 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

3

Toro 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

4

Toro 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 14

5

Toro 112-1771

UPPER HOUSING ASM

$821.99

$

Usually ships in 3-6 days

5:2

Toro 106-3339

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

5:3

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 2 left!

5:4

Toro 112-1770

DECAL

$26.99

$

Usually ships in 3-6 days

6

Toro 1-653322

IDLER-INSIDE

$68.99

$

In Stock, Qty 5

7

Toro 1-653346

BEARING

$76.99

$

In Stock, Qty 20+

8

Toro 109-1122-01

BUMPER

$126.99

$

In Stock, only 1 left!

9

Toro 1-653365

SPACER

$28.99

$

In Stock, only 2 left!

10

Toro 1-653366

HUB

$26.99

$

In Stock, Qty 6

11

Toro 1-653596-03

PLATE-BACKING, BLOWER

$53.99

$

In Stock, only 1 left!

13

Toro 3274-69

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

14

Toro 103-0130

BUSHING-PIVOT, IDLER

$19.99

$

In Stock, only 3 left!

15

Toro 112-2345

PULLEY

$134.99

$

Usually ships in 3-6 days

16

Toro 103-1103

IDLER-FLAT

$72.99

$

In Stock, only 2 left!

17

Toro 112-1772

BEARING COVER ASM

$144.99

$

Usually ships in 3-6 days

17:2

Toro 103-3508

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

18

Toro 103-3815

IMPELLER

$328.99

$

In Stock, only 3 left!

19

Toro 103-4080

LATCH-RUBBER

$36.99

$

In Stock, Qty 10

20

Toro 103-4171

CHUTE-BLOWER, SMALL

$368.99

$

Usually ships in 3-6 days

21

Toro 112-1761-03

PLATE-BOTTOM

$82.99

$

Usually ships in 3-6 days

22

Toro 110-0334-03

BLOWER MOUNT ASM

$703.99

$

Usually ships in 3-6 days

22:1

BLOWER-MOUNT

Note: Not serviced separately

$

Not available 

22:1:2

Toro 1-353050

SHAFT-CATCHER, GRASS

$18.99

$

In Stock, only 2 left!

22:1:7

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, Qty 5

23

Toro 117-0345

IDLER ARM ASM W/BUSHINGS

$190.99

$

Usually ships in 3-6 days

23:2

Toro 1-653600

BUSHING

$21.99

$

In Stock, Qty 6

23:3

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

23:4

Toro 1-653558

DECAL-WARNING

$7.99

$

Usually ships in 3-6 days

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

26

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

27

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

29

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

30

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 16

31

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

32

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

33

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

34

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

36

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

37

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

38

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

39

Toro 3274-107

SCREW-HSBH

$5.49

$

In Stock, Qty 14

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

41

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

42

Toro 3274-39

SCREW-HSBH

$6.49

$

In Stock, only 2 left!

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

44

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

45

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

46

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

47

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

48

Toro 112-1762-03

PLATE-FILLER, REAR

$45.99

$

In Stock, only 1 left!

57

Toro 112-1787

LATCH-STOP

$28.99

$

Usually ships in 3-6 days

58

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

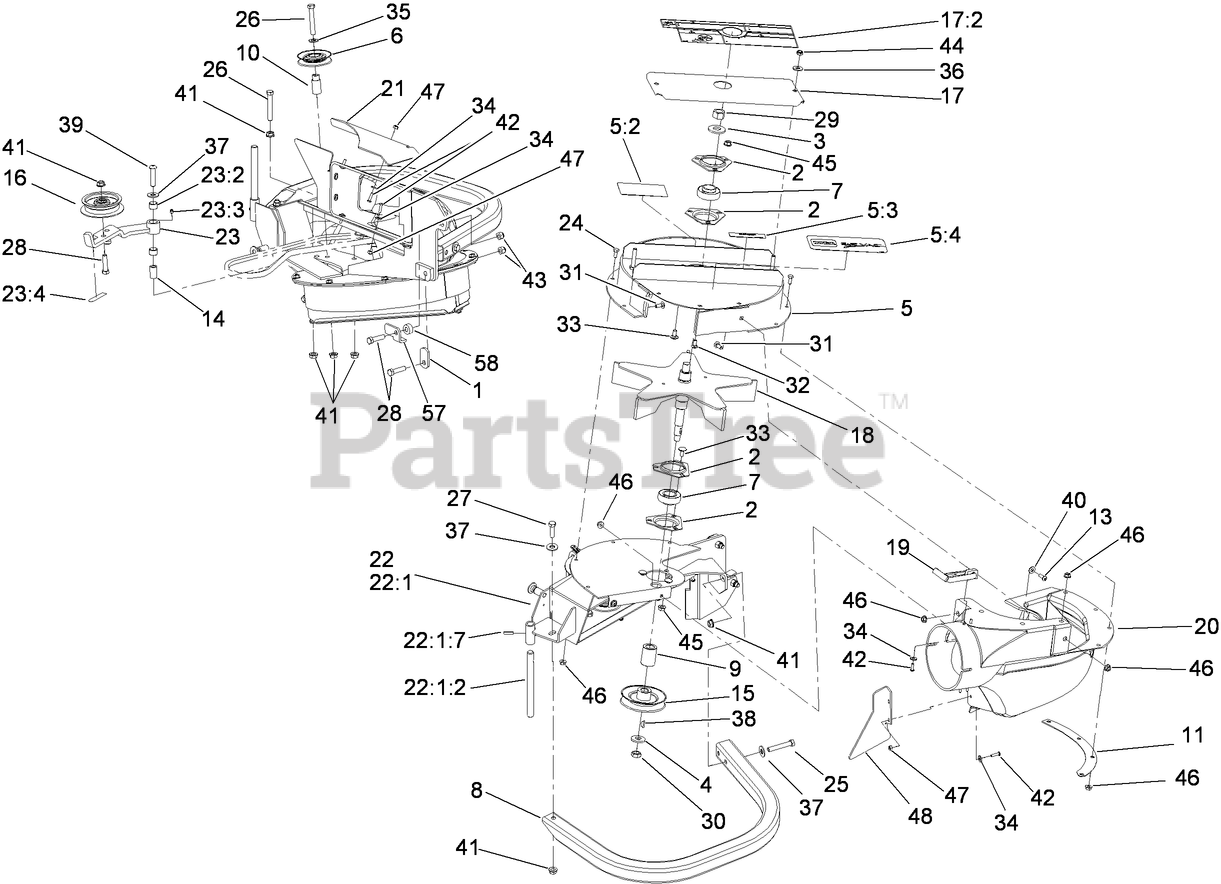

78552 - Toro Blower and Drive Kit (SN: 313000001 - 313999999) (2013) BLOWER ASSEMBLY Parts Diagram

BLOWER ASSEMBLY Parts Diagram
