78545 - Toro 72" DFS E-Z Vac Collection System (SN: 315000001 - 315999999) (2015) TUBE ASSEMBLY Parts Diagram

72" DFS E-Z Vac Collection System

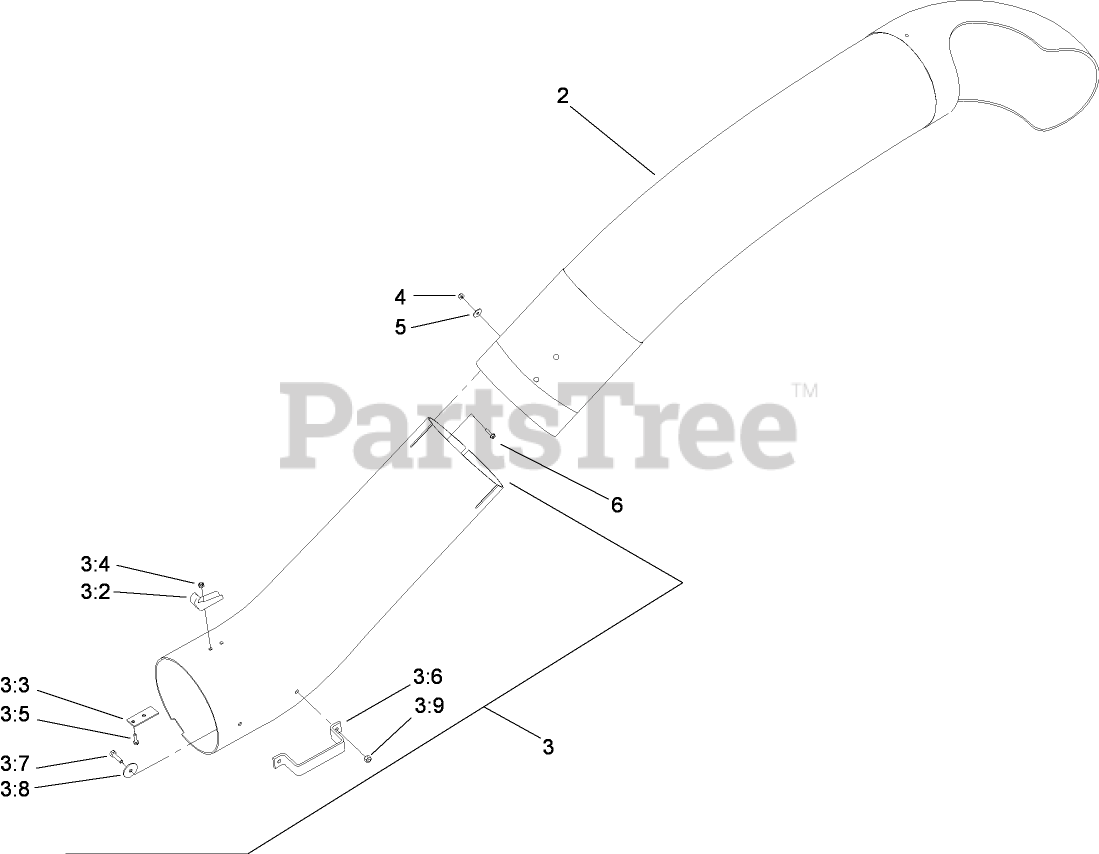

TUBE ASSEMBLY Parts Diagram

  • Title
2

Toro 109-1968

TUBE-UPPER

$354.99

$

Usually ships in 3-6 days

0

3

Toro 109-1973

LOWER TUBE ASM

$322.99

$

Usually ships in 3-6 days

0

3:2

Toro 103-2897

LATCH-CATCH

$8.49

$

In Stock, only 3 left!

0

3:3

Toro 103-3079

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

3:4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3:5

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

3:6

$15.99

$

In Stock, only 1 left!

0

3:7

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3:8

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

3:9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

6

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0
