78544 - Toro 60" DFS E-Z Vac Collection System (SN: 310000001 - 310999999) (2010) BAGGER ASSEMBLY Parts Diagram

60" DFS E-Z Vac Collection System

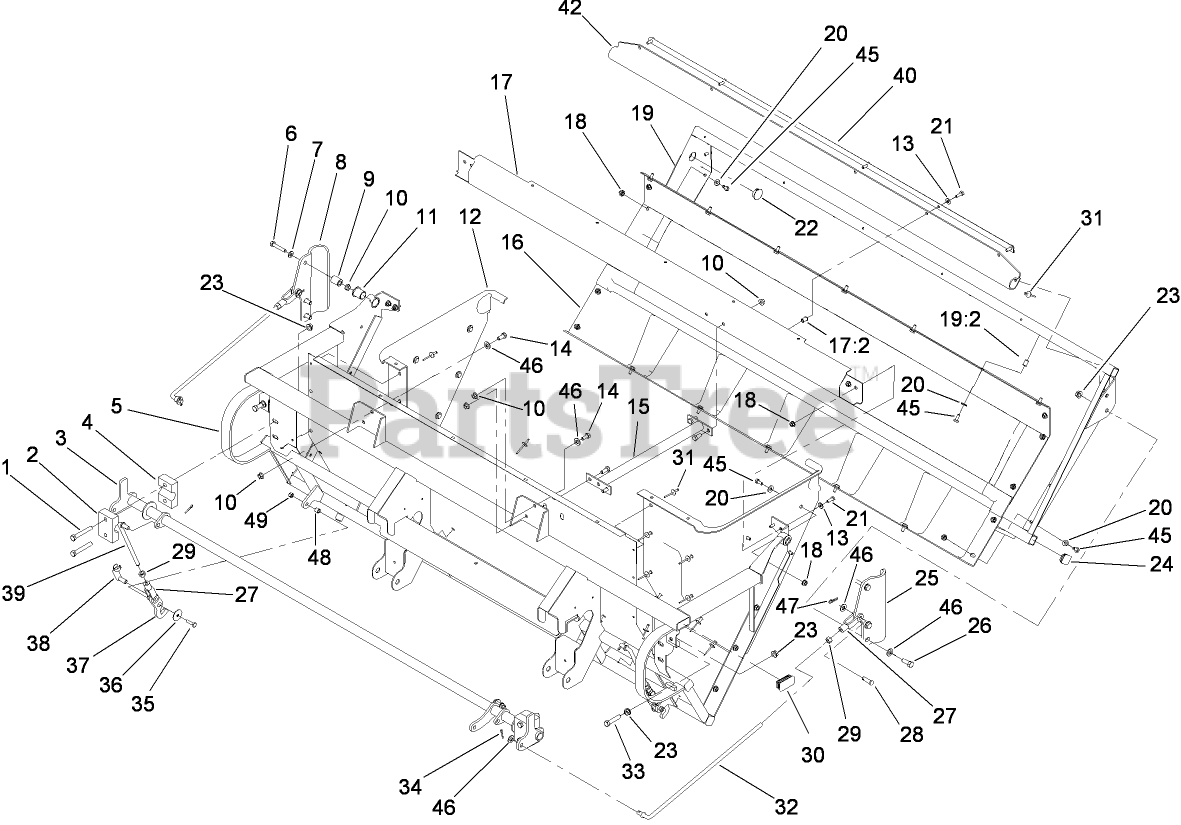

BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 103-8057

BLOCK-BEARING

$67.99

$

Usually ships in 3-6 days

0

3

Toro 103-2412-03

LINK-INTERMEDIATE

$300.99

$

Usually ships in 3-6 days

0

4

Toro 103-2409

HALF-BLOCK, BEARING
(Superseded to 103-8057)

$67.99

$

Usually ships in 3-6 days

0

5

Toro 103-4742-03

UPRIGHT-BAGGER

$1273.99

$

Usually ships in 3-6 days

0

6

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 103-3331-03

ARM-HINGE, RH

$63.99

$

Usually ships in 3-6 days

0

9

Toro 103-2361

PIN-PIVOT, HINGE

$20.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 103-2377

Bushing

$9.49

$

In Stock, only 3 left!

0

12

Toro 103-7827

PANEL-BAGGER, RH

$192.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 103-2414-03

SUPPORT

$60.99

$

Usually ships in 3-6 days

0

16

Toro 103-2383

BAG AND BOTTOM PANEL ASM

$380.99

$

Usually ships in 3-6 days

0

17

Toro 103-2710

REAR CROSSMEMBER ASM

Note: Not serviced separately

$192.99

$

Usually ships in 3-6 days

0

17:2

Toro 32148-6

INSERT-NUT

$2.49

$

Usually ships in 3-6 days

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 103-2737

DOOR ASM

$766.99

$

Usually ships in 3-6 days

0

19:2

Toro 32148-6

INSERT-NUT

$2.49

$

Usually ships in 3-6 days

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 103-8018

PLUG-DOME

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 103-3202

CAP

$1.49

$

Usually ships in 3-6 days

0

25

Toro 103-3332

ARM-HINGE, LH
(Superseded to 103-3332-03)

$63.99

$

Usually ships in 3-6 days

0

26

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

28

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

29

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

30

Toro 103-3201

CAP

$3.49

$

Usually ships in 3-6 days

0

31

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

32

Toro 103-2365

LINK-HINGE

$17.99

$

In Stock, only 1 left!

0

33

Toro 323-53

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

34

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

35

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

36

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

37

Toro 103-3191-03

Latch

$23.99

$

Usually ships in 3-6 days

0

38

Toro 103-2399

Pin-Spring, Clevis

$6.99

$

In Stock, only 1 left!

0

39

Toro 103-2413

LINK-HANDLE

$14.99

$

In Stock, only 2 left!

0

40

Toro 103-3010-03

STRAP-HOLD DOWN

$71.99

$

Usually ships in 3-6 days

0

42

Toro 103-2360

SEAL-DOOR HINGE

$140.99

$

Usually ships in 3-6 days

0

45

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

48

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
