78533 - Toro 52" E-Z Vac Bagger (SN: 312000001 - 312999999) (2012) TWIN HOOD AND FRAME ASSEMBLY Parts Diagram

52" E-Z Vac Bagger

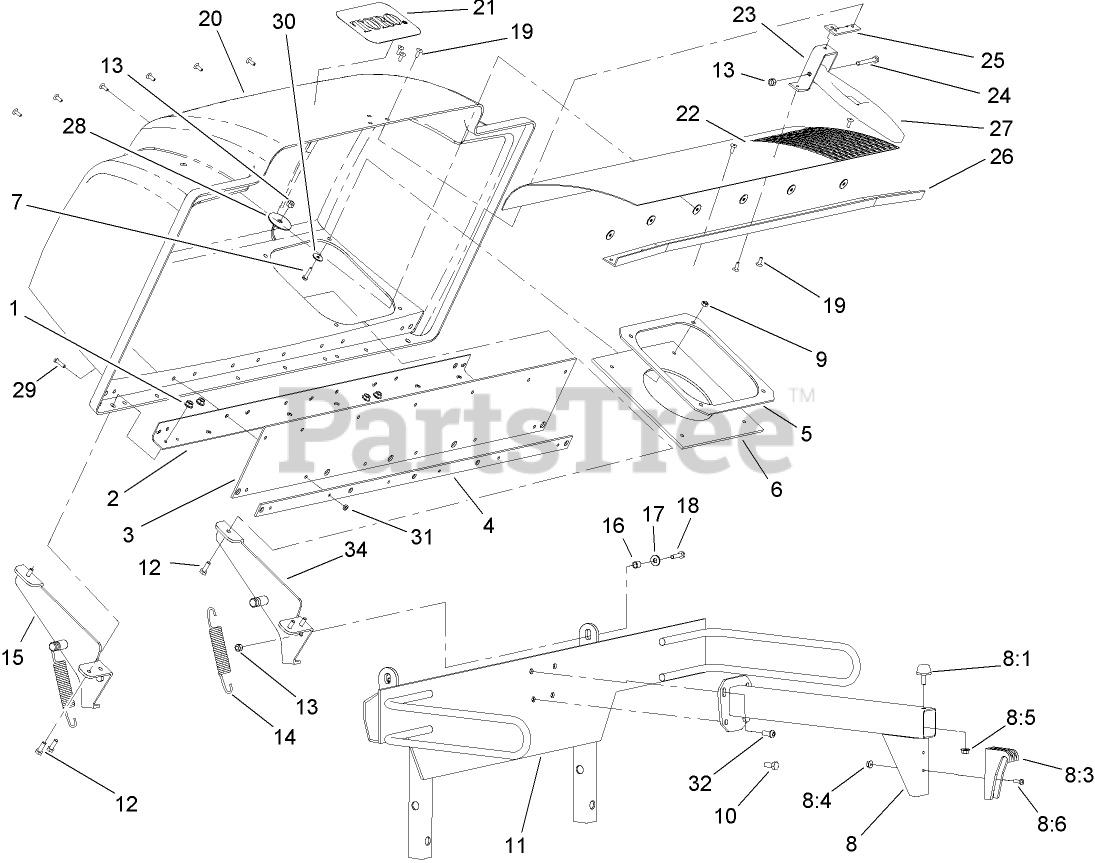

TWIN HOOD AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

2

Toro 1-653397-03

STIFFENER-BAGGER, TOP

$83.99

$

Usually ships in 3-6 days

0

3

Toro 103-1346

SEAL-HOOD

$82.99

$

Usually ships in 3-6 days

0

4

Toro 1-653528-03

PLATE-BACKING

$68.99

$

Usually ships in 3-6 days

0

5

Toro 1-653598-03

CLAMP-SEAL

$80.99

$

Usually ships in 3-6 days

0

6

Toro 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 4 left!

0

7

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

8

Toro 103-5166

BAG SUPPORT ASM

$164.99

$

Usually ships in 3-6 days

0

8:1

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

8:3

$37.99

$

In Stock, Qty 7

0

8:4

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

8:5

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

8:6

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 14

0

11

Toro 103-4741-03

UPRIGHT-BAGGER

$687.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 16

0

14

Toro 1-653544

SPRING-EXTENSION

$8.49

$

In Stock, only 2 left!

0

15

Toro 103-0825-03

HINGE-RH

$106.99

$

Usually ships in 3-6 days

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20

Toro 112-2316

HOOD ASM

$737.99

$

Usually ships in 3-6 days

0

21

$106.99

$

Usually ships in 3-6 days

0

22

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

23

Toro 1-653519

ANCHOR-LATCH

$88.99

$

Usually ships in 3-6 days

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 1-653535

REINFORCEMENT-LATCH

$49.99

$

Usually ships in 3-6 days

0

26

Toro 1-653400-03

SUPPORT-SCREEN

$87.99

$

Usually ships in 3-6 days

0

27

$80.99

$

In Stock, Qty 6

0

28

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

30

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

31

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

32

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

34

Toro 103-0826-03

HINGE-LH

$106.99

$

Usually ships in 3-6 days

0
