78521 - Toro Chute Gate Kit CHUTE GATE ASSEMBLY Parts Diagram

Chute Gate Kit

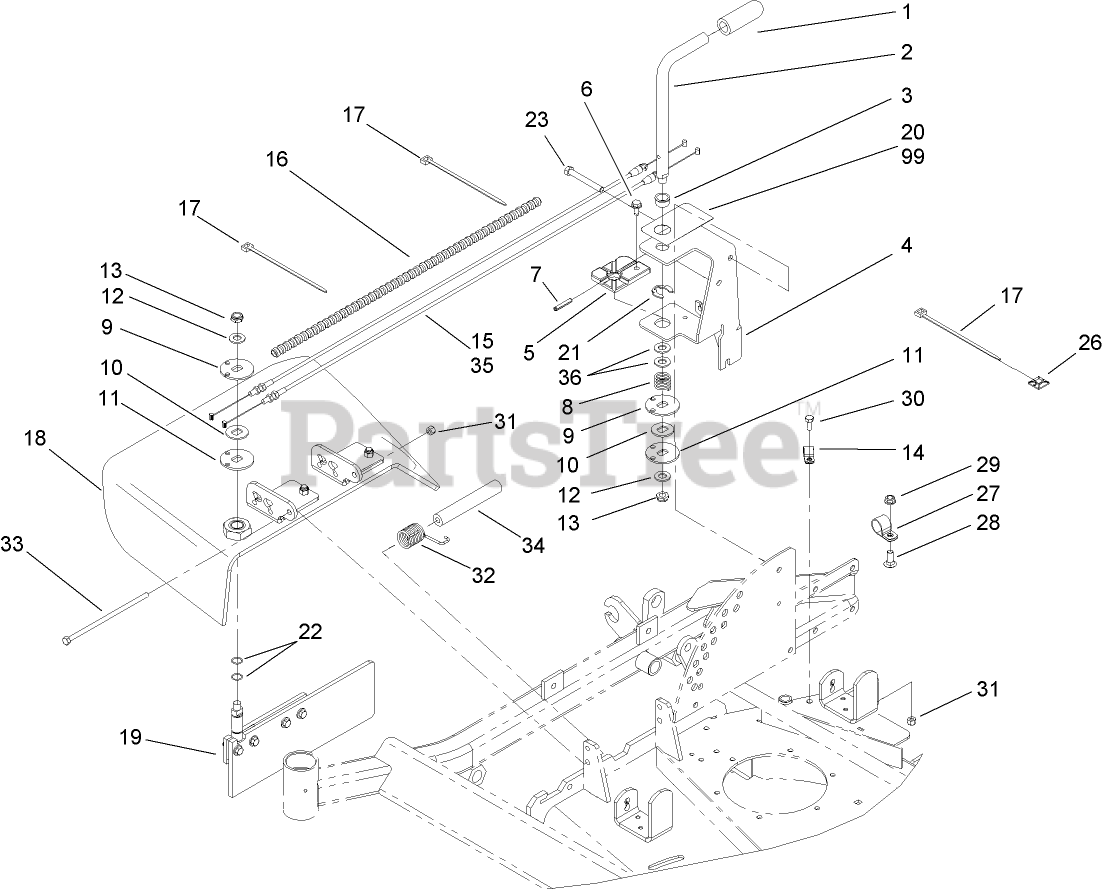

CHUTE GATE ASSEMBLY Parts Diagram

  • Title
1

$14.99

$

Usually ships in 3-6 days

0

2

Toro 108-2230

HANDLE

$78.99

$

Usually ships in 3-6 days

0

3

Toro 256-252

BEARING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

4

Toro 108-7249-01

BRACKET-MOUNT

$151.99

$

Usually ships in 3-6 days

0

5

Toro 108-2231

BLOCK-DETENT

$22.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

8

Toro 87-3660

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

9

Toro 108-7218

PULLEY-TOP

$10.99

$

Usually ships in 3-6 days

0

10

Toro 108-7217

PULLEY-MIDDLE

$10.99

$

Usually ships in 3-6 days

0

11

Toro 108-7216

PULLEY-BOTTOM

$10.99

$

Usually ships in 3-6 days

0

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

15

Toro 108-2242

CABLE (Used on 48, 52 and 62 Inch Decks only)

$47.99

$

Usually ships in 3-6 days

0

16

Toro 108-7247

TUBE-CONVOLUTED

$17.99

$

Usually ships in 3-6 days

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 108-2248

RUBBER DEFLECTOR ASM

$475.99

$

Usually ships in 3-6 days

0

19

Toro 107-8558

DOOR ASM

$127.99

$

Usually ships in 3-6 days

0

20

Toro 108-7250

DECAL-GATE, CHUTE

$23.99

$

Usually ships in 3-6 days

0

21

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

22

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

23

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 93-3922

MOUNT-TIE, CABLE

$24.99

$

Usually ships in 3-6 days

0

27

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

28

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

29

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 14

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

33

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

34

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

35

Toro 108-7258

CABLE (Used on 72 Inch Deck only)

$51.99

$

Usually ships in 3-6 days

0

36

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

99

Toro 108-4102

DECAL-GATE, CHUTE (CE)

$28.99

$

Usually ships in 3-6 days

0
