78514 - Toro DFS Vac Collection System (SN: 316000001 - 316999999) (2016) DOOR ASSEMBLY Parts Diagram

DFS Vac Collection System

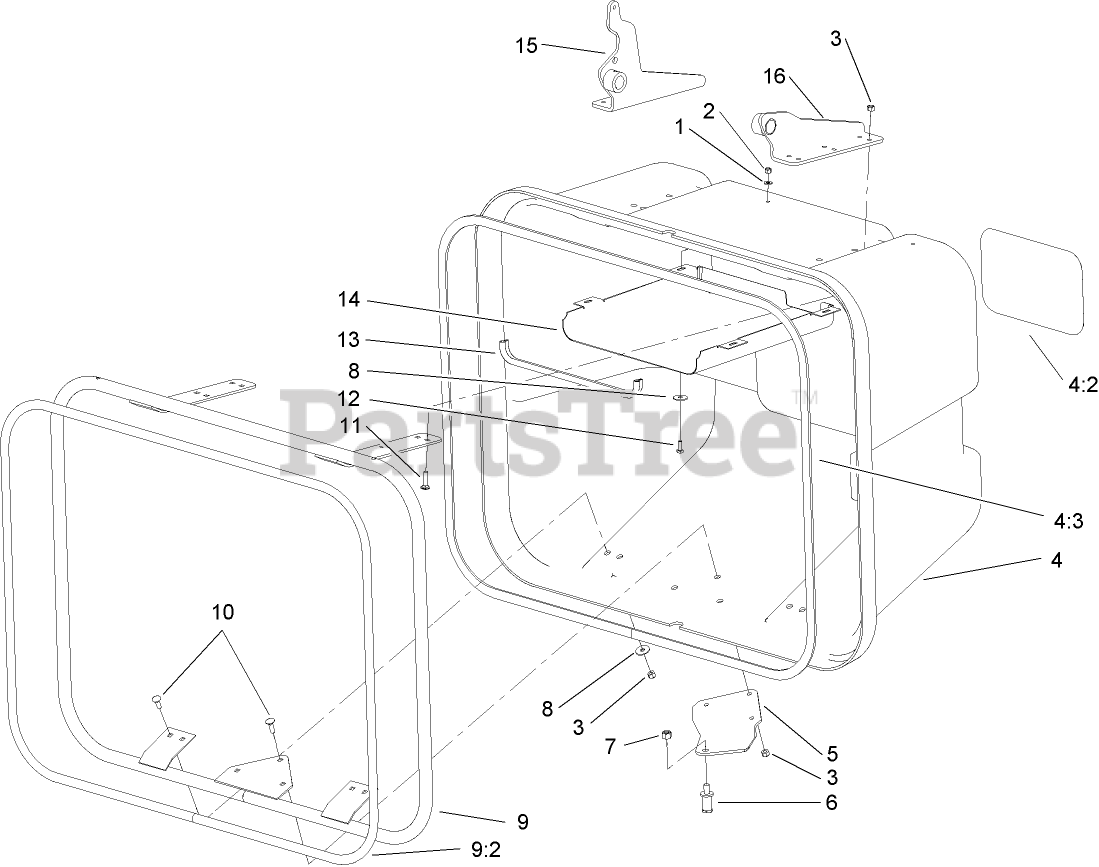

DOOR ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 106-5871

DOOR ASM

$729.99

$

Usually ships in 3-6 days

0

4:2

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

4:3

Toro 105-8198

SEAL-HOPPER

$74.99

$

Usually ships in 3-6 days

0

5

Toro 105-8238-03

BRACKET-LATCH, DOOR

$90.99

$

Usually ships in 3-6 days

0

6

Toro 105-9664

BOLT-STRIKER

$54.99

$

Usually ships in 3-6 days

0

7

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

9

Toro 106-5870

DOOR FRAME ASM

$748.99

$

Usually ships in 3-6 days

0

9:2

Toro 105-8199

SEAL-HOPPER, ROUND

$157.99

$

Usually ships in 3-6 days

0

10

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

11

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-3319

SEAL-TRIM

$31.99

$

Usually ships in 3-6 days

0

14

Toro 106-3309-03

REAR SCREEN ASM

$229.99

$

Usually ships in 3-6 days

0

15

Toro 106-8967-03

RH HINGE ASM

$239.99

$

Usually ships in 3-6 days

0

16

Toro 106-8969-03

LH HINGE ASM

$239.99

$

Usually ships in 3-6 days
