78513 - Toro DFS Vac Collection System for 500 Series Z Master (SN: 260000001 - 260999999) (2006) FAN DRIVE IDLER ASSEMBLY Parts Diagram

DFS Vac Collection System for 500 Series Z Master

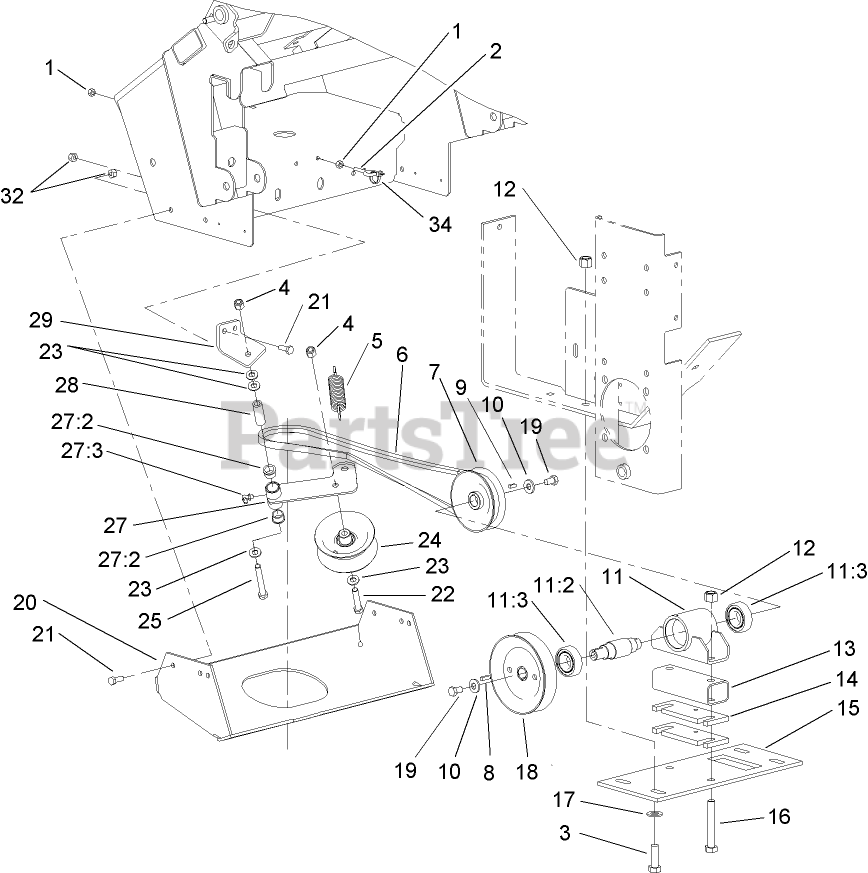

FAN DRIVE IDLER ASSEMBLY Parts Diagram

  • Title
1

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

2

Toro 71-2870

BOLT-EYE

$19.99

$

Usually ships in 3-6 days

0

3

Toro 325-6

SCREW-HH

$3.49

$

In Stock, Qty 5

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

6

Toro 107-1753

V-BELT

$95.99

$

Usually ships in 3-6 days

0

7

Toro 105-7782

PULLEY-DRIVEN

$195.99

$

Usually ships in 3-6 days

0

8

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 17

0

9

Toro 107-1778

KEY-SQUARE

$11.99

$

Usually ships in 3-6 days

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Toro 107-1752

HOUSING ASM

$

$

Not available

11:2

Toro 107-1751

SHAFT-PULLEY, DRIVEN

$

$

Not available

11:3

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

Usually ships in 3-6 days

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 105-9689-03

SPACER-PILLOW BLOCK, TUBULAR

$56.99

$

Usually ships in 3-6 days

0

14

Toro 105-9691-03

SPACER-PILLOW BLOCK

$

$

Not available

15

Toro 107-1774-03

PLATE-SUPPORT

$

$

Not available

16

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 107-1772

PULLEY-DRIVEN

$

$

Not available

19

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

20

Toro 105-8236-03

PLATE-SKID

$388.99

$

Usually ships in 3-6 days

0

21

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

25

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 105-8225

IDLER ARM ASM

$

$

Not available

27:2

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

27:3

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

28

Toro 79-2760

SPACER

$8.99

$

Usually ships in 3-6 days

0

29

Toro 107-3053-03

BRACKET-MOUNT, IDLER

$

$

Not available

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

34

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
