78510 - Toro DFS Vac Collection System for 400 Series Z Master (SN: 280000001 - 280999999) (2008) FAN DRIVE AND IDLER ASSEMBLY Parts Diagram

DFS Vac Collection System for 400 Series Z Master

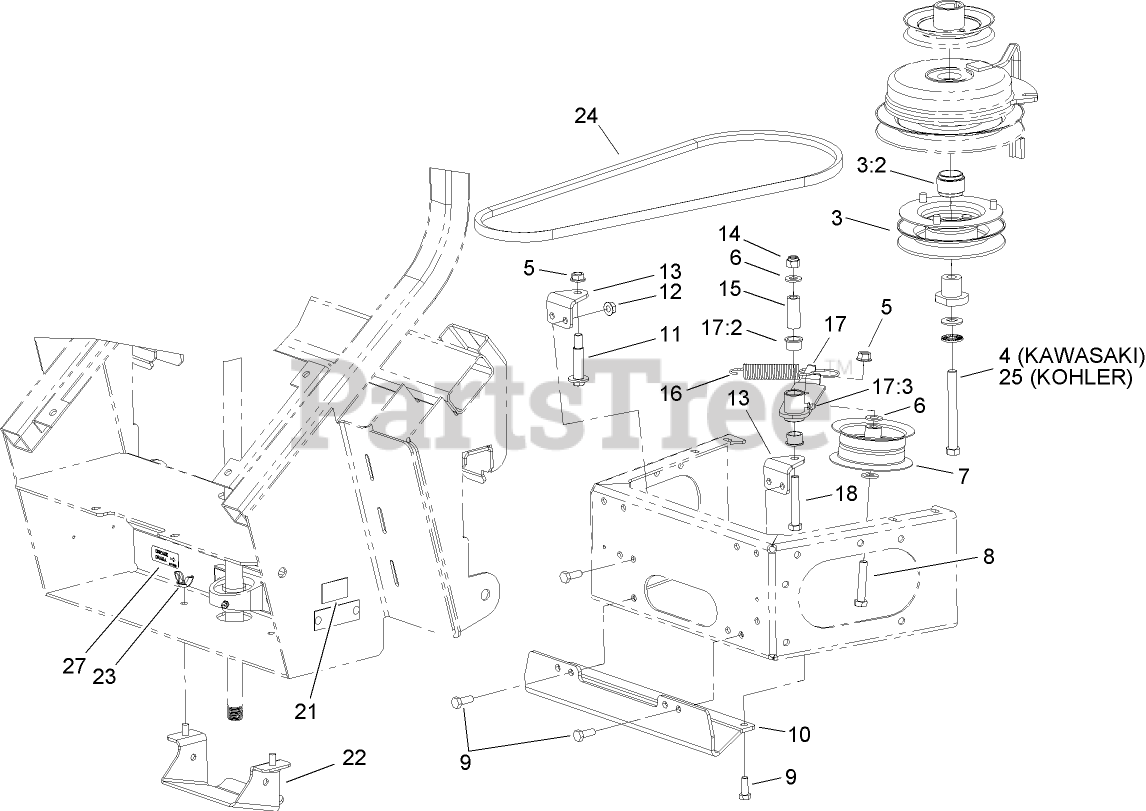

FAN DRIVE AND IDLER ASSEMBLY Parts Diagram

  • Title

3

Toro 106-7139

PULLEY ASM

$681.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-7137

Spacer-Pulley

$120.99

$

Usually ships in 3-6 days

0

4

Toro 3212-18

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

5

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

8

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 106-7121-03

Skid

$

$

Not available

11

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-7146-03

Bracket-Mount, Idler

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 6

0

16

Toro 106-8962

Spring-Extension

$34.99

$

Usually ships in 3-6 days

0

17

Toro 106-7145

IDLER ARM ASM

$

$

Not available

17:2

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

17:3

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

18

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

21

Toro 105-9377

Decal-Conversion, Ce

$

$

Not available

22

Toro 106-7123-03

Pulley Guard ASM

$101.99

$

Usually ships in 3-6 days

0

23

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

24

Toro 88-6260

V-BELT

$49.99

$

In Stock, only 1 left!

0

25

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

27

Toro 107-1613

Decal-Grease

$6.49

$

Usually ships in 3-6 days

0
