78509 - Toro 52" Finishing Kit for Z100 Twin Soft Bagger 52IN FINISHING KIT ASSEMBLY Parts Diagram

52" Finishing Kit for Z100 Twin Soft Bagger

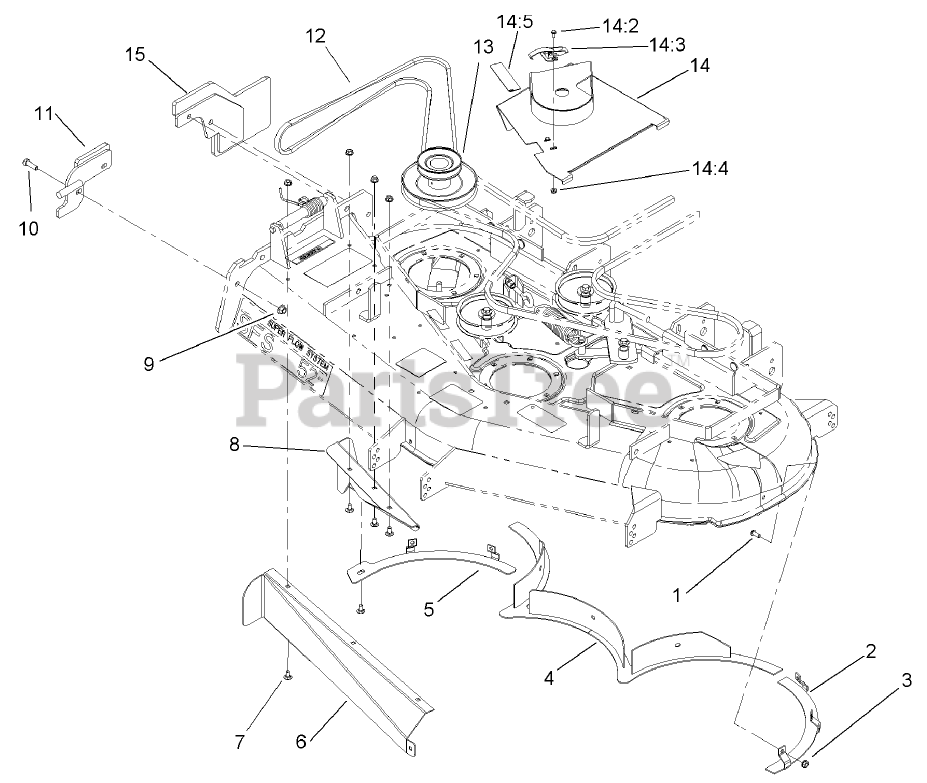

52IN FINISHING KIT ASSEMBLY Parts Diagram

  • Title
1

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

2

Toro 106-3031-01

Baffle-Rear, LH

$

$

Not available

3

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

4

Toro 106-3065-01

Center Baffle ASM
(Superseded to 106-0900-01)

$261.99

$

Usually ships in 3-6 days

0

5

Toro 106-0868-01

Baffle-Rear, RH

$

$

Not available

6

Toro 106-0860-01

BAFFLE-DISCHARGE, FRONT

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

8

Toro 106-0867-01

Baffle-Discharge, Rear

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 106-3382-03

FRONT HINGE ASM

$

$

Not available

12

Toro 106-3038

Belt-V

$82.99

$

Usually ships in 3-6 days

0

13

Toro 105-5898

Double Pulley ASM

$459.99

$

Usually ships in 3-6 days

0

14

Toro 106-3079

Cover ASM

$

$

Not available

14:2

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

14:3

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

14:4

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

14:5

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

15

Toro 106-0827-03

REAR MOUNTING PLATE ASM -

$

$

Not available

16

Toro 106-2096-03

Plate-Template

Note: Not illustrated

$

$

Not available
