78507 - Toro 44" and 52" Twin Soft Bagger, Z100 Z Master (SN: 240000001 - 240999999) (2004) BLOWER AND MOUNTING ASSEMBLY Parts Diagram

44" and 52" Twin Soft Bagger, Z100 Z Master

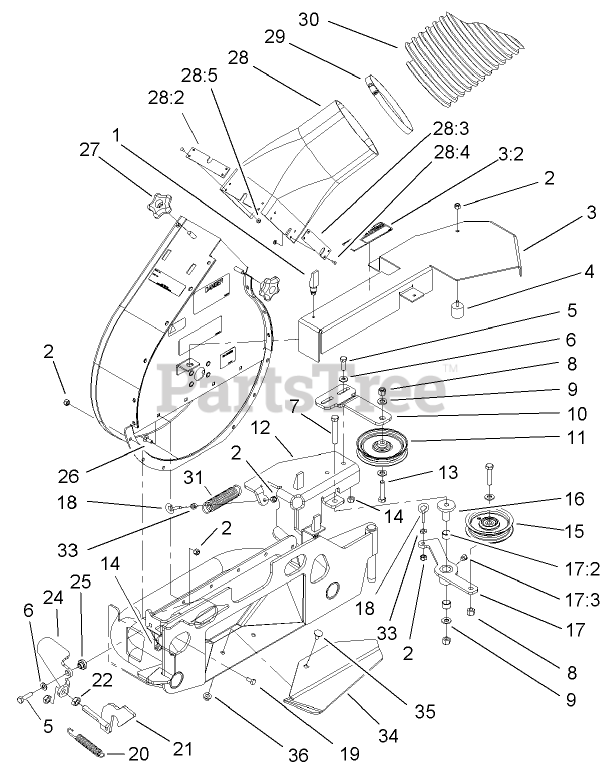

BLOWER AND MOUNTING ASSEMBLY Parts Diagram

  • Title
1

Toro 74-5950

LATCH-SWELL

$23.99

$

In Stock, Qty 10

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 105-5990

BELT COVER ASM

$235.99

$

Usually ships in 3-6 days

0

3:2

Toro 80-8040

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

4

Toro 106-5891

Bumper

$

$

Not available

5

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 105-5986-03

Bracket-Idler

$

$

Not available

11

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 3 left!

0

12

Toro 106-8014-03

TRANSITION ASM
(Superseded to 108-2778-03)

$

$

Not available

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

16

Toro 106-2057

Spacer

$77.99

$

Usually ships in 3-6 days

0

17

Toro 106-2056

Idler Arm ASM

$

$

Not available

17:2

Toro 1-653600

BUSHING

$20.99

$

In Stock, only 3 left!

0

17:3

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

18

Toro 71-2870

BOLT-EYE

$19.99

$

In Stock, only 2 left!

0

19

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 37-8880

SPRING-TRACTION

$18.99

$

Usually ships in 3-6 days

0

21

Toro 106-3400

LATCH ASM

$

$

Not available

22

Toro 3218-4

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

24

Toro 106-3414-01

PEDAL-LATCH

$

$

Not available

25

Toro 105-5996

Spacer

$

$

Not available

26

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

27

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

28

Toro 106-2092

Blower Outlet Adapter ASM

$

$

Not available

28:2

Toro 105-9102

Plate-Adapter, Top

$

$

Not available

28:3

Toro 105-9103

Plate-Adapter, Side

$

$

Not available

28:4

$3.49

$

Usually ships in 3-6 days

0

28:5

Toro 3256-53

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 102528

CLAMP

$13.99

$

Usually ships in 3-6 days

0

30

Toro 105-5875

Hose-Flexible

$

$

Not available

31

Toro 707451

SPRING-EXTENSION
(Superseded to 115-4712)

$14.99

$

In Stock, only 2 left!

0

33

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

34

Toro 106-3420-03

SHELF-BLOWER

$82.99

$

Usually ships in 3-6 days

0

35

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

36

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
