78507 - Toro 44", 48" and 52" Twin Soft Bagger, Z100 and Z400 Z Master (SN: 250000351 - 250999999) (2005) BLOWER HOUSING ASSEMBLY Parts Diagram

44", 48" and 52" Twin Soft Bagger, Z100 and Z400 Z Master

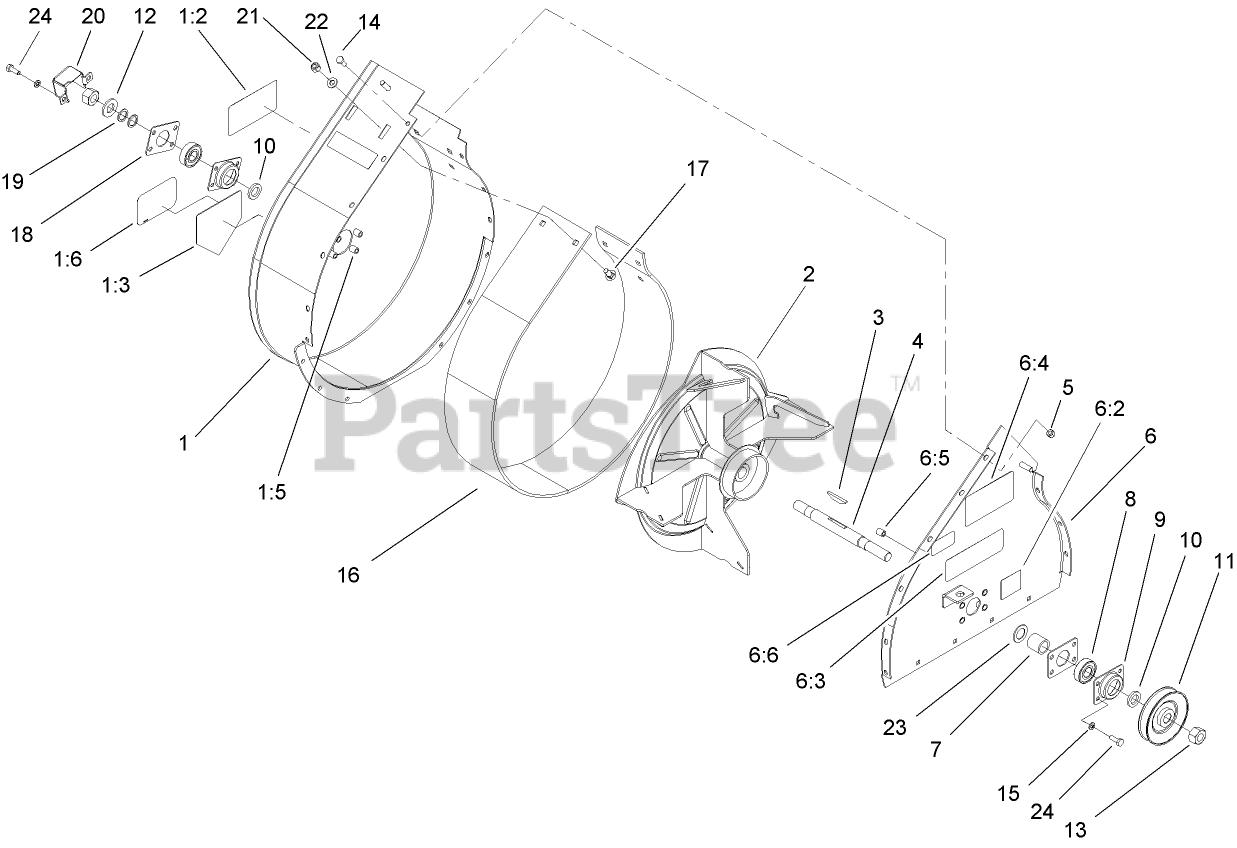

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 106-8016

BLOWER HOUSING ASM

$906.99

$

Usually ships in 3-6 days

0

1:2

Toro 79-0360

DECAL-DANGER

$

$

Not available

1:3

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

1:5

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

1:6

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0

2

Toro 106-8022-03

IMPELLER ASM

$894.99

$

Usually ships in 3-6 days

0

3

$9.49

$

In Stock, only 1 left!

0

4

Toro 105-5893

Shaft-Blower

$139.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 106-8019

COVER PLATE ASM

$

$

Not available

6:2

Toro 88-8950

DECAL-WARNING

$

$

Not available

6:3

Toro 79-0350

DECAL-DANGER

$

$

Not available

6:4

Toro 79-0360

DECAL-DANGER

$

$

Not available

6:5

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

6:6

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

7

Toro 106-2097

Spacer

$37.99

$

Usually ships in 3-6 days

0

8

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

9

Toro 37-6730

CUP-BEARING

$19.99

$

In Stock, only 2 left!

0

10

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 1 left!

0

11

Toro 105-5992

Pulley ASM

$

$

Not available

12

Toro 9202604

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

13

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 130-0287-03

STRIP-WEAR

$400.99

$

Usually ships in 3-6 days

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 63-9700-03

PLATE-COVER

$22.99

$

In Stock, only 3 left!

0

19

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 5

0

20

Toro 106-3076-03

Cover-Shaft

$43.99

$

Usually ships in 3-6 days

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
