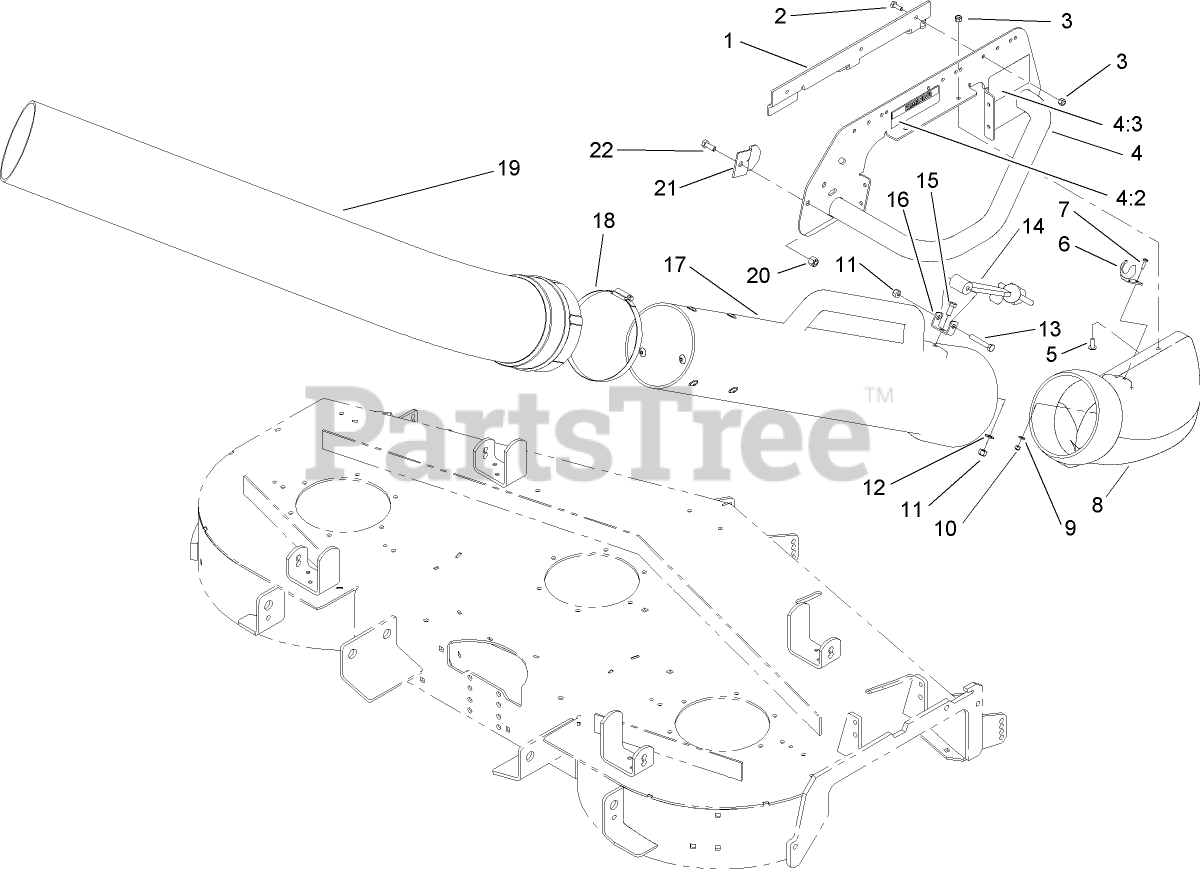

78506 - Toro DFS Vac Collection System for 500 Series Z Master (SN: 240000001 - 240999999) (2004) BOOT AND TUBE ASSEMBY Parts Diagram

DFS Vac Collection System for 500 Series Z Master

BOOT AND TUBE ASSEMBY Parts Diagram

  • Title

1

Toro 104-8573-03

BRACKET-MOUNTING

$100.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 107-1770

MOUTING PLATE ASM

$425.99

$

Usually ships in 3-6 days

0

4:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

4:3

Toro 106-3339

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

5

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

6

Toro 105-9709

BRACKET-HOOD

$34.99

$

Usually ships in 3-6 days

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 105-5531

BOOT

$337.99

$

Usually ships in 3-6 days

0

9

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 105-8155

HOLDDOWN-HOOD

$86.99

$

Usually ships in 3-6 days

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 105-9707

BRACKET-ANCHOR

$

$

Not available

17

Toro 105-5538

TUBE-STRAIGHT

$419.99

$

Usually ships in 3-6 days

0

18

Toro 106-3318

CLAMP-HOSE

$68.99

$

Usually ships in 3-6 days

0

19

Toro 105-8159

TUBE-ELBOW

$420.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 104-8575

Bracket-Clamp

$33.99

$

Usually ships in 3-6 days

0

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+
