78506 - Toro DFS Vac Collection System for 500 Series Z Master (SN: 230000001 - 230999999) (2003) DUMP ARM ASSEMBLY Parts Diagram

DFS Vac Collection System for 500 Series Z Master

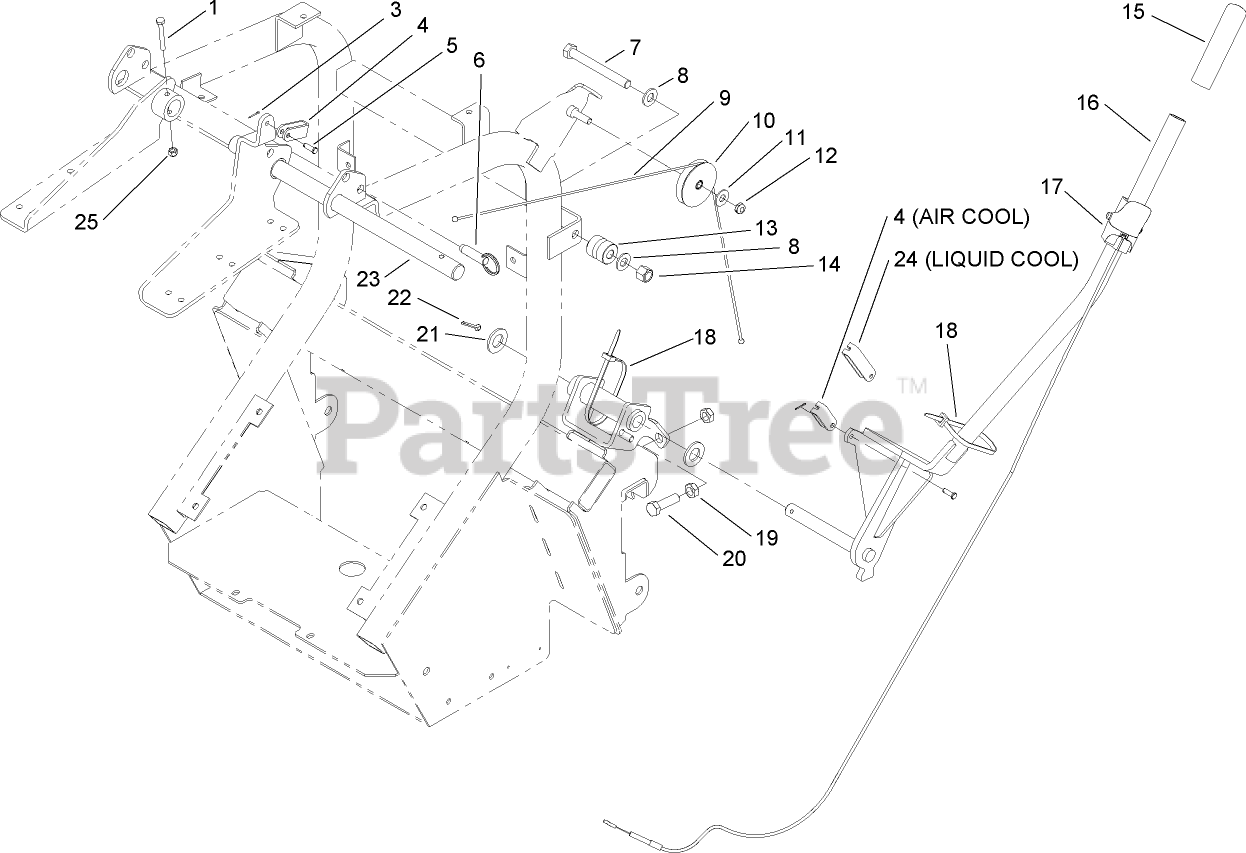

DUMP ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

4

Toro 108145

CLEVIS-SHORT

$39.99

$

Usually ships in 3-6 days

0

5

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

6

Toro 106-7120

PIN-RELEASE, QUICK

$45.99

$

Usually ships in 3-6 days

0

7

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 106-8953

CABLE-DOOR
(Superseded to 107-3081)

$96.99

$

Usually ships in 3-6 days

0

10

Toro 5-2653

PULLEY ASM

$42.99

$

Usually ships in 3-6 days

0

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

13

Toro 105-9675

ROLLER-CABLE

$72.99

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 20+

0

16

Toro 106-8955-03

DUMP ARM ASM

$336.99

$

Usually ships in 3-6 days

0

17

Toro 105-8186

LATCH-CABLE, DUMP

$143.99

$

Usually ships in 3-6 days

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

20

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

21

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

22

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

23

Toro 106-7117

SHAFT-HINGE

$136.99

$

Usually ships in 3-6 days

0

24

Toro 108143

CLEVIS-LONG

$54.99

$

Usually ships in 3-6 days

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
