785030 - Gravely Attachment Adapter for 2-Wheel Tractor ATTACHMENT ADAPTER KIT Parts Diagram

Attachment Adapter for 2-Wheel Tractor

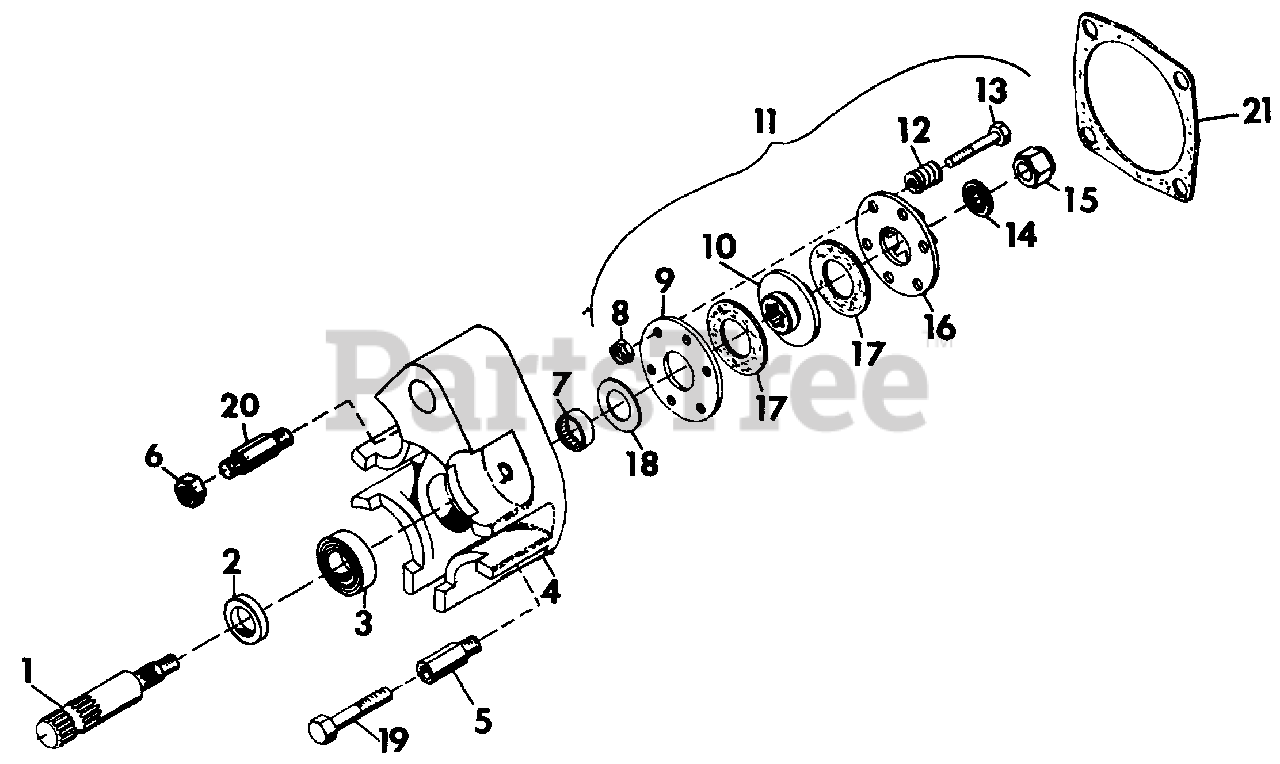

ATTACHMENT ADAPTER KIT Parts Diagram

  • Title
1

Gravely 022482

Shaft, Quick Hitch
(Superseded to 08523600)

$121.99

$

Usually ships in 4-12 days

0

2

Gravely 011841

Ring, Retaining
(Superseded to 08585900)

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 032050

Bearing, Ball 1.000 x 2.000 x .562
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

4

Gravely 034761

Adapter, Quick Hitch
(Superseded to 08537400)

$

$

Not available

5

Gravely 022479

Stud, Quick Hitch
(Superseded to 08523300)

$29.99

$

Usually ships in 4-12 days

0

6

Gravely 120378

Nut, Hex 1/2-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 011227

Bearing, Needle 1.000 x 1.250 x .500
(Superseded to 05428100)

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 124920

Nut, Lock 5/16-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

9

Gravely 012868

Plate, Back
(Superseded to 08592500)

$42.99

$

Usually ships in 4-12 days

0

10

Gravely 022480

Plate, Drive
(Superseded to 08523400)

$249.99

$

Usually ships in 4-12 days

0

11

Gravely 022484

Assembly, Clutch Attachment
(Superseded to 68509000)

$775.99

$

Usually ships in 4-12 days

0

12

Gravely 012871

Spring, Compression 3/4 x 2200 Lb/in
(Superseded to 08354000)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 181618

Bolt, Hex 5/16-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

14

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 019918

Nut, Lock 5/8-24
(Superseded to 06526200)

$

$

Not available

16

Gravely 012867

Plate, Dog
(Superseded to 08592400)

$245.99

$

Usually ships in 4-12 days

0

17

Gravely 012870

Washer, Friction
(Superseded to 58501300)

$

$

Not available

18

Gravely 011983

Bearing, Thrust 1.012 x 1.750 x .125
(Superseded to 08587600)

$19.99

$

Usually ships in 4-12 days

0

19

Gravely 180173

Bolt, Hex 1/2-13 x 1.0
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

20

Gravely 024824

Stud, Quick Hitch
(Superseded to 08531300)

$

$

Not available

21

Gravely 005056

Gasket, Attachment
(Superseded to 08584900)

$3.99

$

In Stock, Qty 8

0
