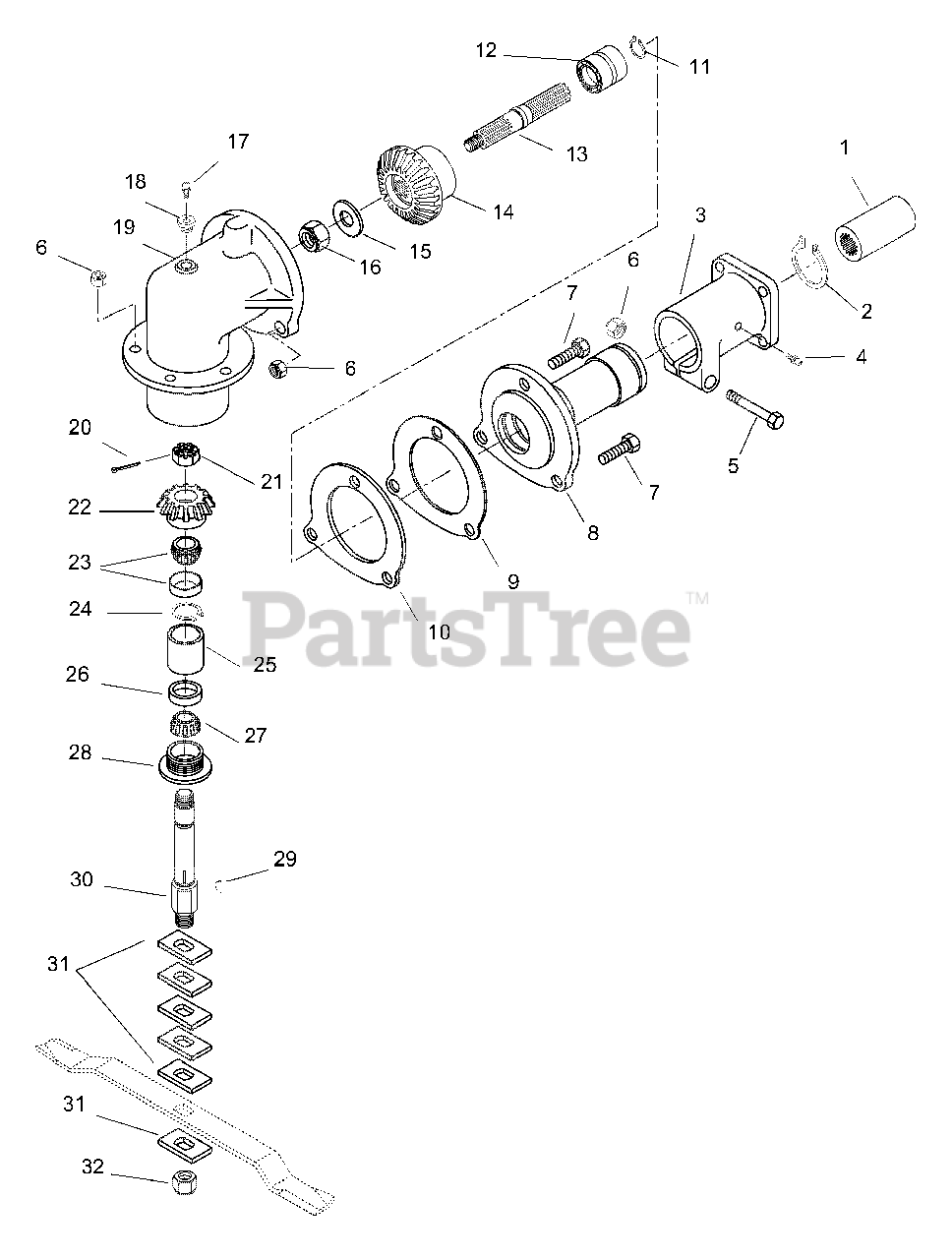

785007 - Gravely 30" Deck for 2-Wheel Tractor Short Mower Drive Kit (PN 78500600) Parts Diagram

30" Deck for 2-Wheel Tractor

Short Mower Drive Kit (PN 78500600) Parts Diagram

  • Title

1

Gravely 032118

Coupling
(Superseded to 08534900)

$129.99

$

Usually ships in 4-12 days

0

2

Gravely 032120

Ring-Retaining External 2.25 x .078
(Superseded to 05714800)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 032114

Casting-Swivel
(Superseded to 08534500)

$

$

Not available

4

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

5

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06540600

Nut-Lock Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 05970600

Bolt-Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 032115

Housing-Shaft
(Superseded to 08534600)

$

$

Not available

9

Gravely 032862

Shim .005
(Superseded to 08508100)

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 032863

Shim .020
(Superseded to 21511700)

$

$

Not available

11

Gravely 022242

Ring-Retaining: .937 Shaft
(Superseded to 05714100)

$

$

Not available

12

Gravely 014640

Assembly-Bearing: 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

13

Gravely 032117

Shaft-Drive
(Superseded to 08534800)

$

$

Not available

14

Gravely 08659700

Gear-Bevel

$385.99

$

Usually ships in 4-12 days

0

15

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 0657700

Nut-Lock .625-18 Hex Head Type N

$

$

Not available

17

Gravely 07012500

Fitting-Lube .125

$3.99

$

In Stock, only 2 left!

0

18

Gravely 144044

Bushing-Reducing Pipe .5
(Superseded to 07012200)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 032116

Housing-Gear
(Superseded to 08534700)

$

$

Not available

20

Gravely 06713400

Pin-Cotter .094 x 1.25

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06523900

Nut-Hex .625-18 Slotted

$3.49

$

In Stock, only 1 left!

0

22

Gravely 08659800

Pinion Bevel

$253.99

$

Usually ships in 4-12 days

0

23

Gravely 038199

Assembly-Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

24

Gravely 05714200

Ring-Retaining-Internal 2.210 x .062

$2.99

$

In Stock, Qty 5

0

25

Gravely 022521

Bushing- 1.75 x 1.94 x 1.94, Steel
(Superseded to 08525700)

$73.99

$

Usually ships in 4-12 days

0

26

Gravely 022524

Cup-Bearing 1.980 x .42
(Superseded to 05414600)

$

$

Not available

27

Gravely 022523

Cone-Bearing 29 mm x .58
(Superseded to 05414700)

$39.99

$

Usually ships in 4-12 days

0

28

Gravely 022522

Seal
(Superseded to 08525800)

$

$

Not available

29

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 022520

Shaft-Rotor
(Superseded to 08525600)

$293.99

$

In Stock, only 2 left!

0

31

Gravely 022526

Spacer-Cutting Height .25
(Superseded to 08525900)

$25.99

$

In Stock, only 2 left!

0

32

Gravely 017313

Nut-Lock .875-9 Heat Treated Thin
(Superseded to 06525600)

$9.49

$

Usually ships in 4-12 days

0

Gravely 78500600

Short Mower Drive Kit

$

$

Not available
