785007 - Gravely 30" Deck for 2-Wheel Tractor Mower Deck (PN 88500100) Parts Diagram

30" Deck for 2-Wheel Tractor

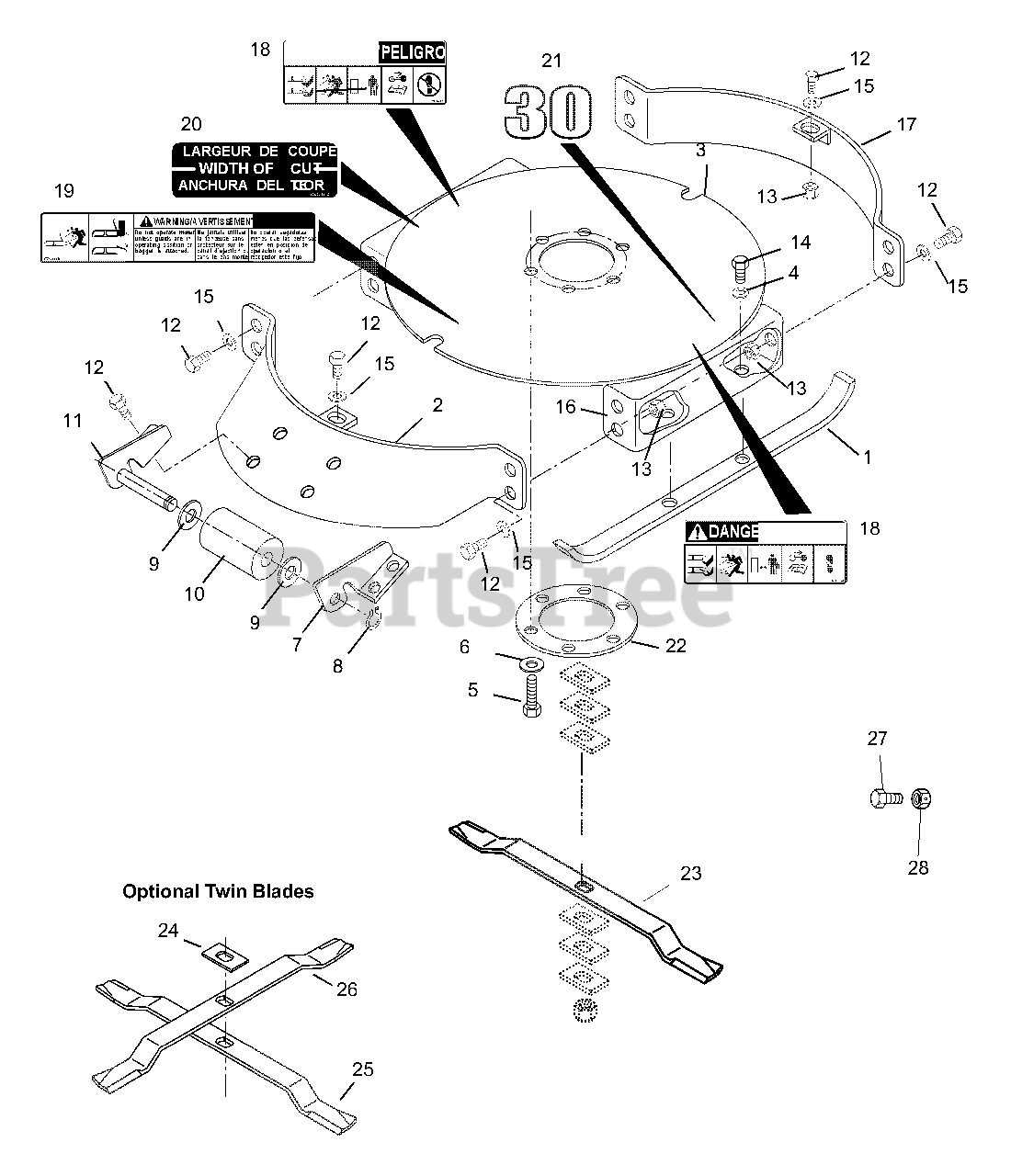

Mower Deck (PN 88500100) Parts Diagram

  • Title

1

Gravely 021492

Skid-Rotary Mower
(Superseded to 08518000)

$

$

Not available

2

Gravely 021388

Fender-Front 30" Mower
(Superseded to 08516700)

$

$

Not available

3

Gravely 010110

Deck-Weldment 30 in.
(Superseded to 68507400)

$

$

Not available

4

Gravely 06310500

Washer-Lock .31

$0.99

$

In Stock, only 3 left!

0

5

Gravely 05970600

Bolt, Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

Note: (On Rapid Units Only)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 021399

Bracket-Wheel L-H
(Superseded to 08517100)

$

$

Not available

8

Gravely 05708300

Ring-Retaining-External .625 x .042

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06430300

Washer-Flat-Stainless Steel .656 x 1.25 x .1

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 015351

Roller-Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 021400

Weldment-Bracket
(Superseded to 08517200)

$145.99

$

Usually ships in 4-12 days

0

12

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06530200

Nut-Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05936800

Bolt-Hex .31-24 x .625

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06435800

Washer, Flat .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 012855

Panel Skid
(Superseded to 08591800)

$82.99

$

In Stock, only 1 left!

0

17

Gravely 032448

Weldment-Rear Fender
(Superseded to 08535700)

$129.99

$

Usually ships in 4-12 days

0

18

Gravely 07731400

Decal, Mower Pan Head Danger

$21.99

$

In Stock, only 2 left!

0

19

Gravely 07742300

Decal, Warning

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 07852100

Decal, Width of Cut

$9.99

$

Usually ships in 4-12 days

0

21

Gravely 05232900

Decal, 30

$

$

Not available

22

Gravely 08691200

Counterweight, 30" Deck

$73.99

$

In Stock, only 1 left!

0

22

Gravely 08691200

Counterweight, 30" Deck

Note: (On Rapid Units Only)

$73.99

$

In Stock, only 1 left!

0

23

Gravely 08525900

Rotary Mower Blade .375"

$25.99

$

In Stock, only 2 left!

0

24

Gravely 08526000

Spacer-Cutting Height .125

$8.49

$

Usually ships in 4-12 days

0

25

Gravely 08526200

Blade, 30" Mower-Thin

$

$

Not available

26

Gravely 08526300

Blade, 30" Mower-Thin, Cross Slot

$

$

Not available

27

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

Note: (On Rapid Units Only)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06529700

Nut, Locking, Center .25-20
(Superseded to 06500812)

Note: (On Rapid Units Only)

$0.99

$

In Stock, Qty 20+

0
