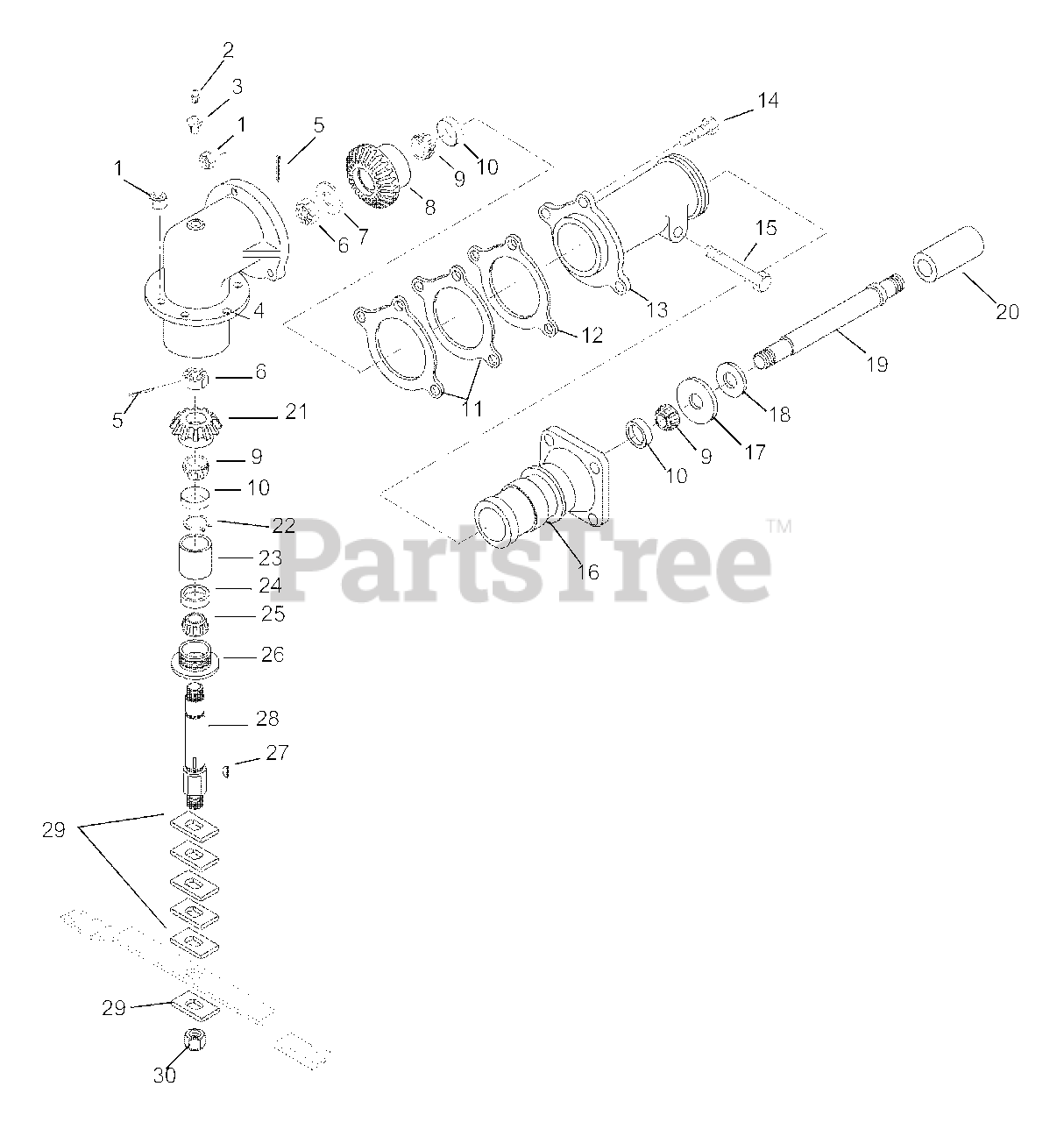

785007 - Gravely 30" Deck for 2-Wheel Tractor Long Mower Drive Kit (PN 78500700) Parts Diagram

30" Deck for 2-Wheel Tractor

Long Mower Drive Kit (PN 78500700) Parts Diagram

  • Title

1

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07012500

Fitting-Lube .125

$3.99

$

In Stock, only 2 left!

0

3

Gravely 144044

Bushing-Reducing Pipe .5
(Superseded to 07012200)

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 032116

Housing-Gear
(Superseded to 08534700)

$

$

Not available

5

Gravely 06713400

Pin-Cotter .094 x 1.25

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 06523900

Nut-Hex-Slotted .625-18

$3.49

$

In Stock, only 1 left!

0

7

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 08659700

Gear-Bevel

$385.99

$

Usually ships in 4-12 days

0

9

Gravely 20035500

Cone-Roller Bearing

$

$

Not available

10

Gravely 20035400

Cup-Roller Bearing

$

$

Not available

11

Gravely 21511700

Shim .020

$

$

Not available

12

Gravely 032862

Shim .005
(Superseded to 08508100)

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 08525400

Casting-Swivel

$

$

Not available

14

Gravely 05936000

Bolt-Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 022515

Housing-Shaft
(Superseded to 08525500)

$

$

Not available

17

Gravely 035034

Washer-Flat-Steel 1.006 x 2.247 x .060
(Superseded to 06427500)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 05421600

Washer-Hardened-Thrust 1.00 x 1.55 x .03
(Superseded to 06435300)

$4.99

$

In Stock, only 2 left!

0

19

Gravely 035036

Shaft-Drive
(Superseded to 08537900)

$180.99

$

Usually ships in 4-12 days

0

20

Gravely 035035

Coupling
(Superseded to 08537800)

Note: (Rapid units must use coupler sleave, part number 08691300, from kit 78510700.)

$129.99

$

Usually ships in 4-12 days

0

21

Gravely 051328

Pinion-Bevel
(Superseded to 08659800)

$253.99

$

Usually ships in 4-12 days

0

22

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

23

Gravely 022521

Bushing 1.75 x 1.94 x 1.94
(Superseded to 08525700)

$73.99

$

Usually ships in 4-12 days

0

24

Gravely 022524

Bearing-Cup 1.980 x .420
(Superseded to 05414600)

$

$

Not available

25

Gravely 022523

Bearing-Cone 29mm x .58
(Superseded to 05414700)

$39.99

$

Usually ships in 4-12 days

0

26

Gravely 022522

Seal
(Superseded to 08525800)

$

$

Not available

27

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 022520

Shaft-Rotor
(Superseded to 08525600)

$293.99

$

In Stock, only 2 left!

0

29

Gravely 022526

Spacer-Cutting Height .25
(Superseded to 08525900)

$25.99

$

In Stock, only 2 left!

0

30

Gravely 017313

Nut-Locking .875-9
(Superseded to 06525600)

$9.49

$

Usually ships in 4-12 days

0

Gravely 78500700

Long Mower Drive Kit

$2241.99

$

Usually ships in 4-12 days

0
