78500 - Toro DFS Vac Collection System for 100 Series Z Master (SN: 240000001 - 240999999) (2004) IMPELLER AND SCROLL ASSEMBLY Parts Diagram

DFS Vac Collection System for 100 Series Z Master

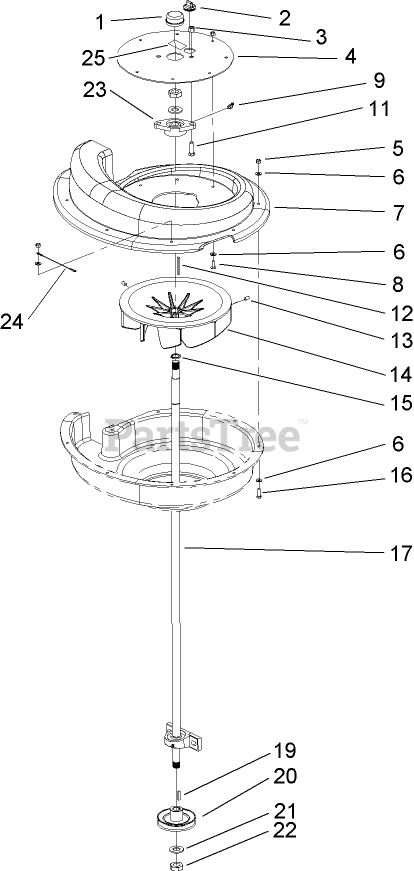

IMPELLER AND SCROLL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-7147

CAP-GREASE

$31.99

$

Usually ships in 3-6 days

0

2

Toro 105-2438

PLUG

$16.99

$

Usually ships in 3-6 days

0

3

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 106-7128-03

COVER-SCROLL

$80.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 106-8950

SCROLL-TOP

$240.99

$

Usually ships in 3-6 days

0

8

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

9

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 2 left!

0

11

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 105-9716

KEY-SQUARE

$7.99

$

In Stock, only 1 left!

0

13

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

14

Toro 106-8951

FAN-BALANCING

$

$

Not available

15

Toro 32151-33

RING-RETAINING, Ext

$3.49

$

In Stock, only 2 left!

0

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 106-7127

Shaft-Fan

$

$

Not available

19

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 3 left!

0

20

Toro 106-8961

Pulley-V

$343.99

$

Usually ships in 3-6 days

0

21

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

22

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 6

0

23

Toro 106-7126

BEARING-FLANGE

$84.99

$

Usually ships in 3-6 days

0

24

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

25

Toro 107-1613

Decal-Grease

$6.49

$

Usually ships in 3-6 days

0
